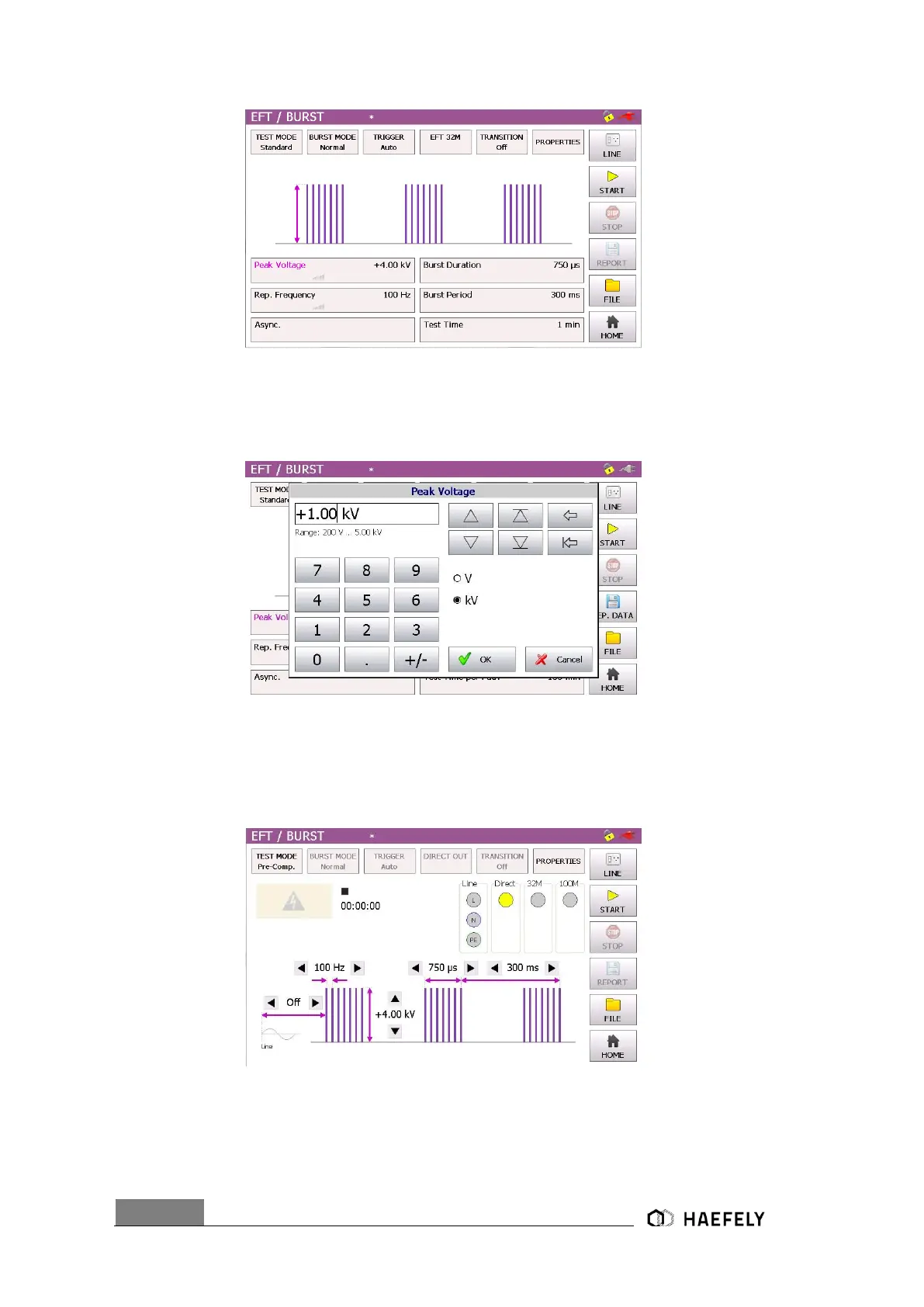

Figure 11-1: EFT/BURST Standard mode
By pressing at each particular value, a new parameter (Figure 11-1: EFT/BURST Standard mode)
can be entered. Then confirming with “OK” and the parameter will be written in the standard test
mode. In Addition it can be immediately selected between kV and V.
Figure 11-2: EFT/BURST peak voltage configuration
The following graphic represents the pre-compliance mode. In comparison with the standard
menu, every command gets displayed the entire visual description of the function is described
through purple bows. Main advantage of the pre- compliance mode is that the parameter can be
changed while the test is operating.
Figure 11-3: EFT / BURST pre-compliance mode
