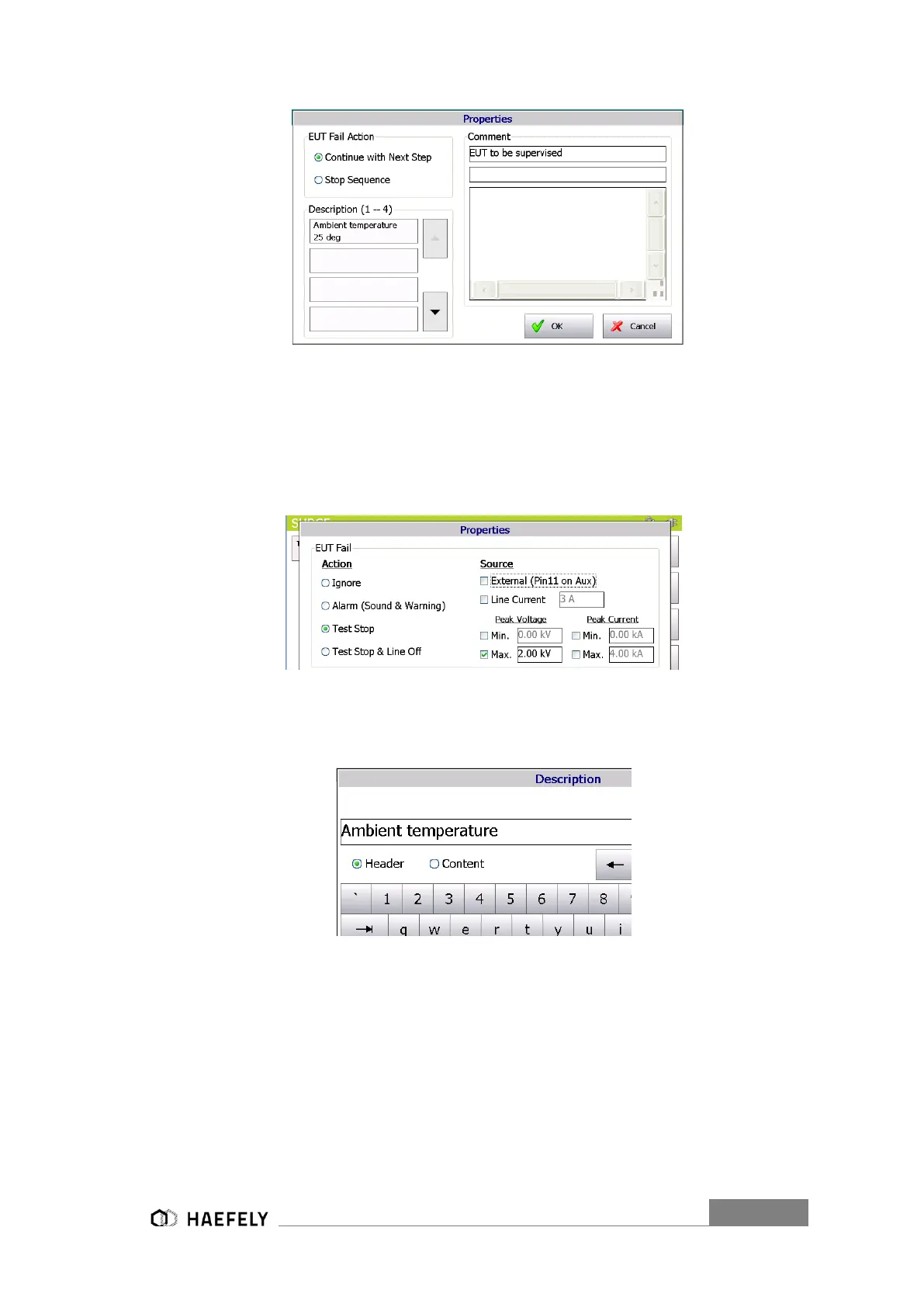

Figure 13-2 Properties Sequence
The “EUT fail Action” is linked to the menu of the properties setting in the particular impulse menu.
There it can be for example the SURGE menu (when SURGE selected, could be also Ring Wave,
Telecom Wave, or any other impulse).
The next graphic displays the SURGE properties menu. EUT causes the action stop when peak
voltage > 2kV.
In the Figure 13-3: Header in description menu of Sequence and Figure 12-4
description and comments can be saved for a sequence file as well as Report data
flies. Up to 16 pairs of description (header / content) can be saved.
Figure 13-3: Header in description menu of Sequence
