Haefely AXOS - Troubleshooting Specific Error Messages

Troubleshooting
81

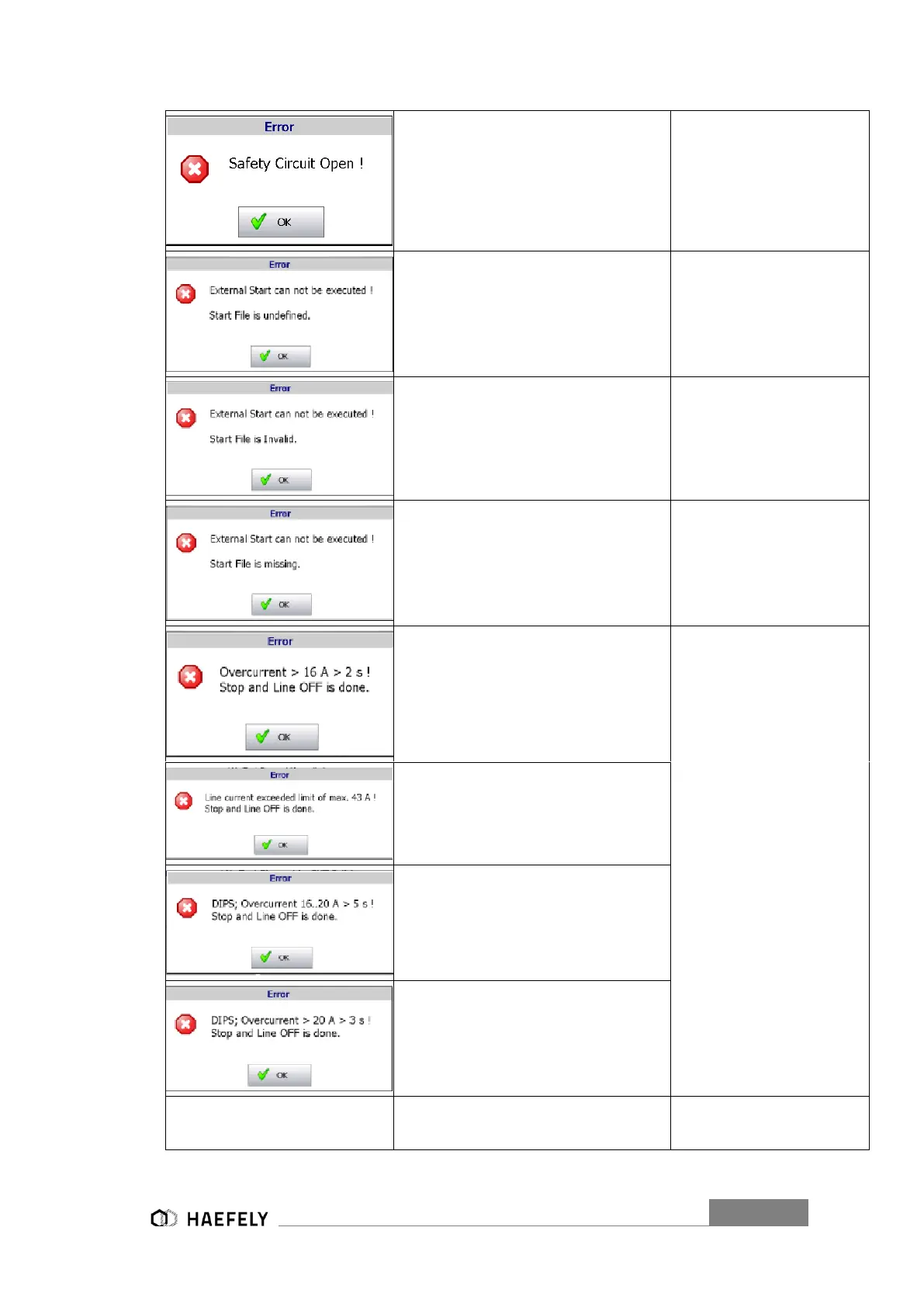

tried to start a Test with open Safety Circuit
close Safety Circuit and
Start Test again
no file defined in Setup Start File
define a Start File
no valid file
define a valid Start File
no valid file
define a valid Start File
EUT requires more than 16 A support
current, may EUT defect, short circuit
EUT
-check Inominal of EUT
(max. support with
AXOS5 16A)
-control EUT
independently, short
circuit might occurred,
-External CDN
necessary, if higher I
nominal required
EUT requires more than 16 A support
current, may EUT defect, short circuit
EUT, protection of AXOS
8
EUT requires more than 16 A support
current, may EUT defect, short circuit
EUT
EUT requires more than 16 A support
current, may EUT defect, short circuit
EUT
1 x beep and automatic shut
down
at system startup any of internal
supply voltages (not 24V) are out of
range
send AXOS
8
for repair
