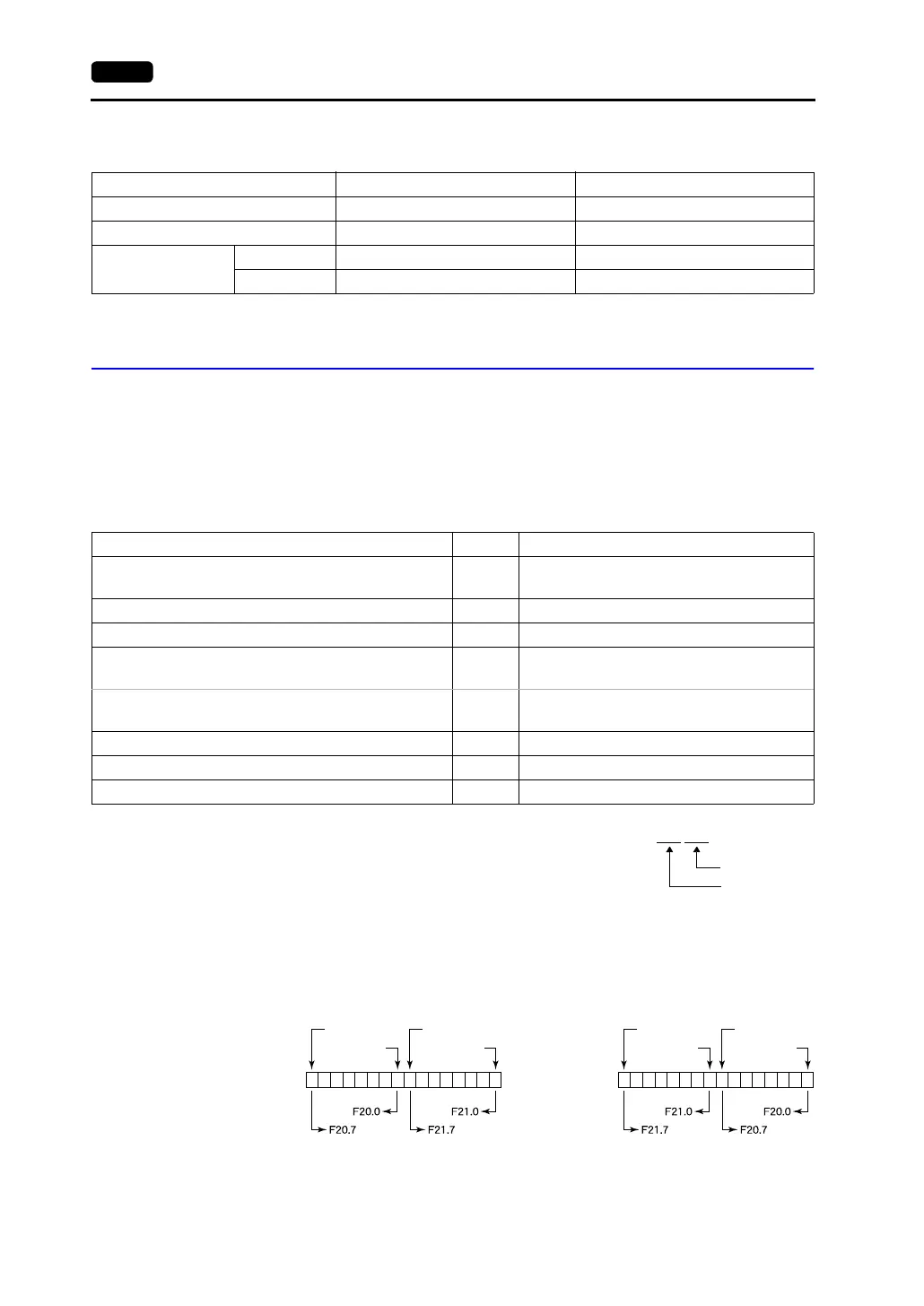

5-92 15. SIEMENS PLC
TI500/505, TI500/505 V4
Available Memory
The available memory setting range varies depending on the PLC model. Be sure to set within the
range available with the PLC to be used. Use [TYPE] when assigning the indirect memory for macro
programs.
S5, S5 V4, S7
*1 The assigned memory is indicated when editing the
screen as shown on the right.
* Notes on V4 (or GD-80) data conversion
• When converting data of V4 (or GD-80) into the V7 data, [S5 V4] is automatically
selected for the PLC type.
• With V4 (or GD-80), the order of bit strings of I (input relay), Q (output relay) and F
(internal relay) is byte-reversed. Please take note of this.
Item Setting on PLC V7 Comm. Parameter Setting
Baud rate 19200 bps 19200 bps
Parity − None (fixed)
Transmission code
Data length − 8 (fixed)
Stop bit − 1 (fixed)
Memory TYPE Remarks
DB (data register) 0 Use memory address DB1 and later for S7,
or DB3 or later for S5.
I (input relay) 1 IW as word device, read only
Q (output relay) 2 QW as word device, read only
F (flag/internal relay)
*1
3 FW as word device, read only, only in S5
series
M (flag/internal relay)
*1
3 MW as word device, read only, only in S7
series
T (timer/current value) 4 Read only
C (counter/current value) 5 Read only
AS (absolute address) 6 Unavailable with the S7 series
Example: DB003 000
Address
Block number
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
F0000210
F0000217
F0000200
F0000207
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
F0000210
F0000217
F0000200
F0000207
Memory setting of V4
(or GD-80)
Memory to be
accessed to PLC by
V4 (or GD-80)
Memory setting of V7
Memory to be accessed
to PLC by V7
