10. KOYO PLC 5-69
Connection to PLCs
Wiring

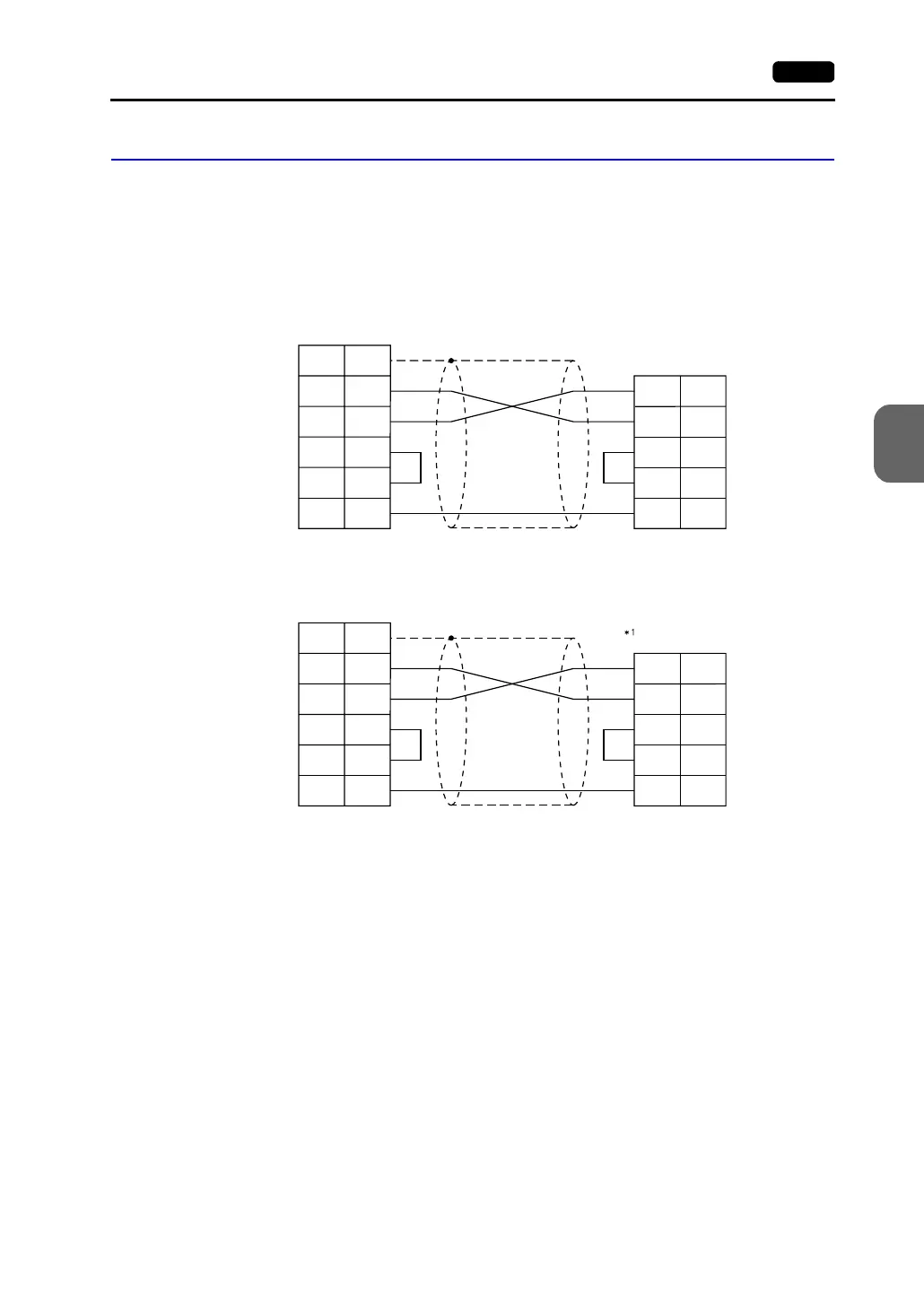

Wiring diagrams with the PLC are shown below.
RS-232C
Wiring Diagram 1
Wiring Diagram 2
V7 (CN1)
D-sub 25pin(Male: )
FG
SD
RD
RS
CS
1
2
3
4
5
SD
RD
PLC
D-sub 25pin(Male: )
RS
CS
SG
2
3
4
5
7
SG 7
* Use shielded twist-pair cables.
D-sub 25-pin (male)
D-sub 25-pin (male)
V7 (CN1)
D-sub 25pin(Male: )
FG
SD
RD
RS
CS
1
2
3
4
5
TXD
RXD
PLC
D-sub 15pin(Male: )
RTS
CTS
0V
2
3
4
5
7
SG 7
* Use shielded twist-pair cables.
*1 High-density D-sub 15-pin
D-sub 25-pin (male)
D-sub 15-pin (male)
