Hakko Electronics Monitouch V7 - Notes on Wiring

1-34 13. 10BASE-T (LAN)
Notes on Wiring

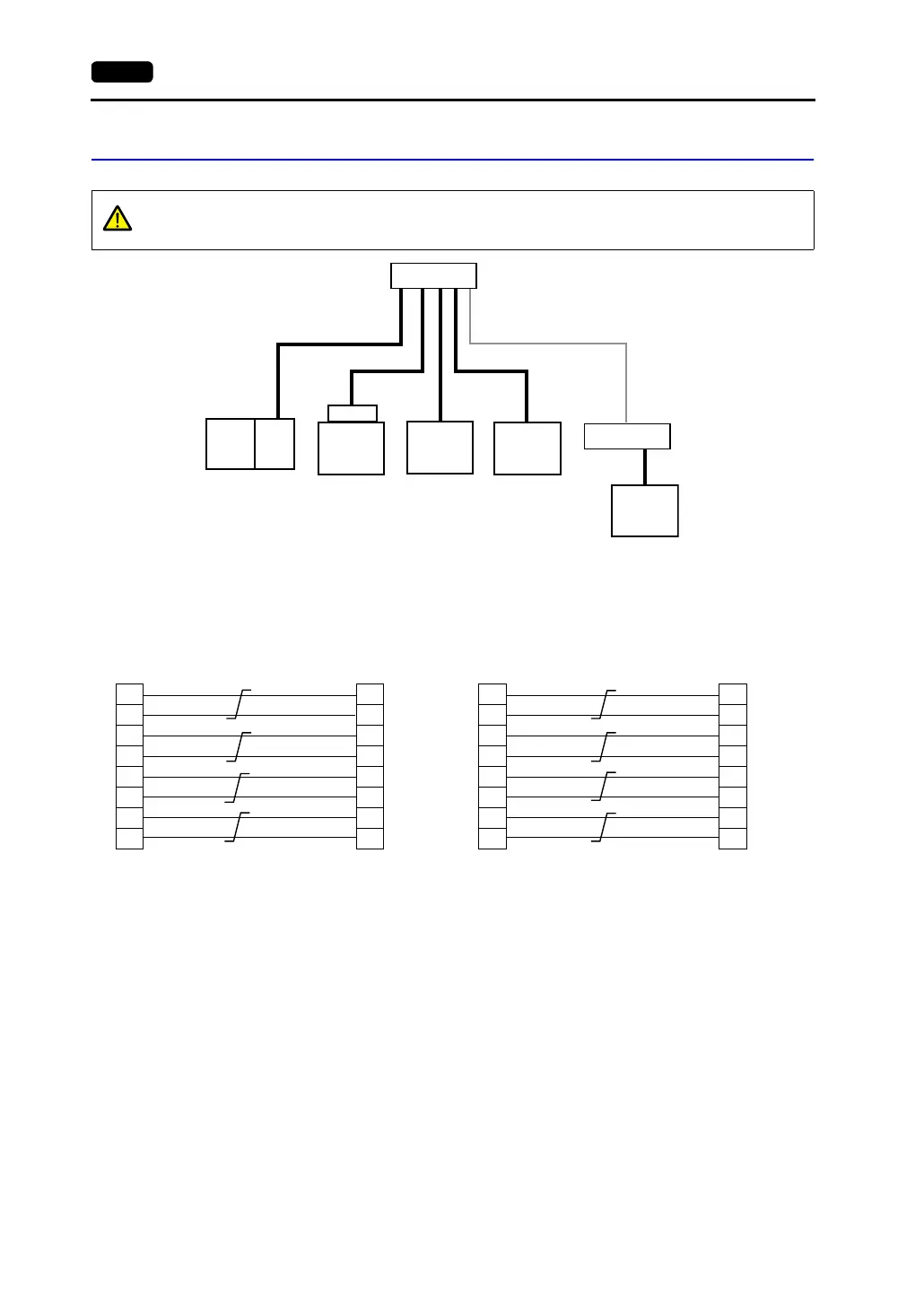

Cable Connection Diagram
Notes on Cables
Use the following recommended cable.
Recommended cable (10BASE-T)
Type: Twist-pair cable, category 5
CAUTION
When using the LAN port, keep the LAN cable away from the power supply
cable as much as possible.
CU-03
V7iV7
PLC
HUB
HUB
UTP cable
Straight or cross cable
(For more information, refer the HUB specifications.)
Node
Node
Distance between the node and the HUB: 100 m maximum
Maximum network nodes: 100 sets
UTP cable
Straight
Ethernet
unit
Straight cable (with HUB) Cross cable (without HUB)
10BASE-T
RJ-45 8Pin
1
2
3
6
4
5
7
8
1
2
3
6
4
5
7
8
10BASE-T
RJ-45 8Pin
1
2
3
6
4
5
7
8
3
6
1
2
5
4
8
7
10BASE-T
RJ-45 8Pin
10BASE-T
RJ-45 8Pin
* Unshielded twist-pair cable * Unshielded twist-pair cable
