13. 10BASE-T (LAN)
The connector for 10BASE-T is provided as standard on V7i (high-performance). To
connect Ethernet with V7 (standard), use the communication unit “CU-03.” If CU-03 is
attached to V7i, it has priority over the built-in 10BASE-T; 10BASE-T cannot be used.

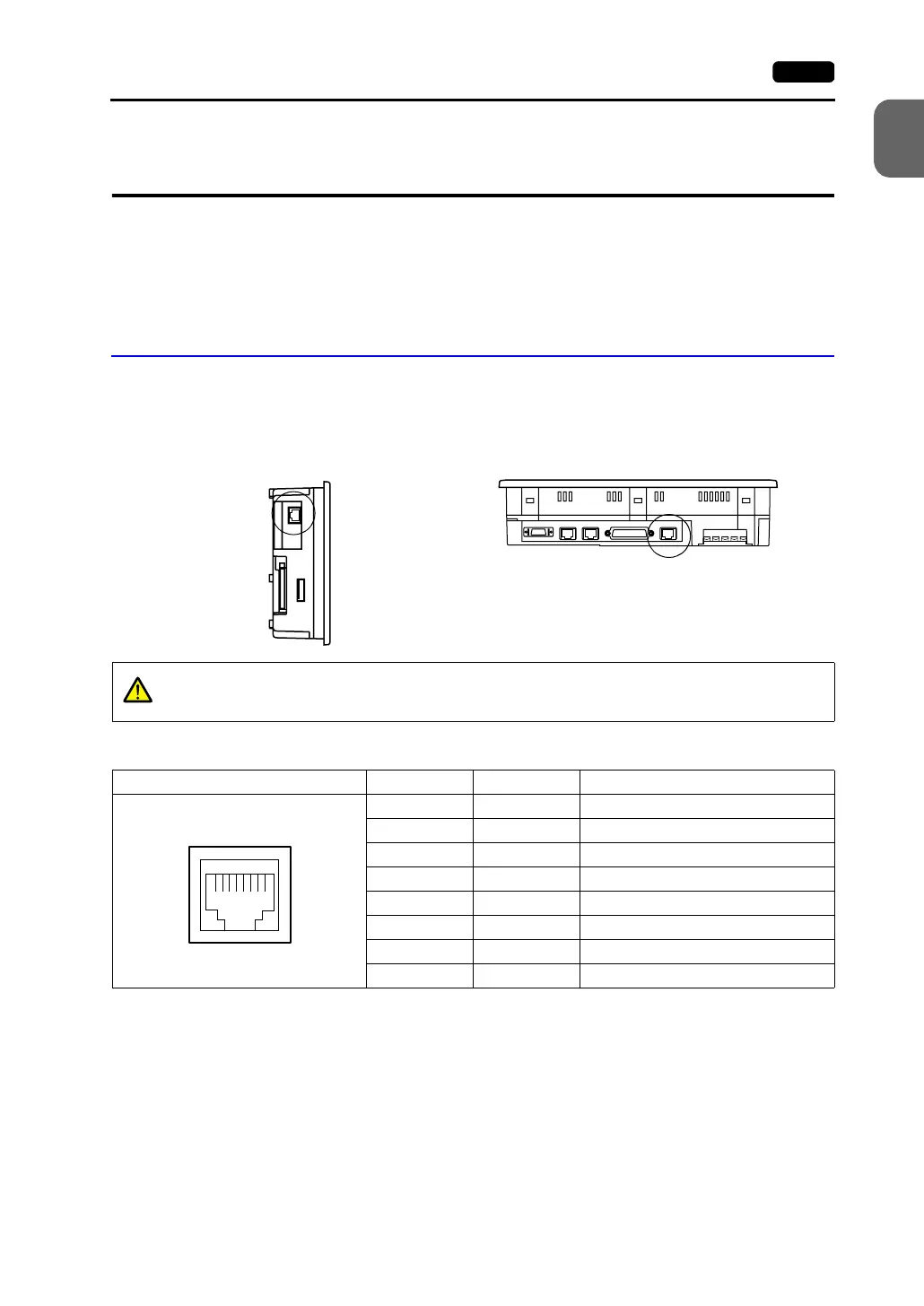

10BASE-T Connector
• Use this connector for Ethernet connection.
- For V708i: - For V710i/V712i:
• The LAN (10BASE-T) pins correspond to signals as given below.
Side View Bottom View
CAUTION
MJ1/2 and LAN connector are 8-pin modular jacks. Check the name plate and
insert the connector in the correct position.
LAN Pin No. Signal Name Contents
1 TX+ Ethernet send signal (+)
2 TX- Ethernet send signal (−)
3 RX+ Ethernet receive signal (+)
4 NC Not used
5 NC Not used
6RX− Ethernet receive signal (−)
7 NC Not used
8 NC Not used
12345678
