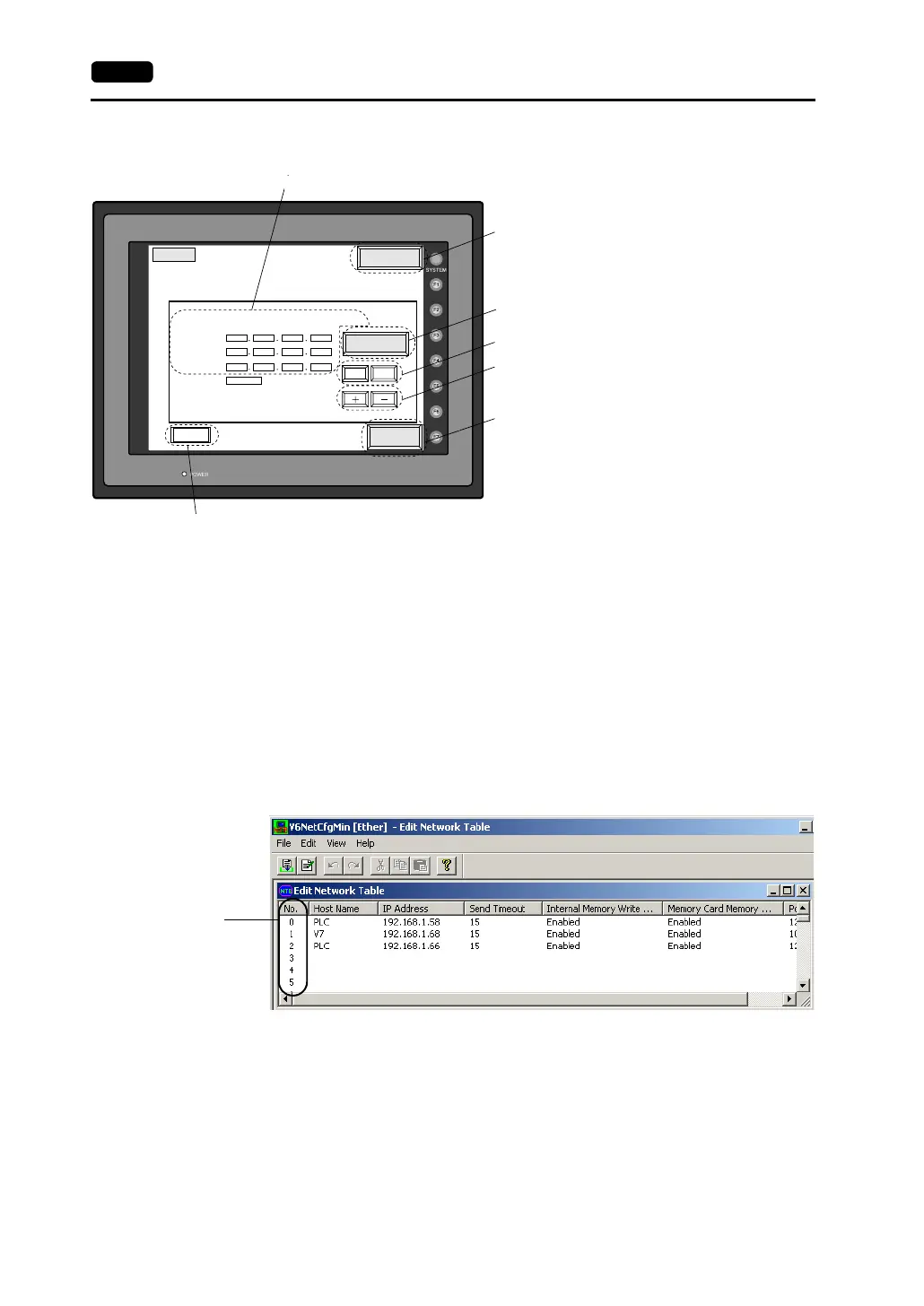

2-26 1. Operation of V7 Main Menu
Connection with CU-03 on V7
1. Select either [10BASE-T] or [AUI] for the connecting method.
2. Set the IP address. (If necessary, set the default gateway and subnet mask.)
3. Press the [Setting Finished] switch. The settings are determined.
4. The Main Menu screen is displayed again.
• Rotary Switch and Network Table
Register IP addresses and other information for the V series, PLCs or computers that
should be included for Ethernet communications on the V-SFT editor. ([System Setting]
→ [Network Table Setting] → [Ethernet] → [Edit Network Table]) Set the network table
number with the rotary switch on the communication interface unit CU-03.
00 0
0
0
00
10000
000
10BASE-T
0
0
<- ->
Return
Ethernet
It is not used when the gate way or the sub-mask is zero.
IP Address:
Gate Way:
Sub-mask:
Port No.
Connect
Setting
Finished
Cursor switches
[Increment/Decrement] switch for the value
in the cursor position
Determines the setting such as IP address,
and moves back to the Main Menu screen.
Used for checking the 10BASE-T interface.
Normal: Connect
Error: Disconnect
Moves back to the Main Menu screen.
IP address, gateway and sub-mask settings
Selects [10BASE-T] or [AUI].
Port number to be set
with the rotary switch on
the communication
interface unit CU-03
To Next Page
