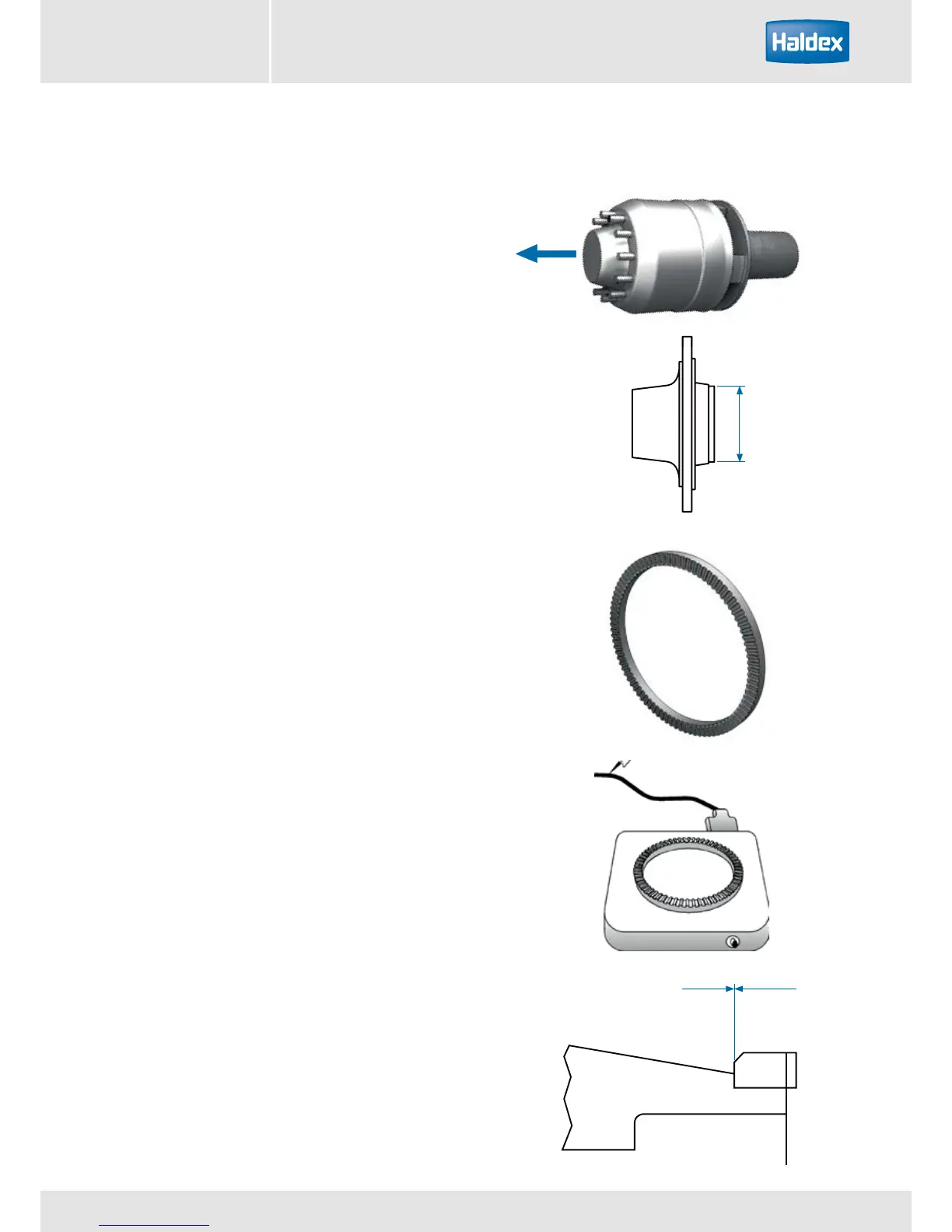

Sensor installation
Stripping of axle
See individual axle manufacturers information.
Remove hub and drum assembly. Refer to individual
ABS axle layout for details of the machine location area
‘A’ on hub ‘B’.
Exciter (solid type)
Available in two sizes to suit differing diameters of
wheel. Establish correct exciter teeth in relation to tyre
size refer to GS0006.
100 tooth exciter - dynamic effective rolling radius
(rdyn) = 442 to 645 mm.
80 tooth exciter - dynamic effective rolling radius
(rdyn) = 357 to 522 mm.
Heat exciter uniformly to required temperature.
Fit to hub and ensure that it is fully seated on the
location area machined on the hub ‘B’. Dimension ‘C’
to be zero gap 0 to 360 degrees.
