Haldex EB+ Gen3 - Piping Layout - 2 M Suspension; 2 M, Levelling Valve

EB+ Gen3Installation guide
532013 Innovative Vehicle Solutions
Item Description Notes
1 Air suspension supply Air supplied from TrCM
+
, TEM
®
or separate pressure protection valve
2 Air suspension reservoir
3 Drain valve
4 Pipe filter
5 Levelling valve
6 Suspension bellows
7 Test point
8 EB+ Gen3 assembly
9 Test point simulator

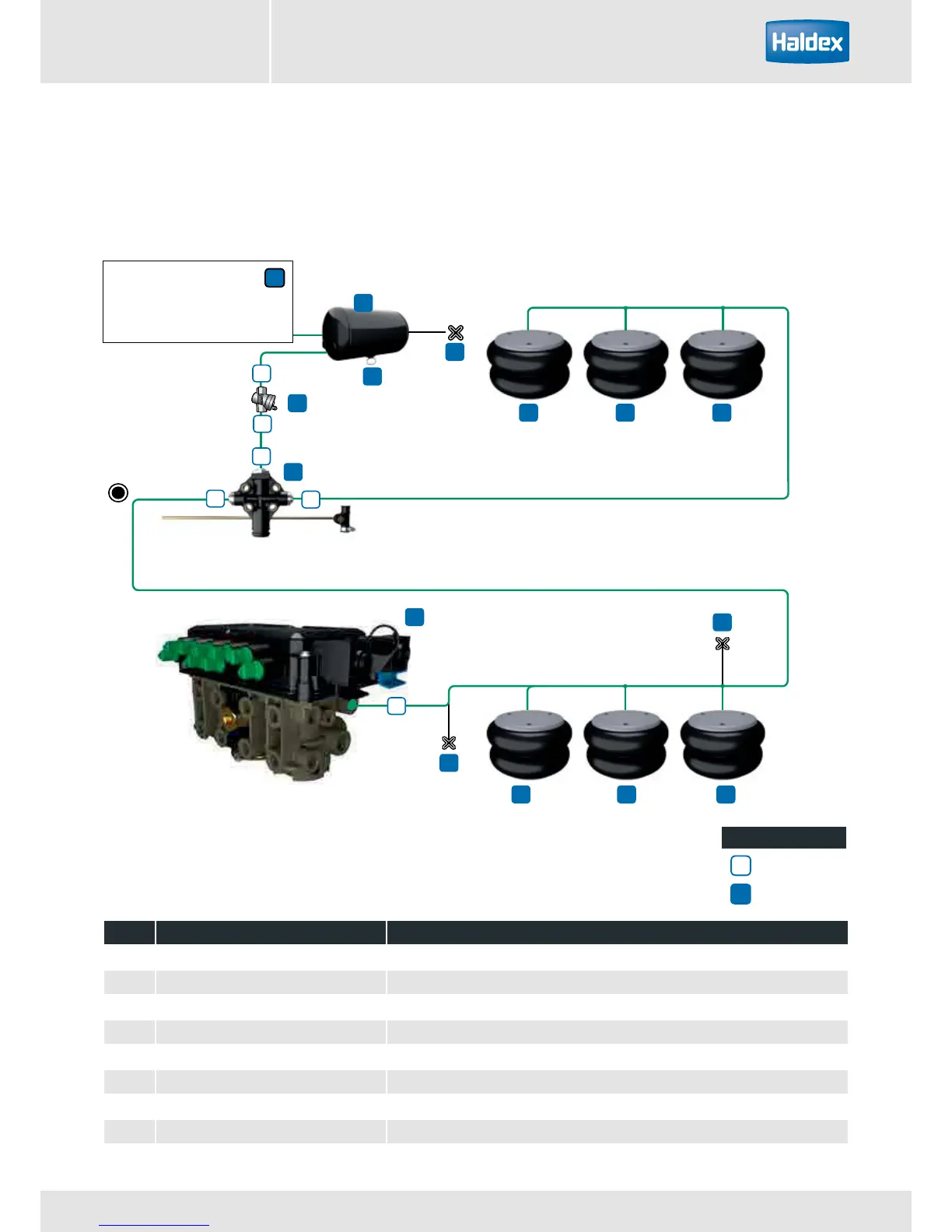

Piping layout – 2M suspension
1
Air supplied from:
TrCM
+
or
TEM
®
or
separate pressure protection valve
7
9
3
2
6 6 6
6 6 6
21
22
2
1
1
41
8
7
4
5
2M, levelling valve
Key
1
Port number
1
Components
Note:
EB+ Gen3 should be supplied with clean / dry air.
