EB+ Gen3Installation guide
792013 Innovative Vehicle Solutions
ECU
identification
Tags removed
1 2 3 4 A B P 5
Component
S1A Sensor 1A
S1B Sensor 1B
S2A Sensor 2A
S2B Sensor 2B
ECU
identification
Tags removed
1 2 3 4 A B P 5
Component
AUX 1 COLAS
®
AUX 2 ILAS
®
-E
AUX 3 Warning lamp
AUX 4 LWS
AUX 5 Stability
Example
sensor 1B
Black
front case
Blue
front case
Example
COLAS
®
Sensor connector

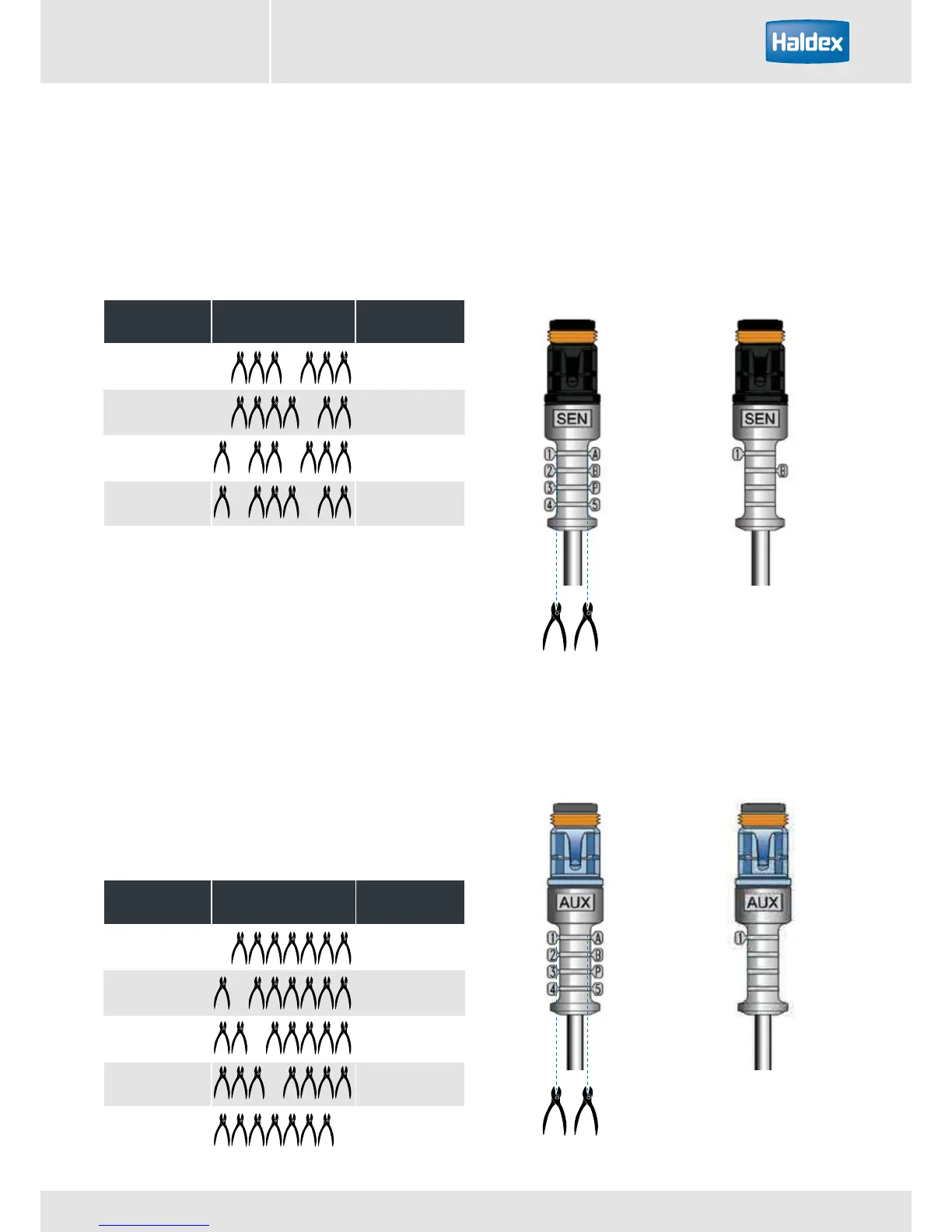

Identification tags are incorporated on either side of
the sensor / ECU connector.
These must be removed to identify the appropriate
sensor before connecting into the ECU.
Auxiliary connector
Identification tags are incorporated on either side of
the auxiliary connector. These must be removed to
identify the appropriate usage before connecting into
the ECU.
