EB+ Gen3 Installation guide
14 Innovative Vehicle Solutions 2013
Port Description Notes
1 Reservoir port M22 x 1.5 mm
2 Delivery ports M16 x 1.5 mm
3 Exhaust port -
4 Control port M16 x 1.5 mm
41 Air suspension port M16 x 1.5 mm

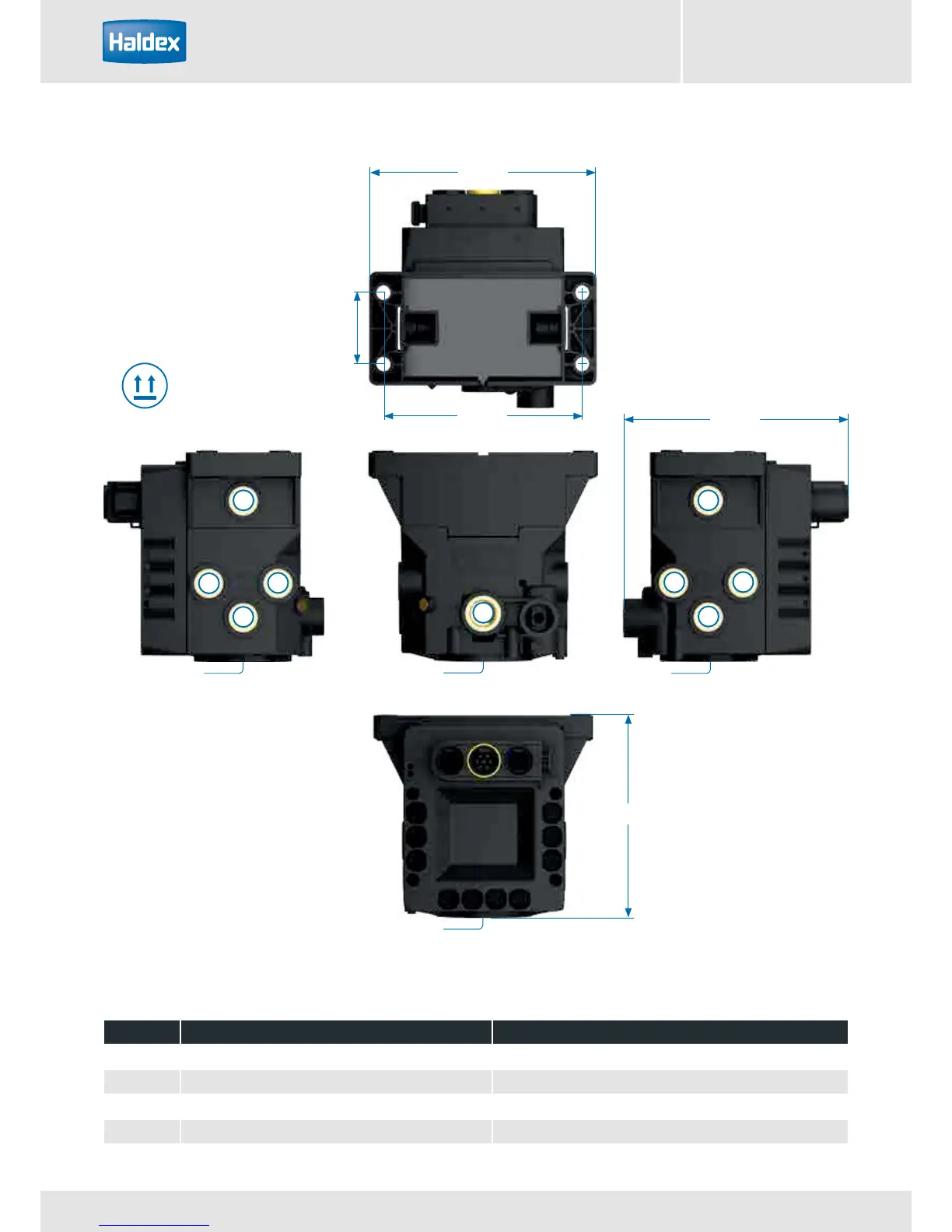

Slave assembly
185 mm
185 mm
178 mm
Port 3
Port 3
Port 3
Port 3
162 mm
58 mm
This way up
4
2
2
2
1
41
2
2
2
Approximate mass of assembly: 3.2 Kg
Note:
The EB+ Gen3 Slave assembly (ECU &
valve) is only supplied as one complete
unit that cannot / should not be
separated.
