EB+ Gen3 Installation guide
114 Innovative Vehicle Solutions 2013
D
E
FF
J
Sensor

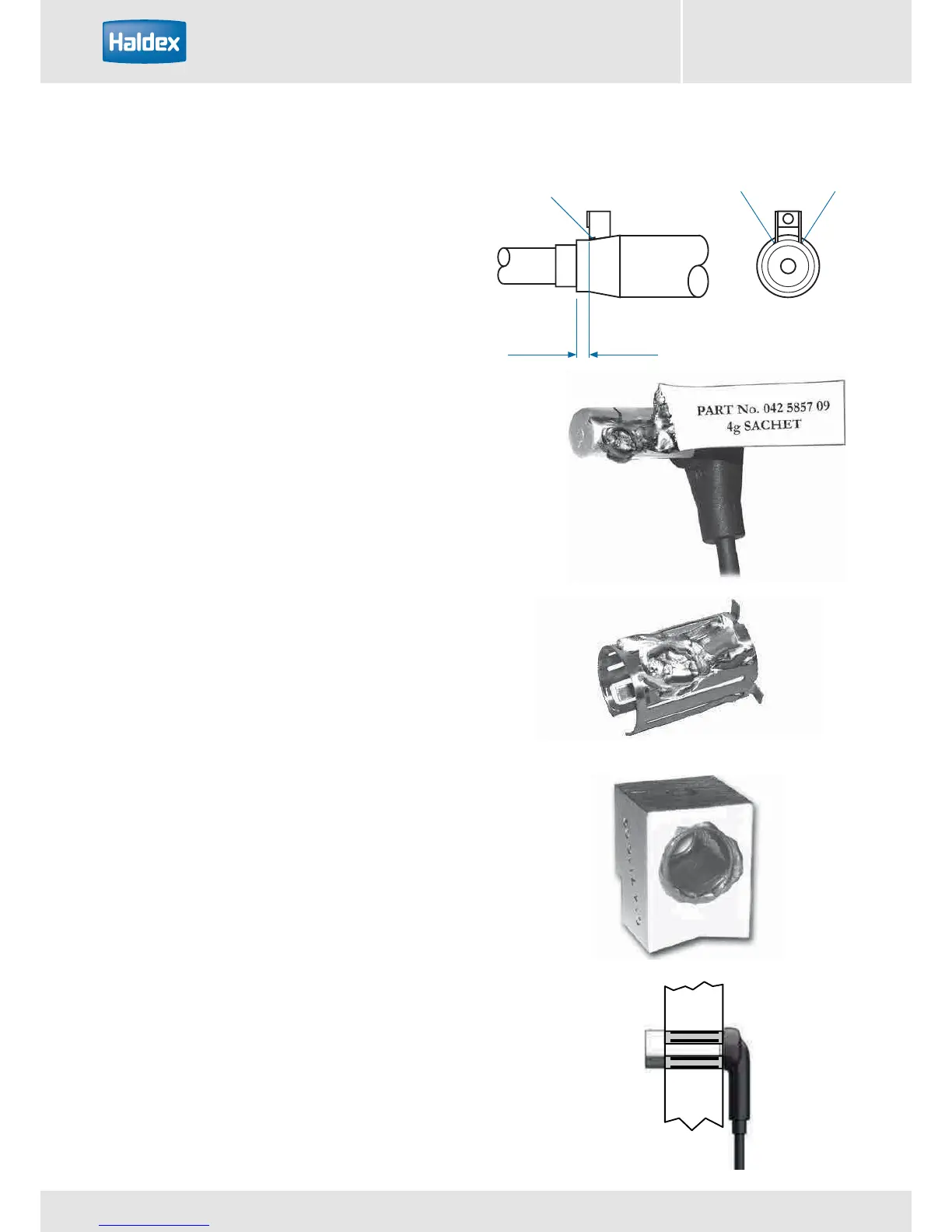

Position sensor bracket as detailed on the ABS axle
layout, reference dimension ‘D’.
Tack weld bracket ‘E’ first. Recheck for position and
squareness and complete weld ‘F’.
With grease provided liberally coat sensor ‘l’ steel
casing and bore of bracket ‘G’. Push the retaining clip
‘H’ fully home into the sensor bracket housing and
insert sensor through the retaining clip pushing it firmly
into place until the sensor abuts against the back face
of the bracket housing ‘J’.
With a grease based corrosion inhibitor, recommended
type - Molykote Cu 7439 Plus (Dow Corning) or from
the 4g sachet, Haldex part number 042 5857 09,
liberally coat sensor ‘l’ steel casing, retaining clip ‘H’
and bore of bracket / housing ‘G’.
Push the retaining clip ‘H’ fully home into the sensor
bracket housing and insert sensor through the
retaining clip pushing it firmly into place until the
sensor abuts the back face of the bracket / housing ‘J’.
I
H
G
