Haldex EB+ Gen3 - Iso 12098; Iso 1185 (24 N) (Pwr-B)

EB+ Gen3 Installation guide
74 Innovative Vehicle Solutions 2013
Trailer chassis
ISO 12098 / ISO 1185 (24N) (PWR-B)

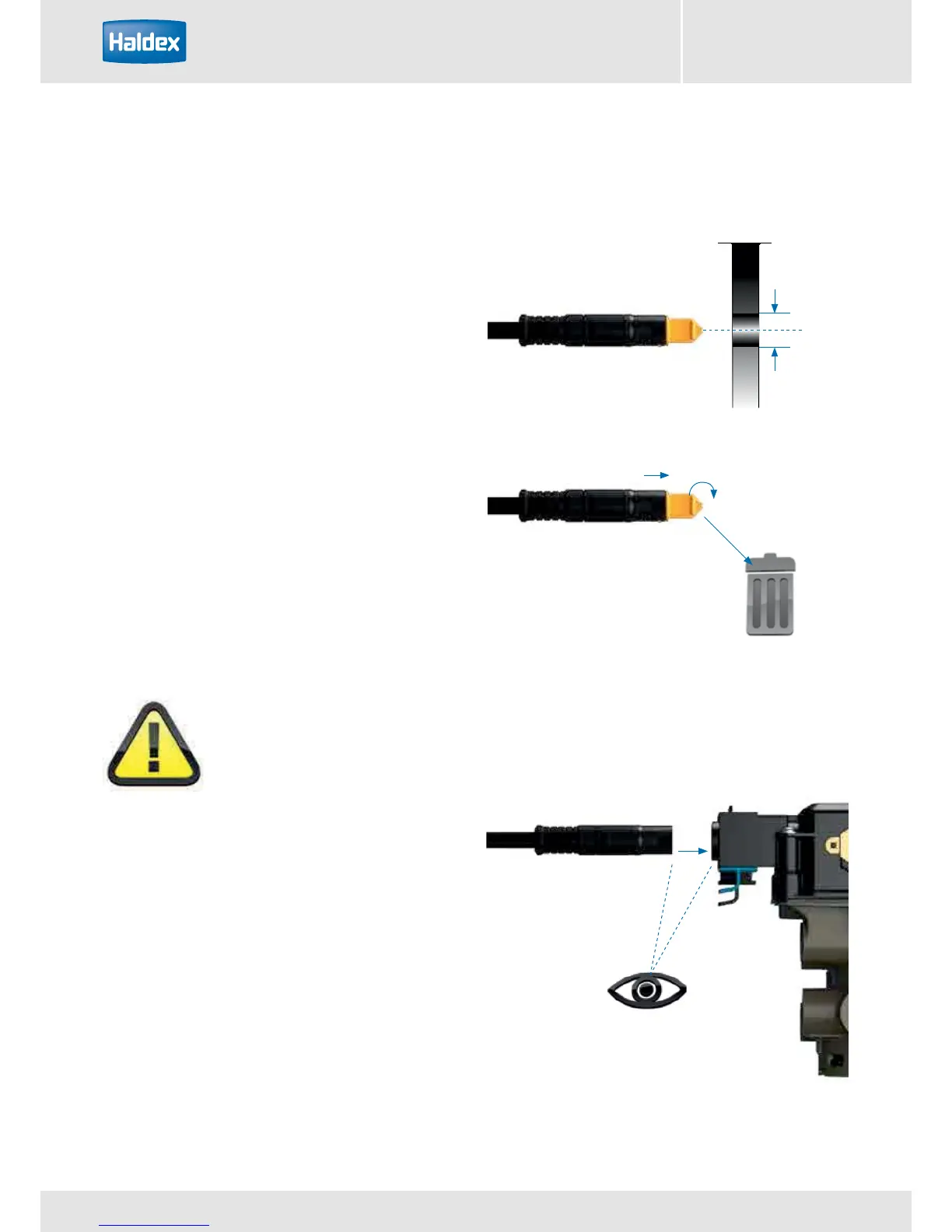

Connections: make sure that all connections (socket
and plug) are clean and dry before assembly.
Feed all connectors through the chassis with protective
cap in place to avoid connector sockets being
contaminated.
ø20.0
min
1
2
3
Remove protective cap from end of connector before
connecting into the ECU.
