Haldex EB+ Gen3 - ISO 7638 5-Pin; ISO 7638 7-Pin; ISO 7638 Socket Assembly

EB+ Gen3Installation guide
632013 Innovative Vehicle Solutions
ISO 7638 5-pin
Pin no Description Notes
1 Red (RD) 4 mm
2
B+ batt
2 Black (BK) 1.5 mm
2
B+ ign
3 Yellow (YE) 1.5 mm
2
B- earth
4 Brown (BN) 4 mm
2
B- earth
5 White (W) 1.5 mm
2
Lamp
Pin no Description Notes
1 Red (RD) 4 mm
2
B+ batt
2 Black (BK) 1.5 mm
2
B+ ign
3 Yellow (YE) 1.5 mm
2
B- earth
4 Brown (BN) 4 mm
2
B- earth
5 White (W) 1.5 mm
2
Lamp
6 White / green (W / GN) 1.5 mm
2
CAN hi
7 White / brown (W / BN) 1.5 mm
2
CAN lo

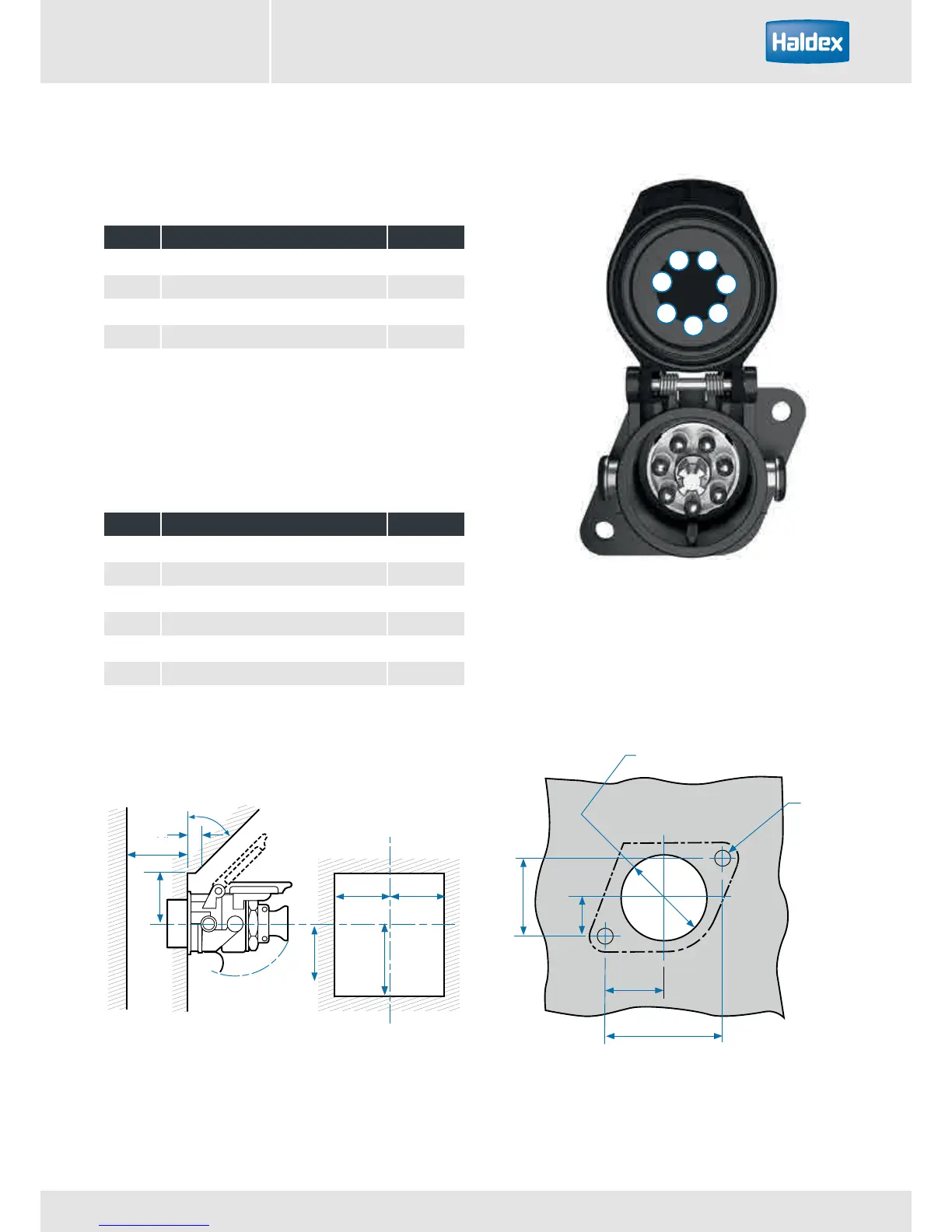

ISO 7638 socket assembly
ISO 7638 7-pin
10 Max
120 Min
45 º
60 Max
55 Min
60 Min 60 Min
80 Min
50.30 48.70
25.15 24.25
74.90
74.30
37.45
37.15
9.0
8.5
57.0
55.0
ø
ø
max
min
max
min
minmin
min
Clearance dimensions Socket mounting dimensions
Pin detail and identification key location
1 2
7
3
6
5
4
