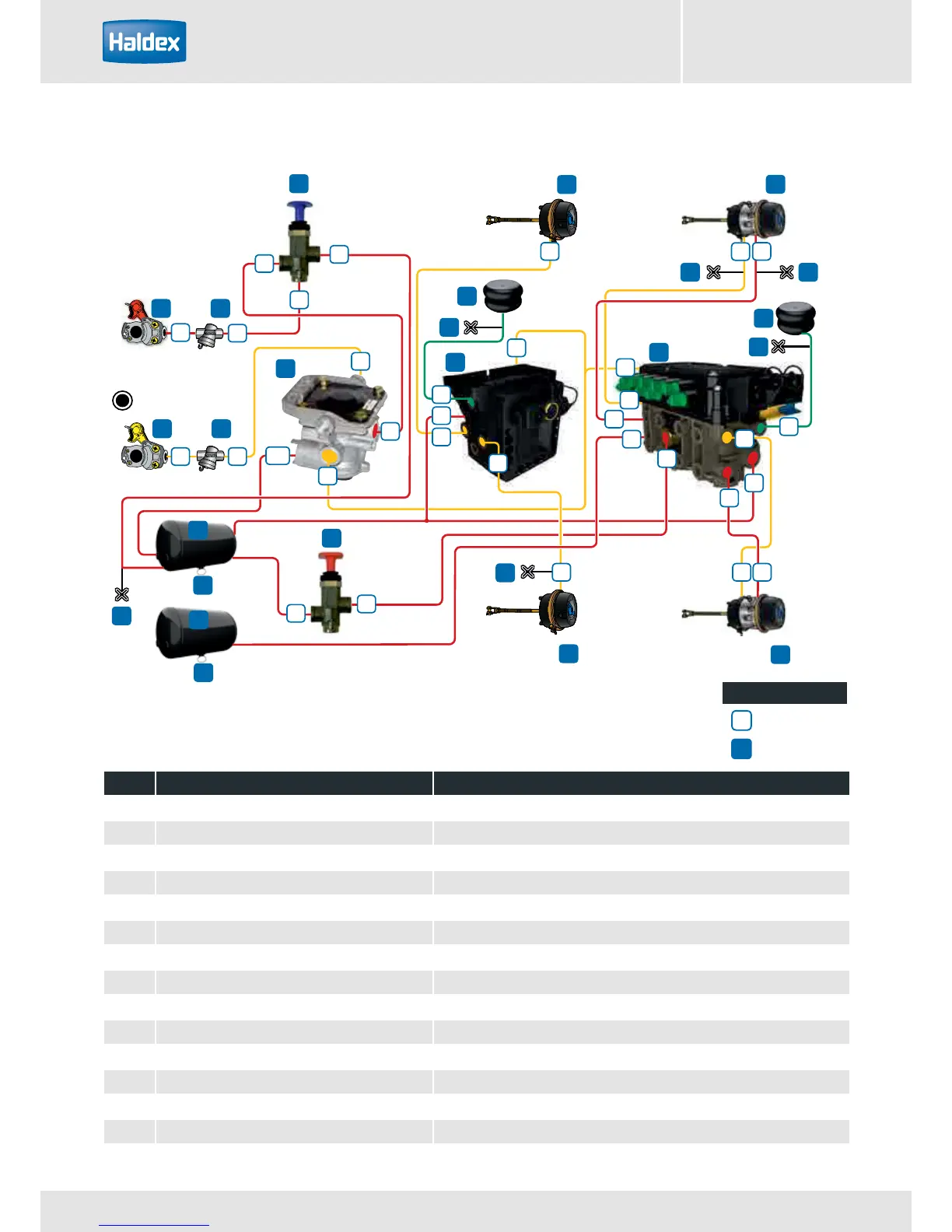

Haldex EB+ Gen3 - 3 M, Full Trailer with REV and Individual Park & Shunt Valves

EB+ Gen3 Installation guide
60 Innovative Vehicle Solutions 2013
Item Description Notes
1 Emergency coupling Combined coupling & filter available
2 Service coupling Combined coupling & filter available
3 Pipe filter
4 Shunt valve
5 Air reservoir - brake
6 Drain valve
7 Test point
8 EB+ Gen3 master assembly Use Premium version
9 Spring brake chamber
10 Single diaphragm brake chamber
11 Test point simulator
12 Suspension bellows
13 EB+ Gen3 Slave assembly
14 Relay Emergency Valve (REV)
15 Park valve
Key
1
Port number
1
Components
3M, full trailer with REV and individual park & shunt valves
7
8
10
11 12
1
1 2
2
1
2
2-1
4
5
4
9
9
10
12
2
11
12
12
13
12
1
14
4
23
11
22
23
1
21
41
1
2
6
5
6
15
7
12
2
7
7
1 3
2 3
11
2
1
11
11
11
4
41
Note:
EB+ Gen3 should be supplied with clean / dry air.
