Haldex EB+ Gen3 - Piping Recommendations and Fittings

EB+ Gen3 Installation guide
46 Innovative Vehicle Solutions 2013

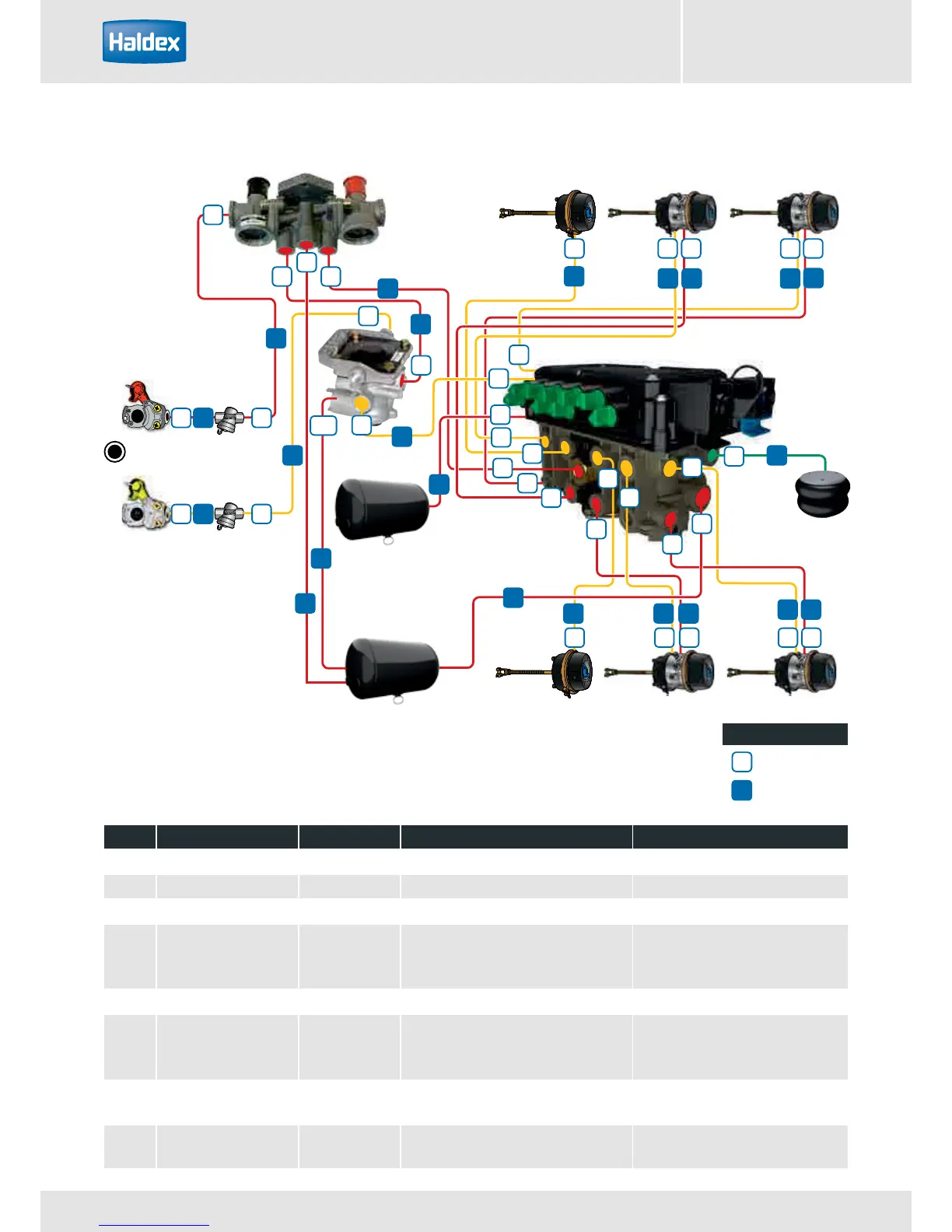

Piping recommendations
Key
1
Port number
1
Components
Note:
EB+ Gen3 should be supplied with clean / dry air.
1
1
2
1 2
22
11 12
11
12
11 12 11 12
4
22
21
21
23
23
22
11
23
22
1
21
23
1
11
2
1
4
21
1
2-1
11
11
41
1
2
2
3a
3c
3b
2
1
1
4a
4b
5
4c
5
3b
4a 4b 5
4c 5
6
Item Description Material Size Remark
1 Emergency pipe Nylon 8 x 1, 10 x 1, 10 x 1.25, 12 x 1.5
2 Service pipe Nylon 8 x 1, 10 x 1, 10 x 1.25, 12 x 1.5
3a Reservoir pipe Nylon 8 x 1, 10 x 1, 10 x 1.25, 12 x 1.5
3b Reservoir pipe Nylon 15 x 1.5
15 x 1.5 x 2 off (preferred)
18 x 2
Short as possible 1.0m max.
Short as possible 4.0m max.
3c Reservoir pipe Nylon 12 x 1.5
4a
4b
4c
Brake delivery pipe Nylon
or
Rubber hose
12 x 1.5
or
I.D. 11.0, I.D. 13.0
4a, 4b and 4c to be as short as
possible.
5 Emergency pipe Nylon
Rubber hose
8 x 1, 10 x 1.25, 12 x 1.5
I.D 11.0, I.D. 13.0
6 Suspension pipe Nylon As per suspension manufacturers
recommendations.
