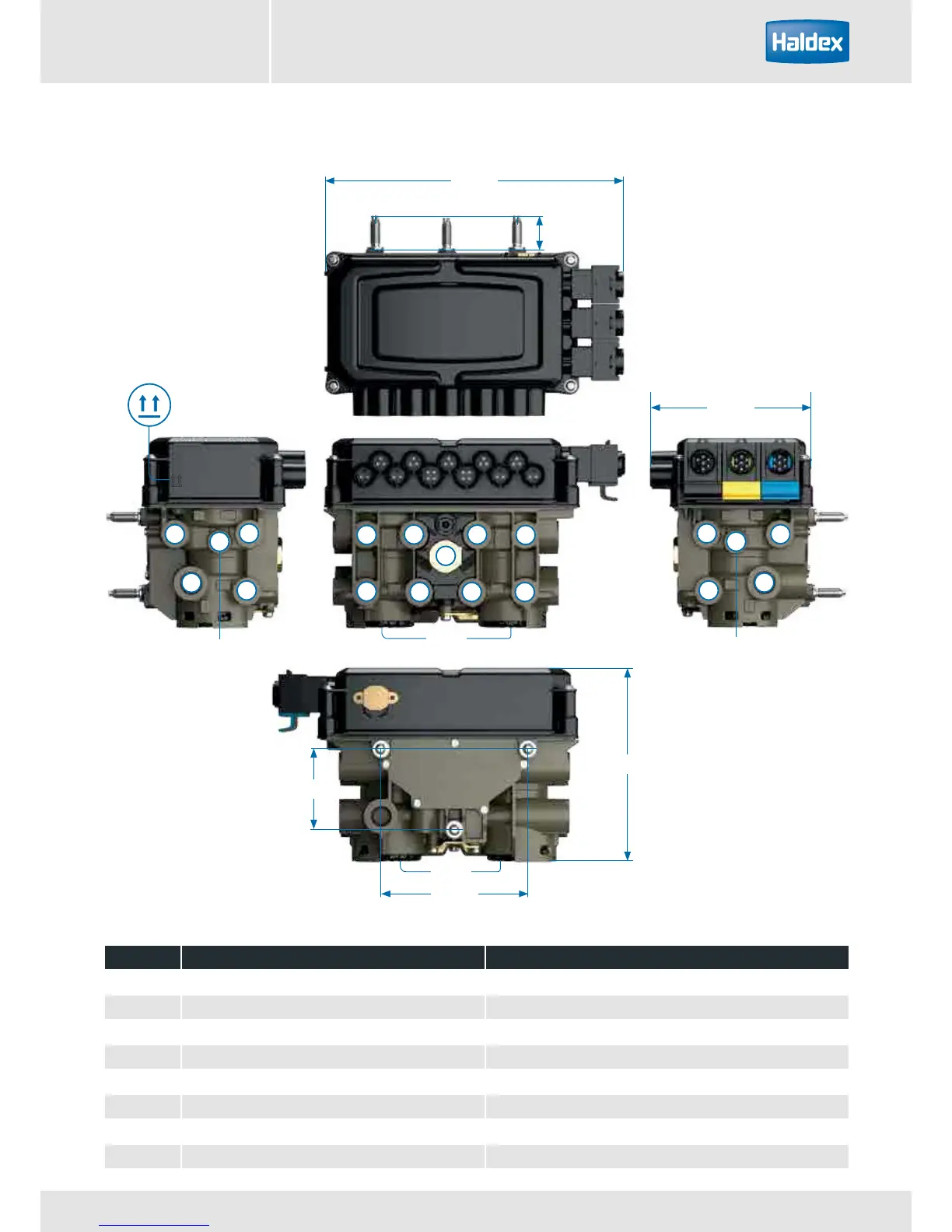

Haldex EB+ Gen3 - Premium Assembly

EB+ Gen3Installation guide
132013 Innovative Vehicle Solutions
Approximate mass of assembly: 5.75 Kg
Port 3
Delivery test
port 22
285 mm
155 mm
135 mm
Port 3
Delivery test
port 21
This way up
1
4
22
22
22
22
21
21
23
23 23 23
11
23 23
21
21
1
41
74 mm
182 mm
30 mm
Studs x 3
M10 x 1.5 mm
Premium assembly
Port Description Notes
1 Reservoir port M22 x 1.5 mm
3 Exhaust port
4 Control port M16 x 1.5 mm
11 Anti - compounding port M16 x 1.5 mm
21/22 Delivery ports M16 x 1.5 mm
21/22 Test point port M12 x 1.5 mm
23 Spring brake port M16 x 1.5 mm
41 Air suspension port M16 x 1.5 mm
