EB+ Gen3Installation guide
852013 Innovative Vehicle Solutions
Note colour
Programming Premium AUX using DIAG+ V6
Programming of AUX 2 and AUX 3 on Premium AUX is
only possible using DIAG+ V6 or later.

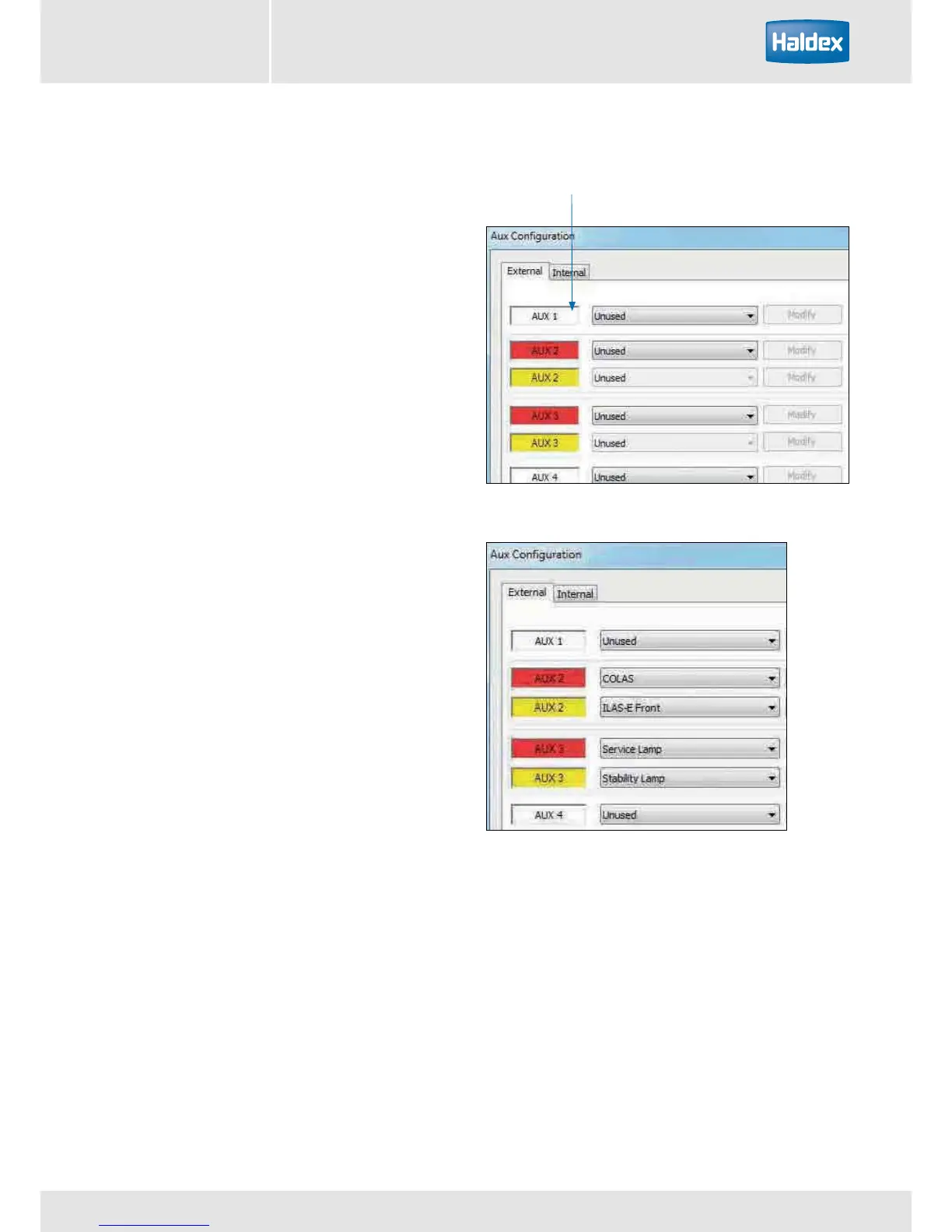

The 'AUX configuration' screen shows the various
auxiliary connections that can be used.
AUX 1
AUX 2 Red
AUX 2 Yellow
AUX 3 Red
AUX 3 Yellow
AUX 4
AUX 5
Super AUX
Clicking on the drop down arrow displays a list of
options that can be selected on that auxiliary.
Premium AUX example
AUX 2 (red AUX) COLAS
®
AUX 2 (yellow AUX) ILAS
®
-E front
AUX 3 (red AUX) Service lamp
AUX 3 (yellow AUX) Stability lamp
