Haldex EB+ Gen3 - Wiring Schematic

EB+ Gen3 Installation guide
62 Innovative Vehicle Solutions 2013

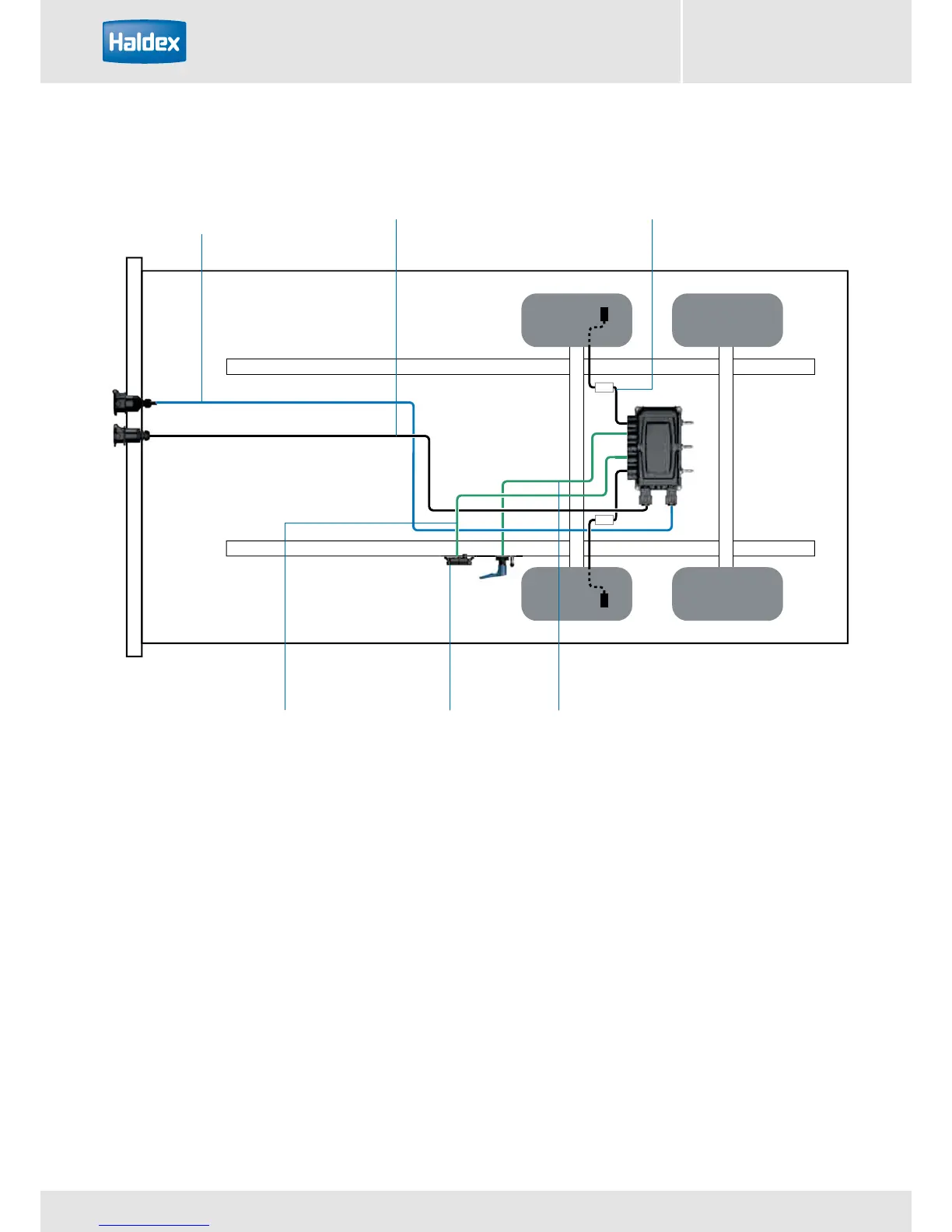

Wiring schematic
ISO 7638
7 core - PVC
5 x 1.5 mm
2
2 x 4.0 mm
2
ISO 12098 / ISO 1185 (24N)
2 core - PVC
2 x 1.5 mm
2
Sensor
2 core - PUR
2 x 0.75 mm
2
ISO 7638
ISO 12098 / ISO 1185 (24N)
Diagnostic
4 core - PVC
4 x 0.75 mm
2
Info Centre or
side of vehicle
connector
Auxiliary
3 core - PVC
3 x 0.75 mm
2
(2 cores used)
