Haldex EB+ Gen3 - ‘DIAG‘ Side of Vehicle Connection; Clearance and Mounting Dimensions

EB+ Gen3Installation guide
452013 Innovative Vehicle Solutions
Ø 24 MAX
Ø 50 MAX
40.0
MIN
40.0
MIN
300 MAX
100
MIN
R
Alt
120.0
MIN
65.0
MIN

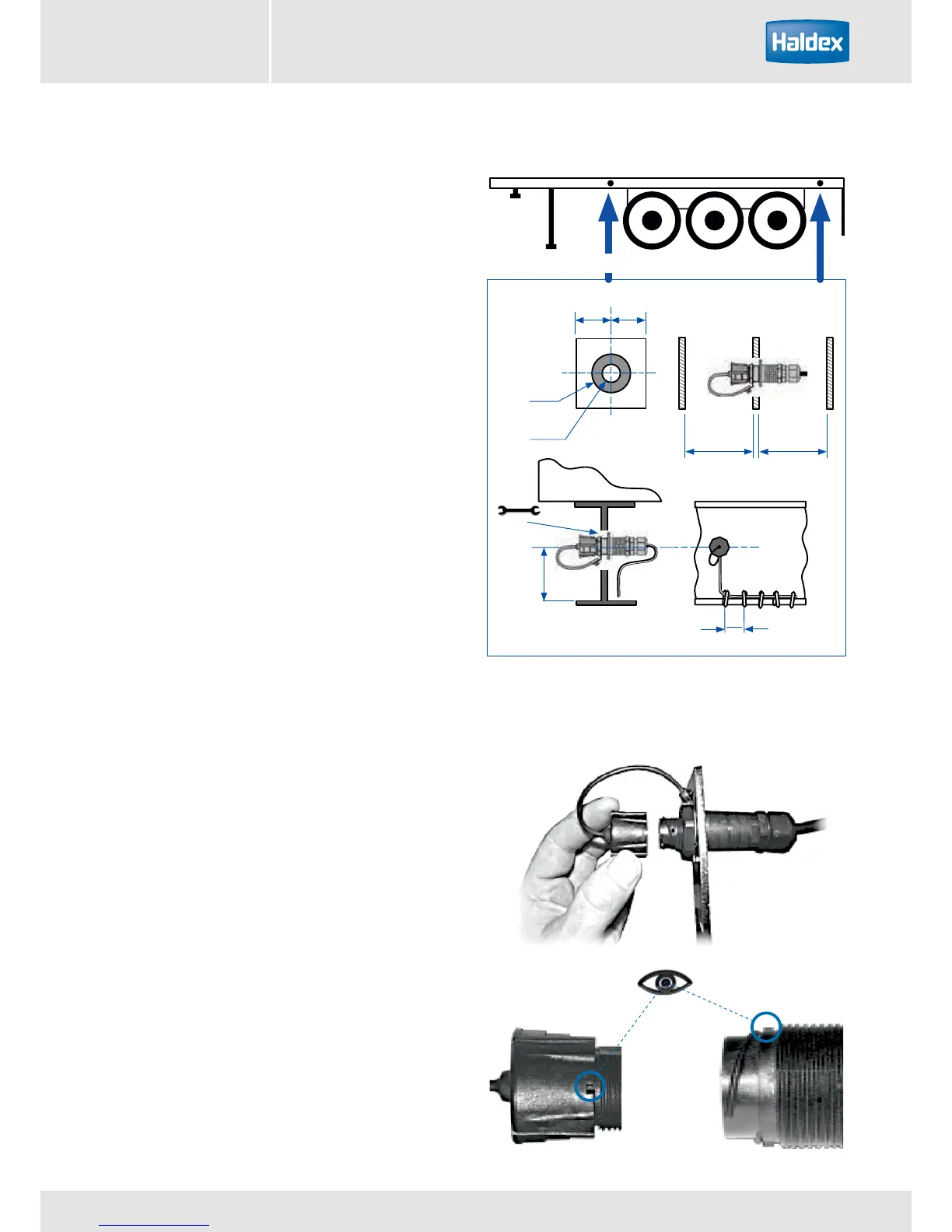

‘DIAG‘ side of vehicle connection
Clearance and mounting dimensions
Shaded area around hole to be flat and free from
raised markings or surface imperfections which may
prevent flush fitting of the connector.
Mount the diagnostic connector on the outside of the
main chassis rail. The position must be in an accessible
area but not in the direct spray of the wheels.
The connector must be mounted horizontally.
Tighten nut ‘R’ to a torque of 3-4 Nm (2-3 Ibft).
ECU connection is as right.
Cable to run up to connector and secured to the
chassis, or appropriate cable or pipe runs, with cable
ties at 300 mm maximum intervals.
Ensure that the cover is fitted and correctly ‘locked’ in
place.
Note:
For Installation of Info Center refer to Instructions
006 300 000.
Diagnostic ‘DIAG’ - side of vehicle connection - option 3
min min
min
min
min
max
max
max
