EB+ Gen3Installation guide
652013 Innovative Vehicle Solutions
1 ISO 7638
2 ISO 12098 / ISO 1185 (24N)
3 AUX 1
4 AUX 2
5 AUX 3
6 AUX 4
7 AUX 5
8 Sensor S2B
9 Sensor S1B*
10 DIAGN
11 DIAGN
12 Sensor S1A*
13 Sensor S2A
EB+ Gen3 2M
Red / green led
* minimum requirement for a 2S / 2M system

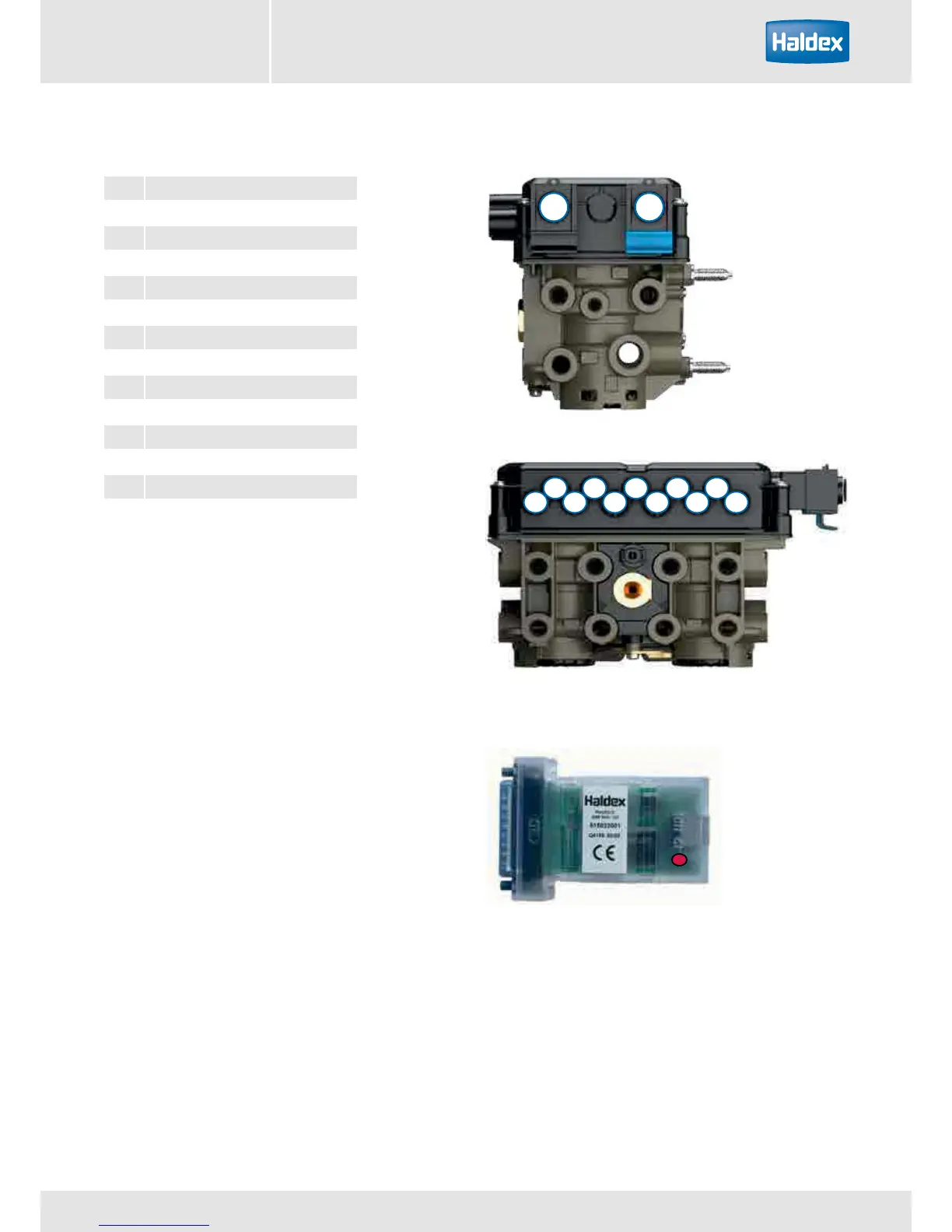

ECU connections - 2M
12
8 9 10
11
12 13
3 4 5 6 7
Power up the EB+ ECU. During the self check
procedure the system displays the following functions:
the trailer EBS warning light comes ‘On’ and stays
‘On’. One audible cycle is produced by the EPRV’s (EBS
valves).
At the same time the led on the USB dongle will
illuminate ‘red / green’ to show that is receiving a
power supply from the ECU.
Note:
It is possible to use the DIAG+ software to set the ECU
parameters with only the power supply ISO 7638 and
interconnection cable (Master to Slave ECU) connected.
But diagnostic codes will be logged and will require to
be deleted on the final vehicle installation.
