Haldex EB+ Gen3 - 4 Sensors, 2 Modulators, 3 AUX, with Info Centre 2 and TPMS

EB+ Gen3Installation guide
672013 Innovative Vehicle Solutions
ISO12098 /
ISO1185 (24N)

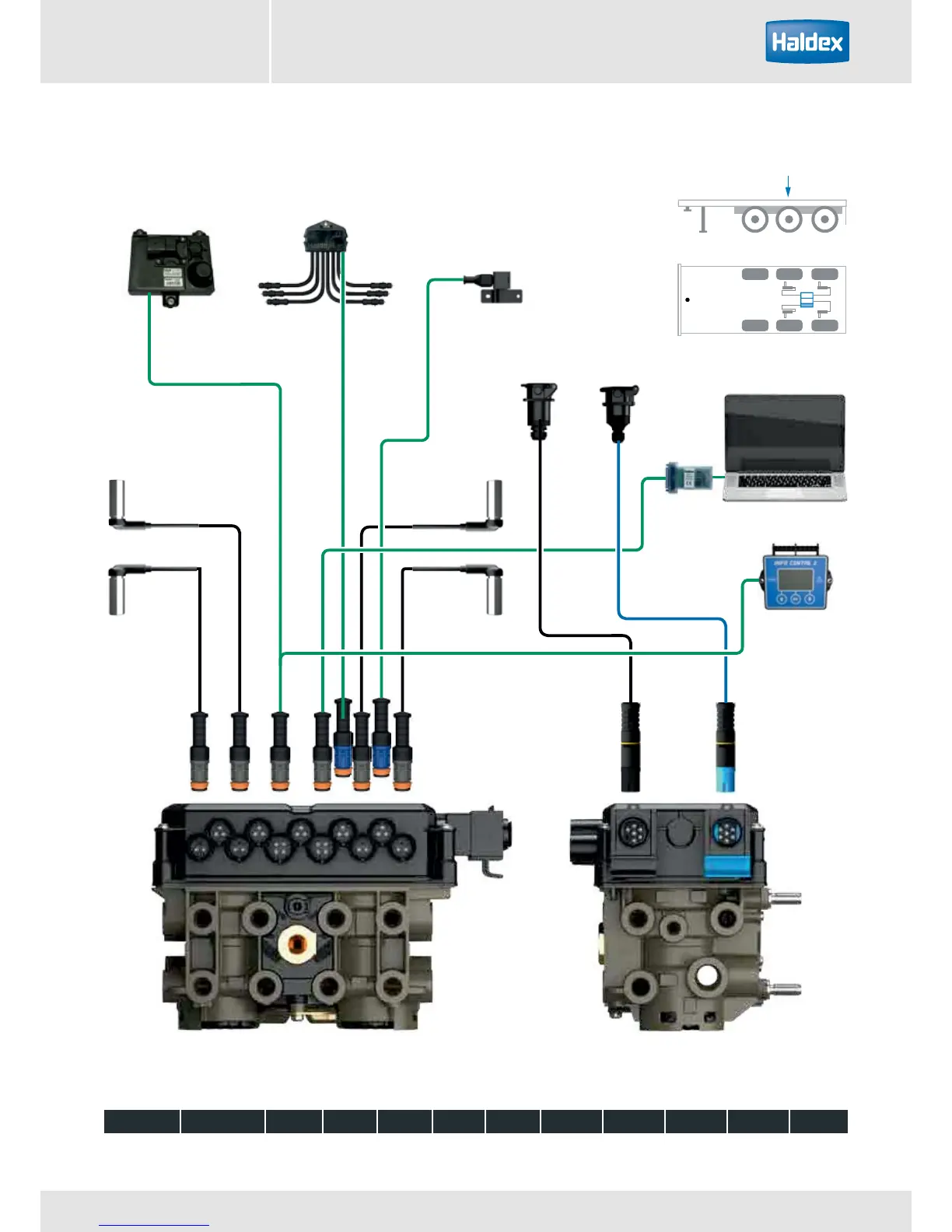

Sensor S1B
Connections shown:
Sensor S2B
Sensor S1A
Sensor S2A
LWS
NB1
NB1 - Lining wear sensor to be fitted in AUX 4 only
NB2 - External stability accelerometer to be fitted in AUX 5 only
EB+ external stability
accelerometer
NB2
DIAG+
Interface
Info Centre 2
B sensors
A sensors
ISO7638
AUX 4 AUX 5
TPMS
ISO 7638 ISO 12098 DIAG S1A S1B S2A S2B AUX 1 AUX 2 AUX 3 AUX 4 AUX 5
DDDDDDD DD
4 sensors, 2 modulators, 3 AUX, with Info Centre 2 and TPMS
