Haldex EB+ Gen3 - Towing Vehicle EBS; ABS ISO 7638 Wiring

EB+ Gen3 Installation guide
64 Innovative Vehicle Solutions 2013
Pin no Description Notes
1 Red (RD) 4 mm
2
B+ batt
2 Black (BK) 1.5 mm
2
B+ ign
3 Yellow (YE) 1.5 mm
2
B- earth
4 Brown (BN) 4 mm
2
B- earth
5 White (W) 1.5 mm
2
Lamp
6 White / green (W / GN) 1.5 mm
2
CAN hi
7 White / brown (W / BN) 1.5 mm
2
CAN lo

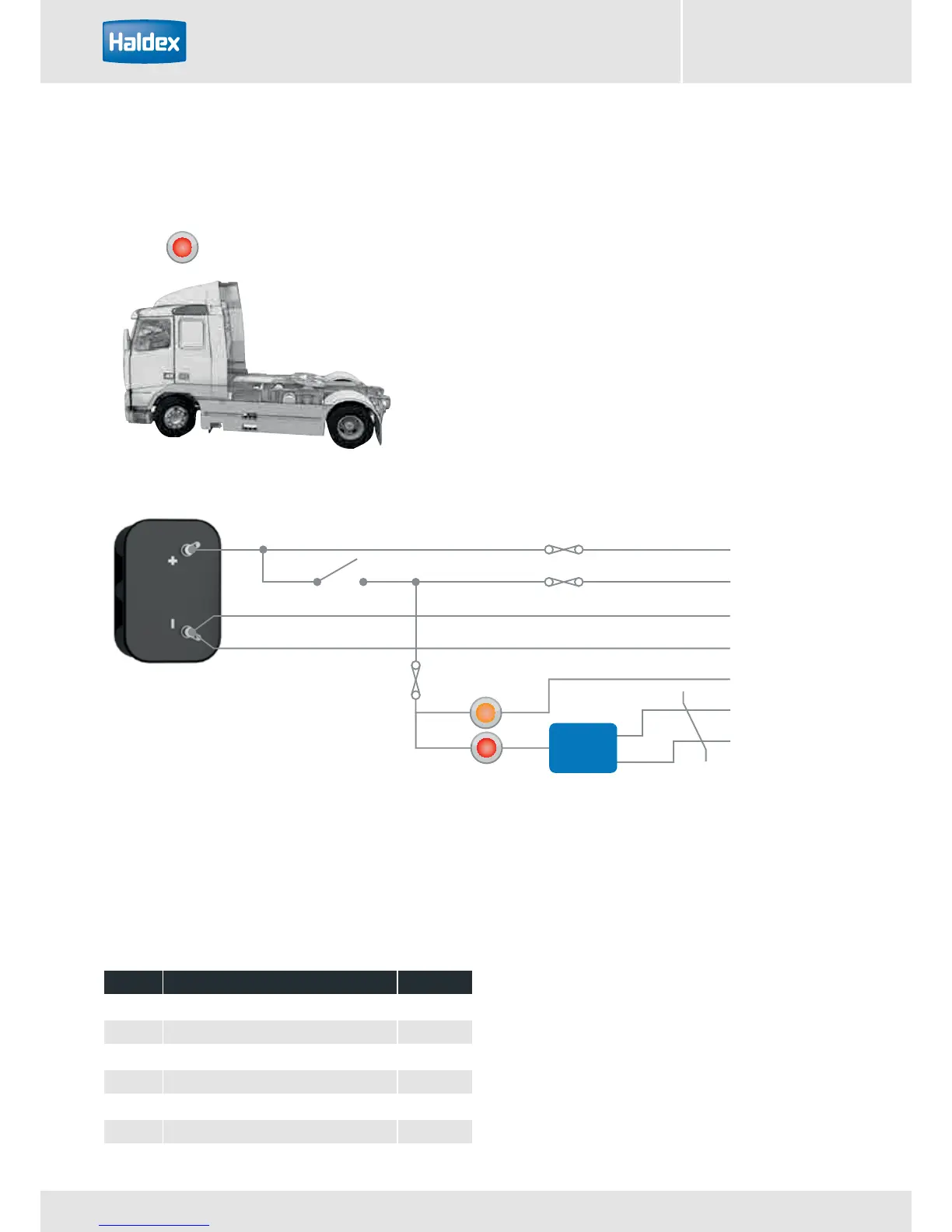

Towing vehicle EBS / ABS ISO 7638 wiring
ISO 7638 7-pin
1
2
3
4
5
6** CAN - High
7** CAN - Low
Truck
EBS
Amber
(*Red)
Red
Fuse
25/30 A
16 A (*2A)
* ISO7638 - 1996
**Not fitted on ISO7638 - 1985
* ISO 7638 - 1996
** Not fitted on ISO 7638 - 1995
Lamp indicator
25 / 30 A
16 A (*2A)
6 ** CAN high
5
4
3
2
1
7 ** CAN low
Fuse
Red
Amber
(*red)
