Haldex EB+ Gen3 - 2 M, Side by Side, with Combined Park & Shunt Valve

EB+ Gen3 Installation guide
50 Innovative Vehicle Solutions 2013
Item Description Notes
1 Emergency coupling Combined coupling & filter available
2 Service coupling Combined coupling & filter available
3 Pipe filter
4 Combined park & shunt valve 352 046 001
5 Air reservoir - brake
6 Drain valve
7 Test point
8 EB+ Gen3 assembly
9 Spring brake chamber
10 Single diaphragm brake chamber
11 Test point simulator
12 Suspension bellows
7

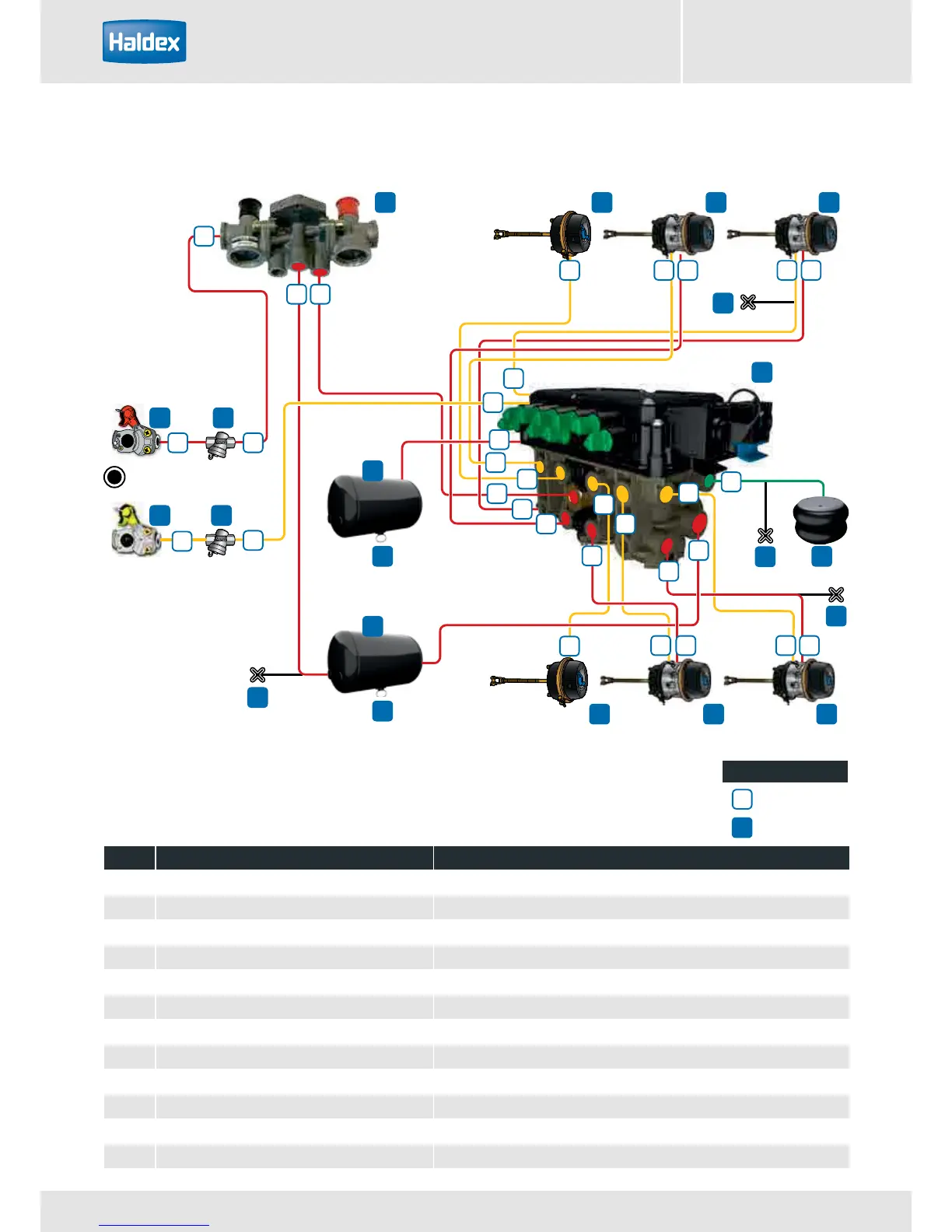

2M, side by side, with combined park & shunt valve
1
1 3
2
4
1
2 3
2
22
10
7
7
9 9
11 12
11
12
10
9
9
11 12 11 12
4
22
21
21
23
23
22
11
23
22
1
6
5
6
5
21
23
1
11
1
11
8
41
12
11
11
Key
1
Port number
1
Components
Note:
EB+ Gen3 should be supplied with clean / dry air.
