Painting

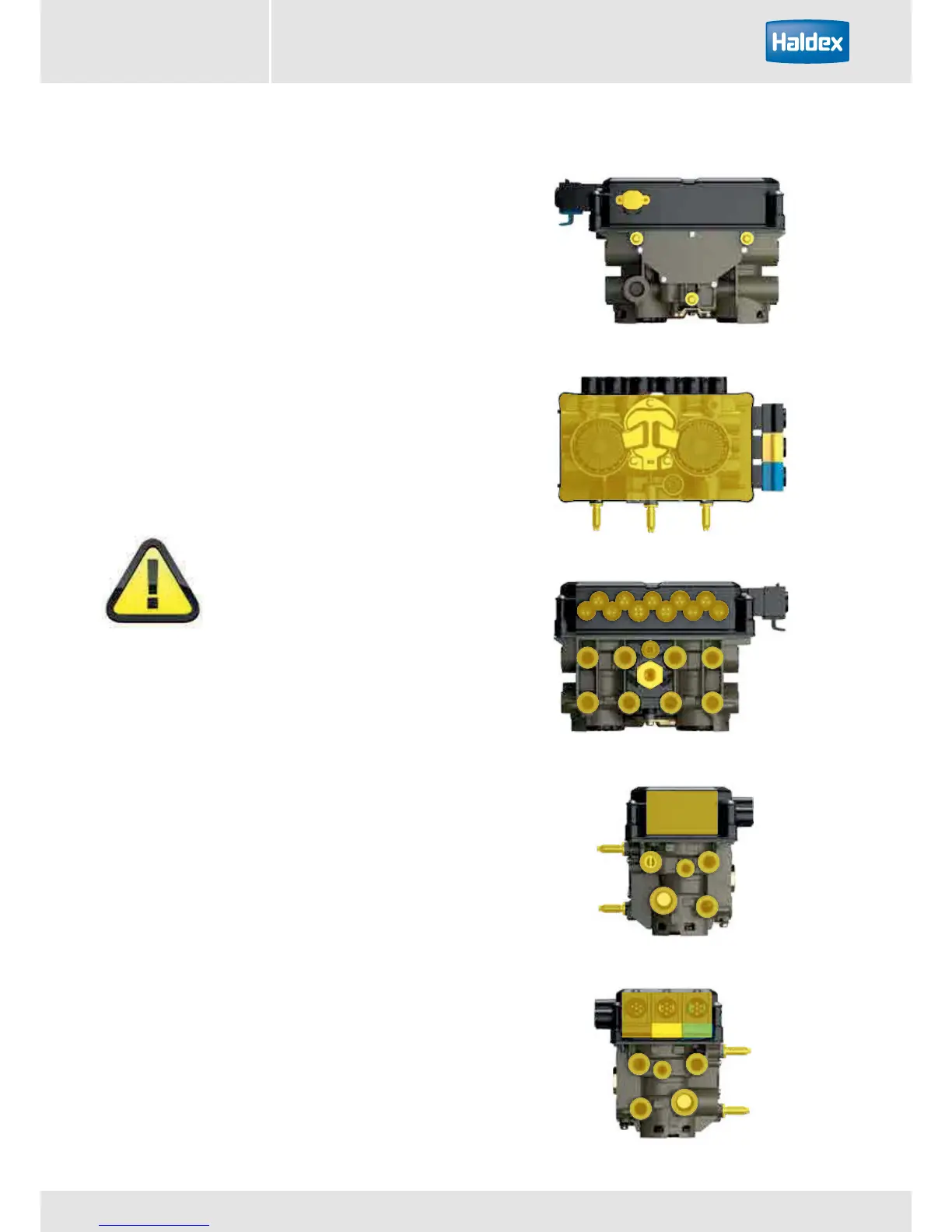

Masked areas
In the event of paint or coating work all none used
connections, pneumatic ports and exhausts must be
protected. These are indicated by the yellow shaded
areas as shown. Adequate protection should be
used to avoid penetration of the paint or coating. All
electrical ports to have connectors / blanking plugs
installed. Exhaust ports and connectors / locking areas
to be masked during painting.
Painting recommendations: water based, baking for
1 hour @ 100
o
C
Mounting face
Electro static painting: Haldex recommends that the
EB+ Gen3 assembly is fitted to the trailer after electro
static painting.
Front face
Left side
Right side
Underside
