ECU connectors - slide lock

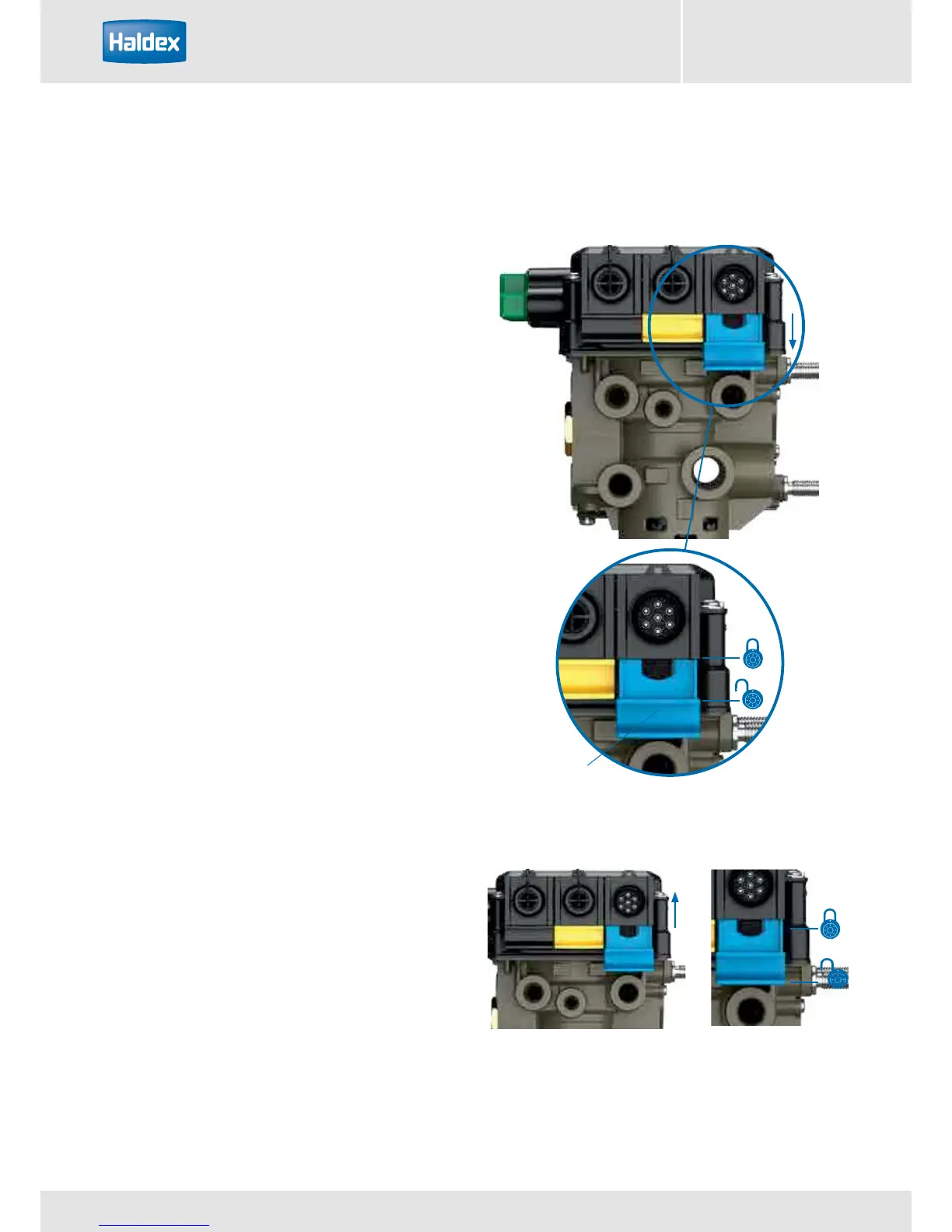

Unlock the housing by sliding down lever ‘G’.
Make sure slider is in the unlocked position ‘H’.
Ensure contact pins and seal are kept clean and free of
any contamination prior to installation.
Push in lock slider ‘M’ to secure in place all plugs and
connectors. Do not use extreme force to push in slider.
Make sure slider is in the lock position ‘N’.
G
Slide lock power connectors
