EB+ Gen3 Installation guide
68 Innovative Vehicle Solutions 2013
1 ISO 7638
2 3M link cable
3 ISO 12098 / ISO 1185 (24N)
4 AUX 1
5 AUX 2
6 AUX 3
7 AUX 4
8 AUX 5
9 Sensor S2B
10 Sensor S1B
11 DIAGN
12 DIAGN
13 Sensor S1A
14 Sensor S2A
EB+ Gen3 3M
Slave ECU
Interconnecting
cable
2

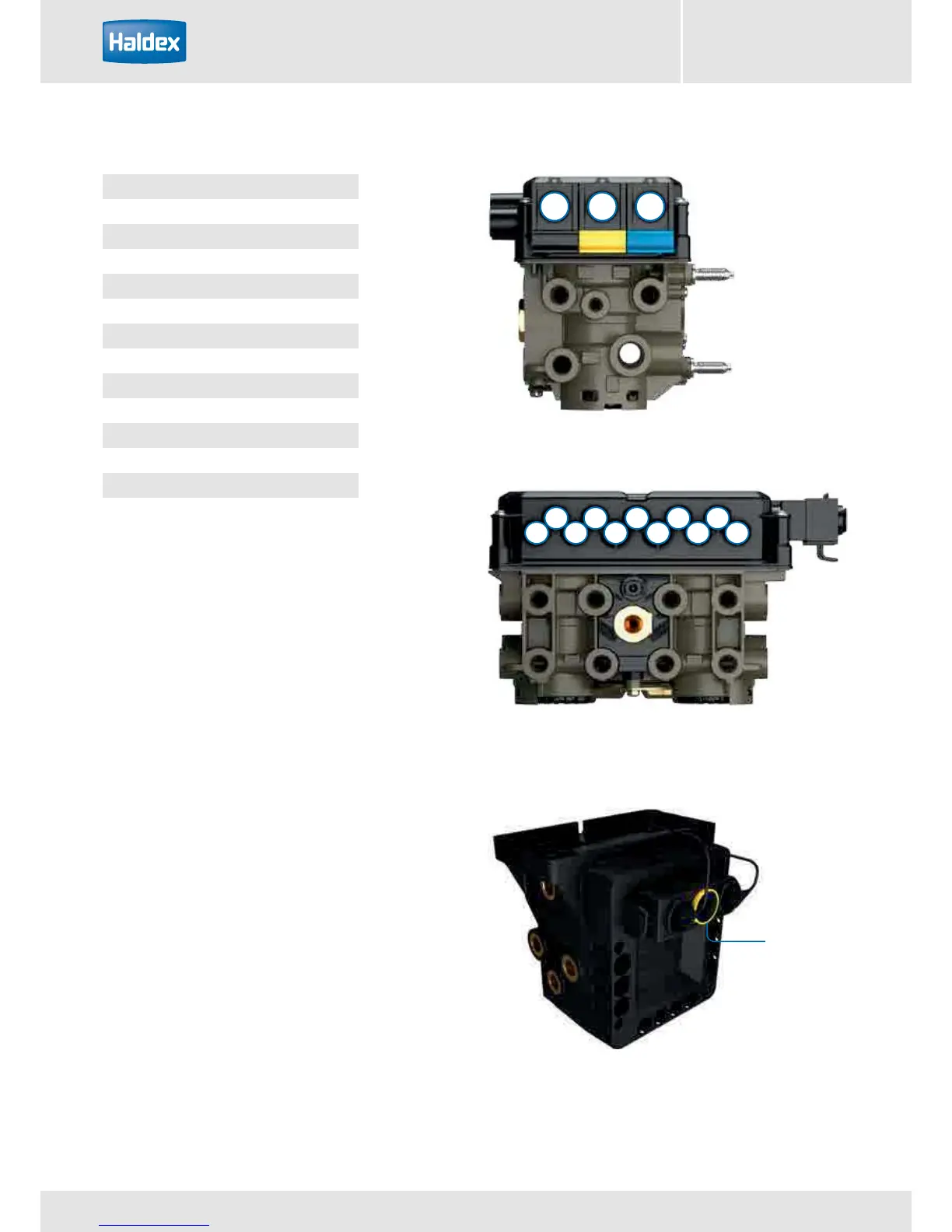

ECU connections - 3M
123
9 10 11 12 13 14
4 5 6 7 8
Make connection to the Slave ECU using the
interconnecting cable.
It is possible to use the DIAG+ software to set the ECU
parameters with only the power supply ISO 7638 and
interconnection cable (Master to Slave ECU) connected.
But diagnostic codes will be logged and will require to
be deleted on the final vehicle installation.
Note:
The EB+ Gen3 Slave assembly (ECU & valve) is only
supplied as one complete unit that cannot / should not
be separated.
Full trailer 3M system
