EB+ Gen3 Installation guide
84 Innovative Vehicle Solutions 2013
Yellow marker
Red marker

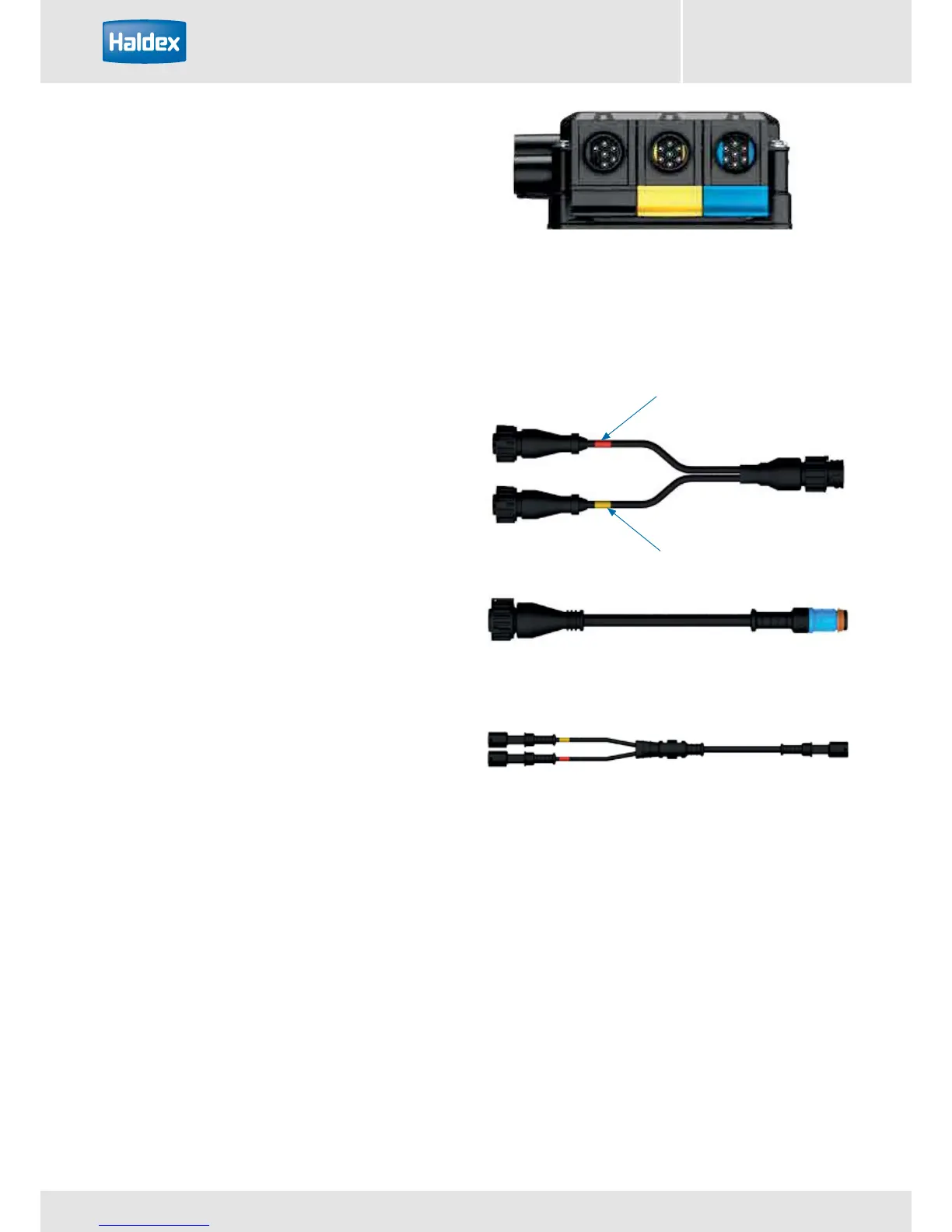

Premium AUX (P AUX)
Premium AUX allows the user to program two totally
independent outputs on both AUX 2 and AUX 3. It is
only available with the Premium ECU (as shown).
The Premium system provides five instead of three outputs (AUX 2 and 3 are capable to operate two separate
functions). An example for an extended application could be ILAS
®
-E front including TA+ on AUX 2, steer axle
lock on AUX 3 and COLAS
®
RtR on AUX 1. The twin outputs of AUX 2 and AUX 3 are colour coded red and
yellow within the DIAG+ software. These colours then match the twin identifiers of the cables below.
Auxiliary connection cables
To use the full auxiliary twin functionality of the
“Premium AUX” product, the following cables can be
used.
814 028 xxx series
814 012 2xx series
814 039 001
