EB+ Gen3Installation guide
1192013 Innovative Vehicle Solutions
Gen 3
Rear RCU
Info Centre 2
Front RCU
Telematics
Gen 3
Rear RCU
Info Centre 2
Front RCU

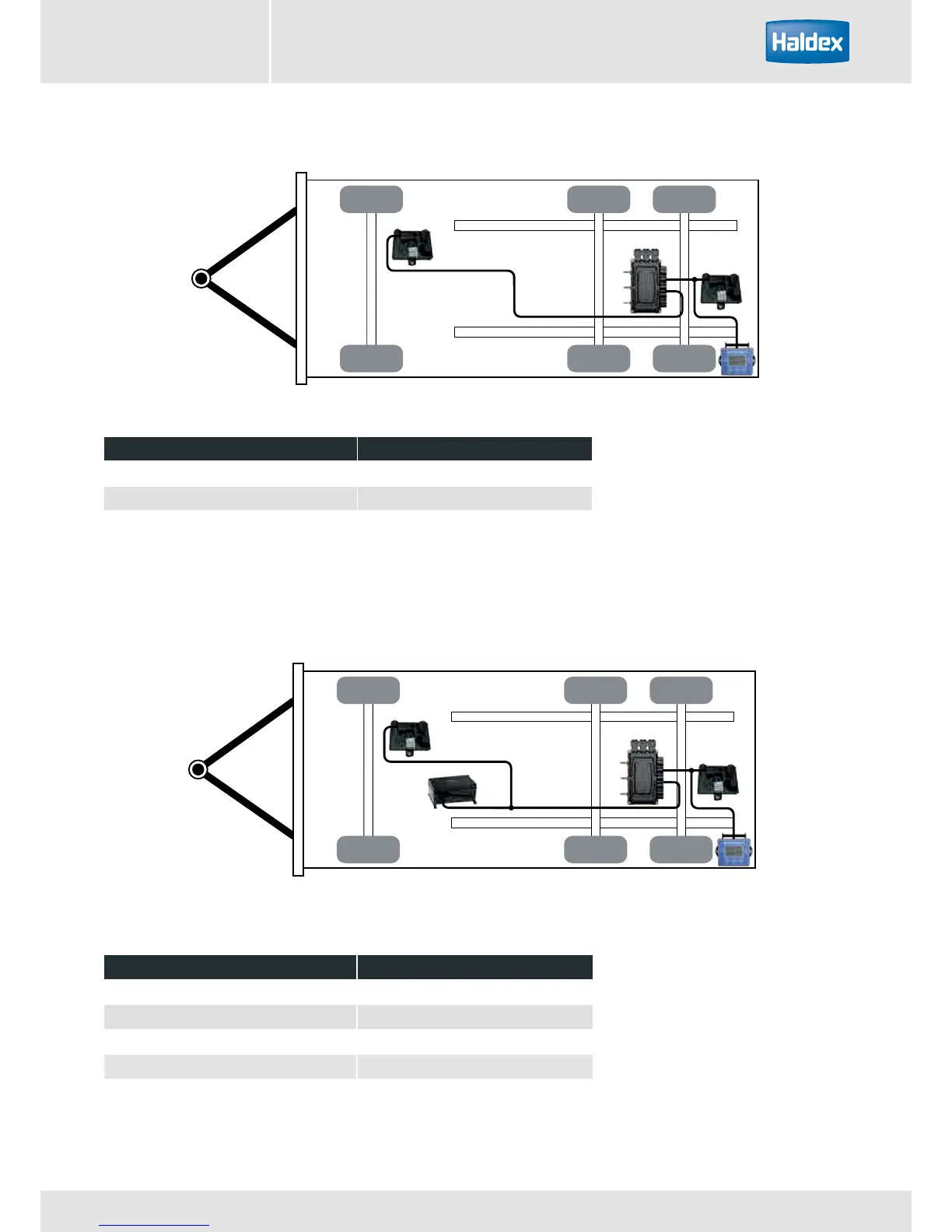

Full trailer - standard installation
Full trailer - complex installation (example)
Program Gen3 via DIAG+ without CAN termination (Gen3 tab in auxiliary setup).
Program Gen3 via DIAG+ without CAN termination (Gen3 tab in auxiliary setup).
Cable description Part number
RCU cable (unterminated) 814 040 001
Splitter cable 814 038 001
Front RCU cable (terminated) 814 040 2xx
Cable description Part number
RCU cable (unterminated) 814 040 001
Splitter cable (Qty 2) 814 038 001
DIN telematic cable 814 033 0xx
Front RCU cable (terminated) 814 040 2xx
