Haldex EB+ Gen3 - 2 Sensors, 2 Modulators, 3 AUX, with Info Centre 2

EB+ Gen3 Installation guide
66 Innovative Vehicle Solutions 2013

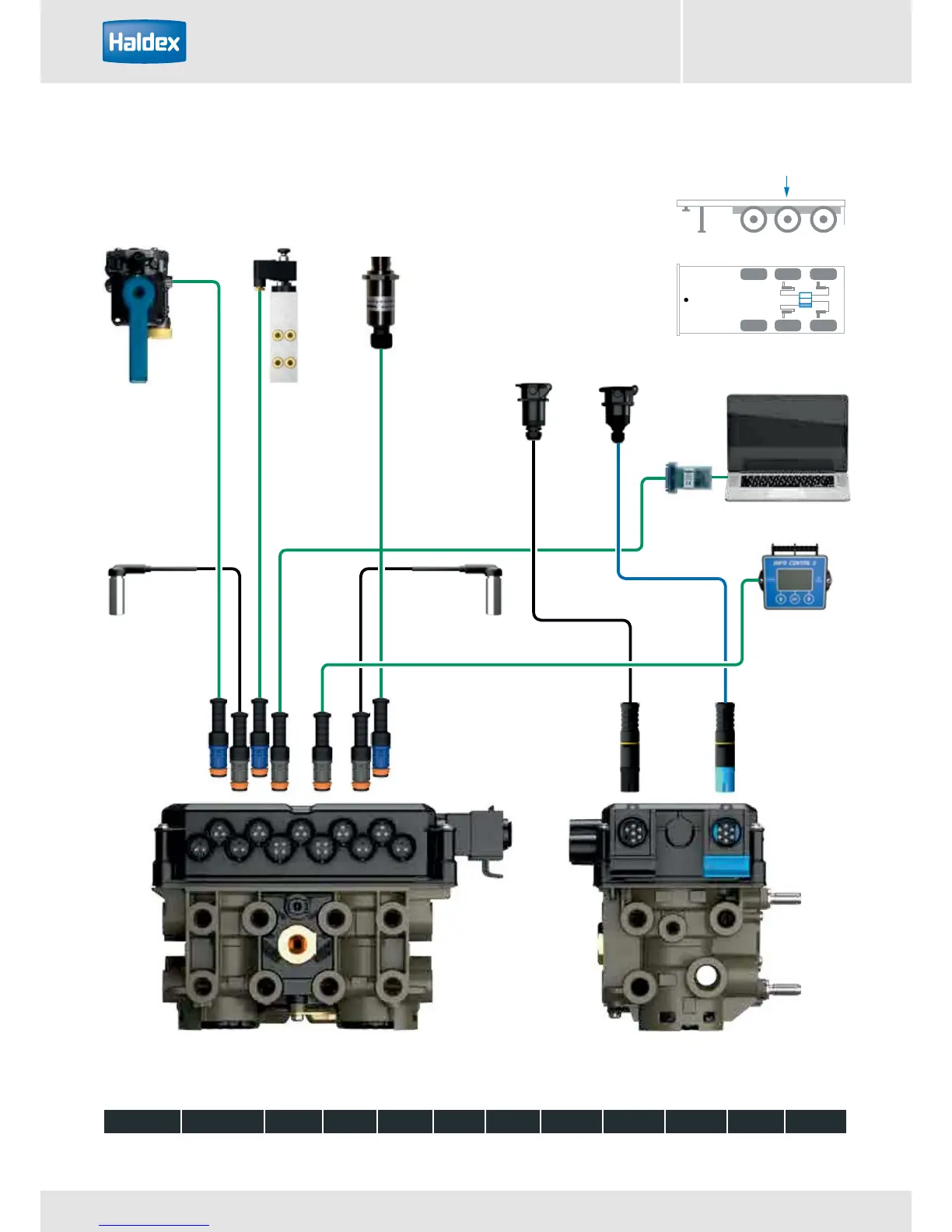

Connections shown:
Sensor S1B
Sensor S1A
DIAG+
interface
Info Centre 2
B sensors
A sensors
ISO 7638ISO 12098 /
ISO 1185 (24N)
COLAS
®
AUX 1
ILASE
®
-E
AUX 2
Pressure sensor
AUX 5
ISO 7638 ISO 12098 DIAG S1A S1B S2A S2B AUX 1 AUX 2 AUX 3 AUX 4 AUX 5
DDDDD DD

D
2 sensors, 2 modulators, 3 AUX, with Info Centre 2
+
