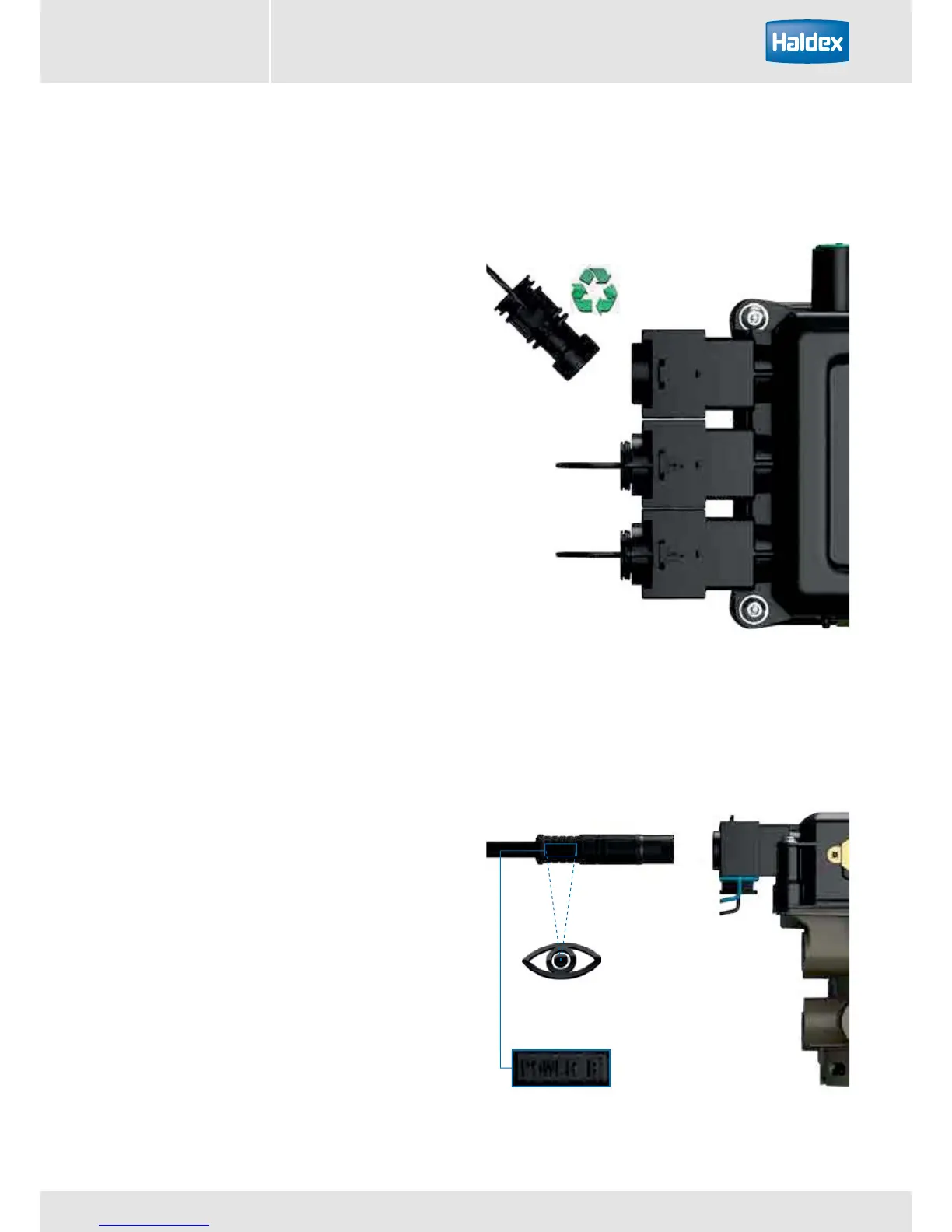

Black connector
Identify orientation of the ISO 12098 / ISO 1185 (24N)
black coloured connector.
Ensure contact pins and seal are clean and free of any
contamination prior to installation.
In position ‘PWR-B’, on the slide lock housing, insert
connector fully home.
Remove the blanking plug from the ‘PWR-B’ position.
PWR-B
PWR-A
3M
