EB+ Gen3Installation guide
412013 Innovative Vehicle Solutions

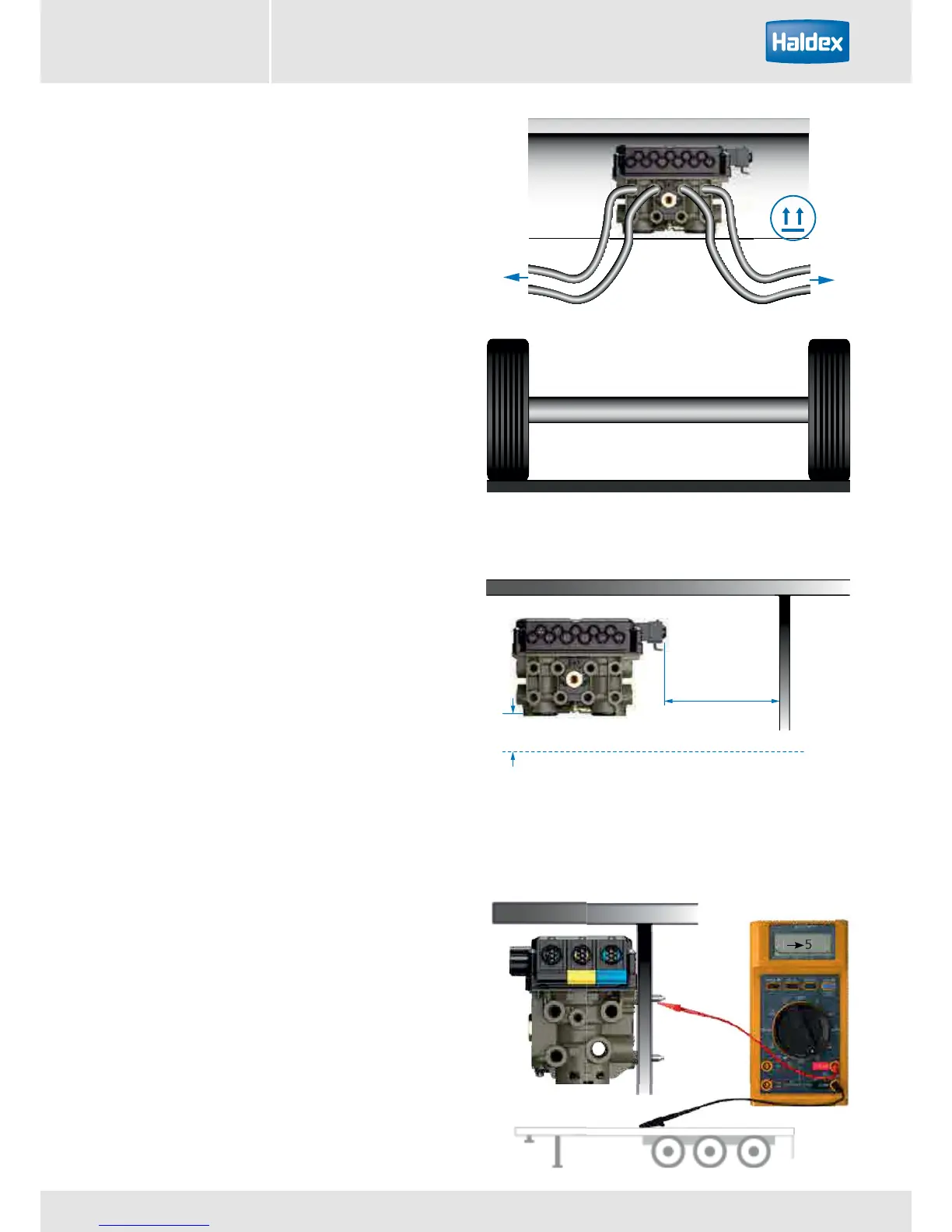

Check continuity between ECU / EPRV bracket and
vehicle.
Resistance (R) to be less than 5 ohms
0 < R < 5 ohms
This way up
Position assembly as high as possible in the chassis
to provide as much protection to the assembly from
direct spray and other road debris and to achieve an
acceptable hose routing.
Pitch angle: assembly must be mounted vertically.
Deck of trailer
To brake chambers
To brake chambers
Trailer axle
Road surface
Care should be taken to provide reasonable access to
the ECU / valve for replacement cables.
D = 150 mm minimum
E = 1. Assembly to be above axle centre line.
2. To be as high in frame as possible.
E
D
0 5:
