Haldex EB+ Gen3 - Page 57

EB+ Gen3Installation guide
572013 Innovative Vehicle Solutions

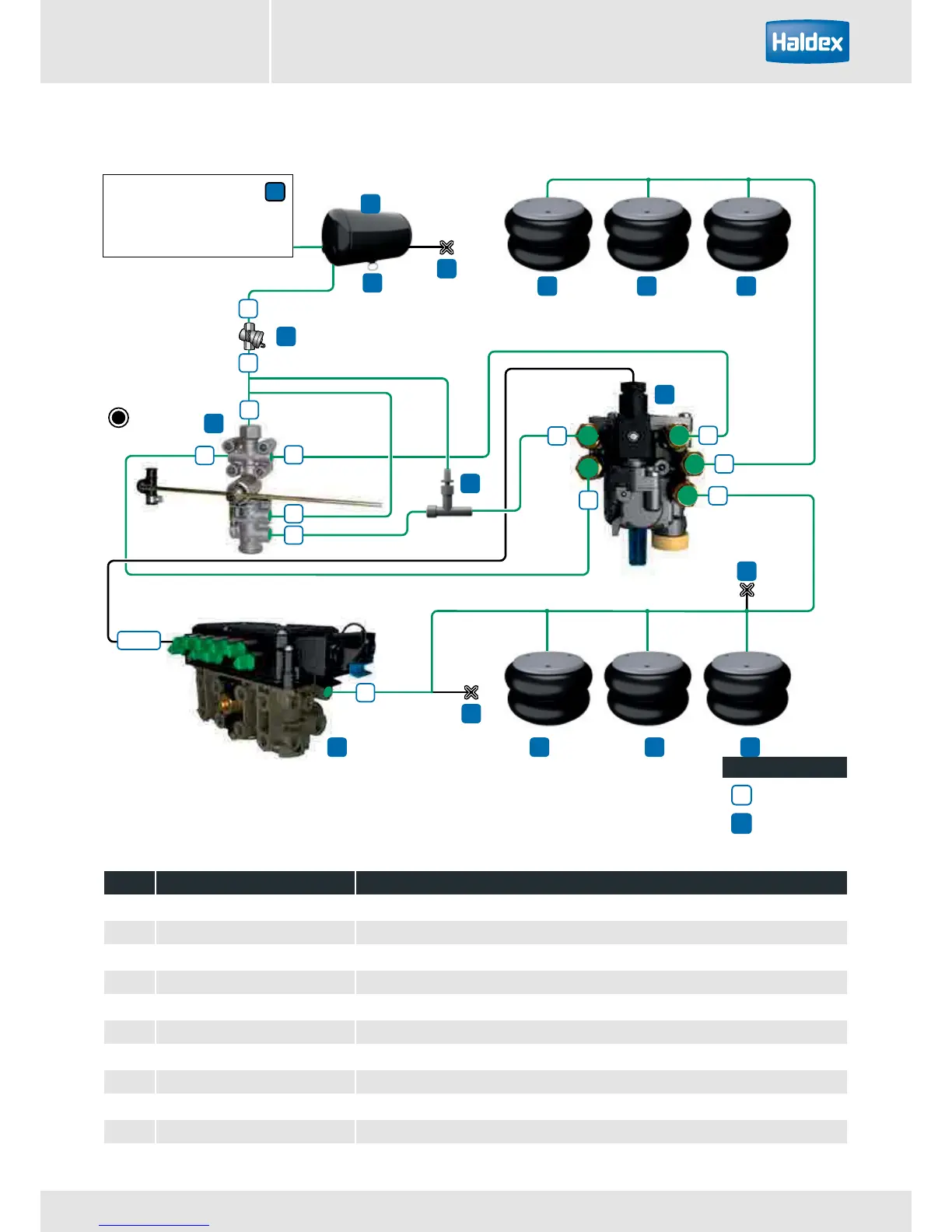

Item Description Notes
1 Air suspension supply Air supplied from TrCM
+
, TEM
®
or separate pressure protection valve
2 Air suspension reservoir
3 Drain valve
4 Pipe filter
5 Levelling valve With height limitation
6 Suspension bellows
7 Test point
8 EB+ Gen3 assembly
9 Test point simulator
10 COLAS
®
11 Throttle restrictor Optional upon installation specification
+
2M, COLAS
®
, height limitation - option 2 (without DCV)
Key
1
Port number
1
Components
Note:
EB+ Gen3 should be supplied with clean / dry air.
+
4
7
11
9
3
2
6 6 6
6 6 6
2
1
41
8
11
21
1
10
12
AUX1
21
22
23
12
1
5
7
22
1
Air supplied from:
TrCM
+
or
TEM
®
or
separate pressure protection valve
