Chapter 6 Audio Configuration
© 2013 Harmonic Inc. Harmonic All rights reserved. 143 Ellipse 3000 Release 3.0, Rev. B
Audio General Menu
Decoder Side (PVR-7K)

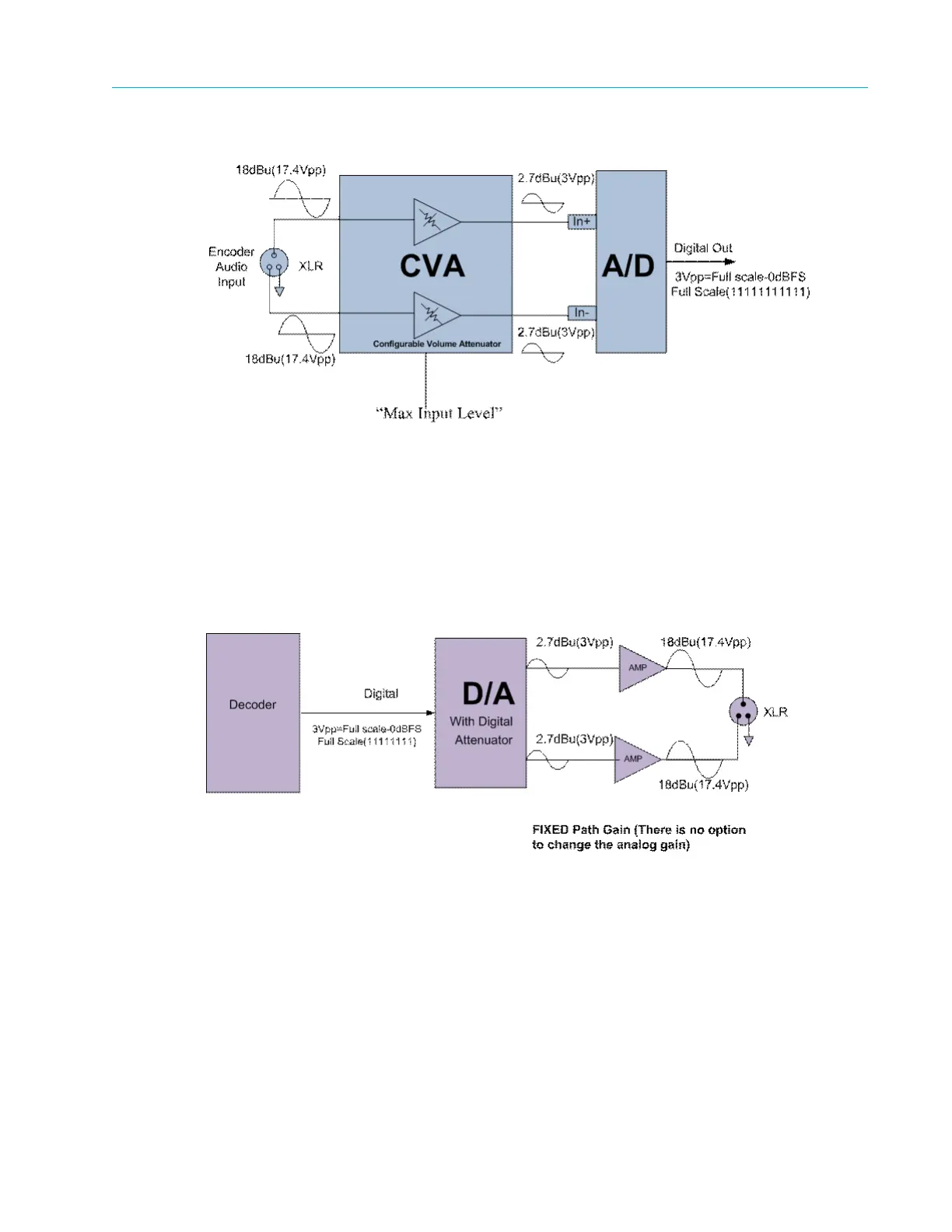

When the decoder receives the digital full scale (0dBFS) it outputs, via the analog XLR, the
maximum power of 18 dBu.
On the decoder side there is no option to control the analog gain. However, there is an option to
set digital attenuation up to 60 dB.
Summary
The Ellipse Max Input Level parameter, provides the ability to determine and define the analog
signal conversion gain. This feature can be very helpful while dealing with versatile equipment
with low input signals.
The range is -20 to 20 dBu. Default value is 10 dBu.
