Harmonic Ellipse 3000 - IF Power; IF Frequency

Chapter 11 DSNG Configuration
© 2013 Harmonic Inc. Harmonic All rights reserved. 313 Ellipse 3000 Release 3.0, Rev. B
IF Modulator Parameters
11.3.1 IF Power
The IF Power parameter sets the IF output power in dBm units. The IF power is required for
Carrier definitions. Configuration of this parameter is saved automatically and does not require
access to the Save menu.
The range is -30 to +05 dBm. The IF Power default is -12 dBm.
Front Panel
To set the IF Power parameter on the front panel:
❖ Navigate Root > IF Modulation > IF Power.
Web Manager
To set the IF Power parameter in the Web Manager:
❖ Select DSNG > MODULATOR AND UPCONVERTER (see Figure 11–3).
11.3.2 IF Frequency
The IF Frequency parameter sets the IF modulator’s frequency rate.
The range is 50 to 180 MHz. The IF Frequency default value is 70 MHz.
Front Panel
To set the IF Frequency parameter on the front panel:
❖ Navigate Root > IF Modulation > IF Frequency.
Web Manager
To set the IF Frequency parameter in the Web Manager:
❖ Select DSNG > MODULATOR AND UPCONVERTER (see Figure 11–3).

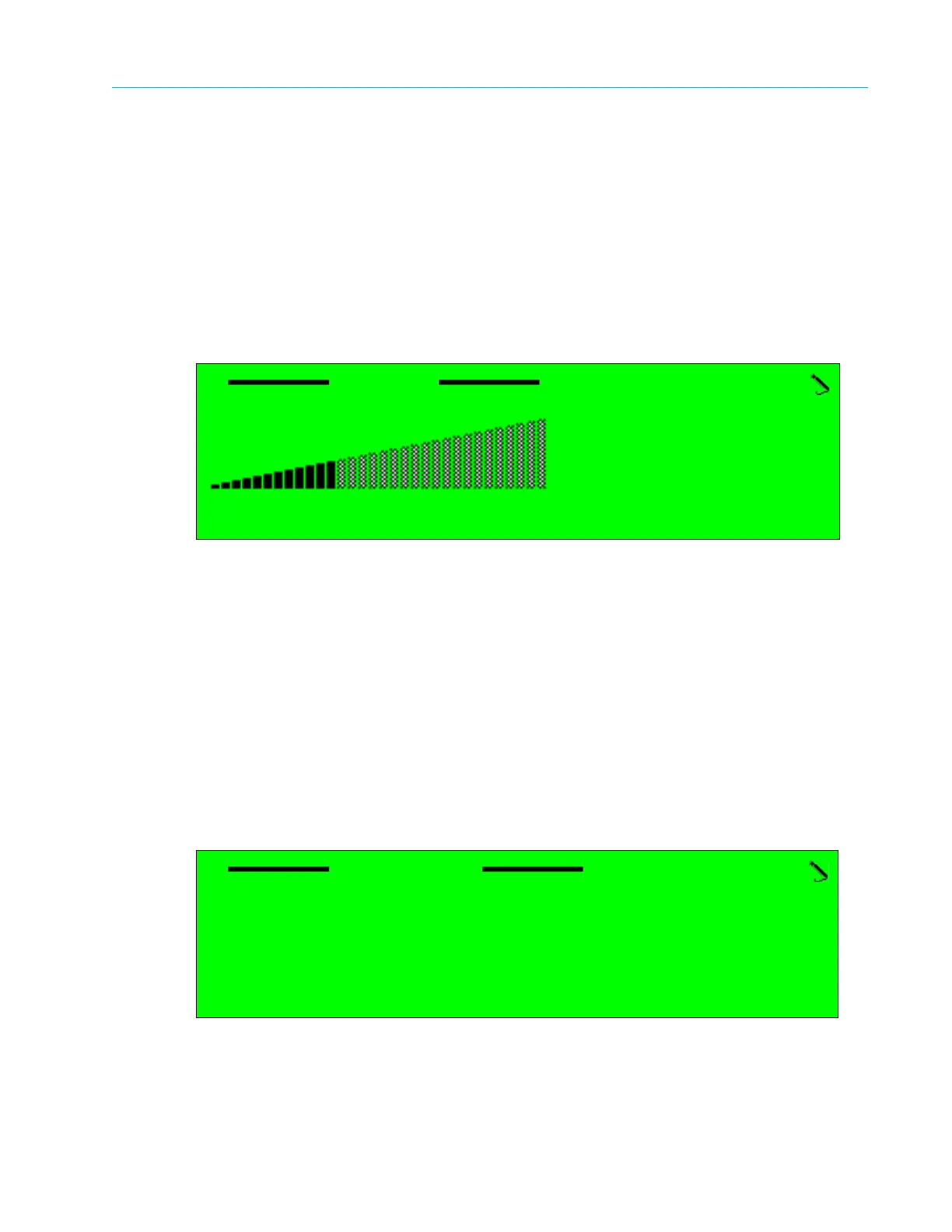

IF Power
-12 [dbm]
<-30 + 05>
IF Frequency
+070000 [kHz]
<+050000 - +180000>
