DS9034PCX PowerCap with Crystal
2 of 3
ORDERING INFORMATION
PART TEMP RANGE
VOLTAGE
(V)
PIN-PACKAGE TOP MARK*
DS9034PCX
0°C to +70°C 3.0
PCM DS9034PCX
DS9034PCX+
0°C to +70°C 3.0
PCM DS9034PCX
DS9034I-PCX
-40°C to +85°C 3.0
PCM DS9034PCXI
DS9034I-PCX+
-40°C to +85°C 3.0
PCM DS9034PCXI
+ Denotes a lead-free/RoHS-compliant device.
* A “+” on the top of the package indicates a lead-free device.

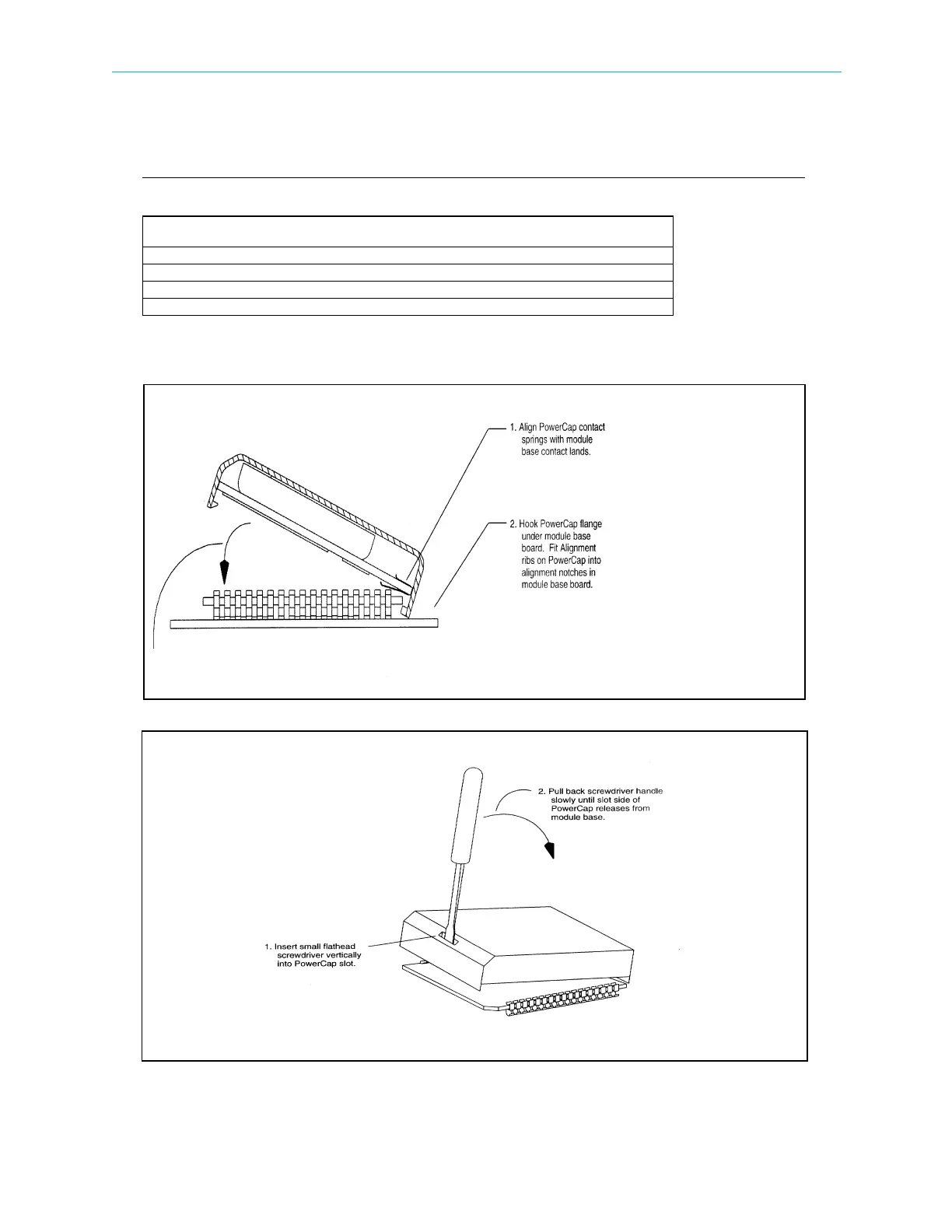

PowerCap ATTACHMENT AND REMOVAL
PowerCap REMOVAL
3. Push down and forward with the screwdriver while inserting the PowerCap. This action will “open” the attachment feature.
