Chapter 6 Audio Configuration
© 2013 Harmonic Inc. Harmonic All rights reserved. 152 Ellipse 3000 Release 3.0, Rev. B
SDI Embedded Parameters
Web Manager
To access the Embedded parameters in the Web Manager:
❖ Select Audio > Aud#.
The following box displays when you select any Coding Scheme except Cue Tone and Dolby
Digital 5.1.

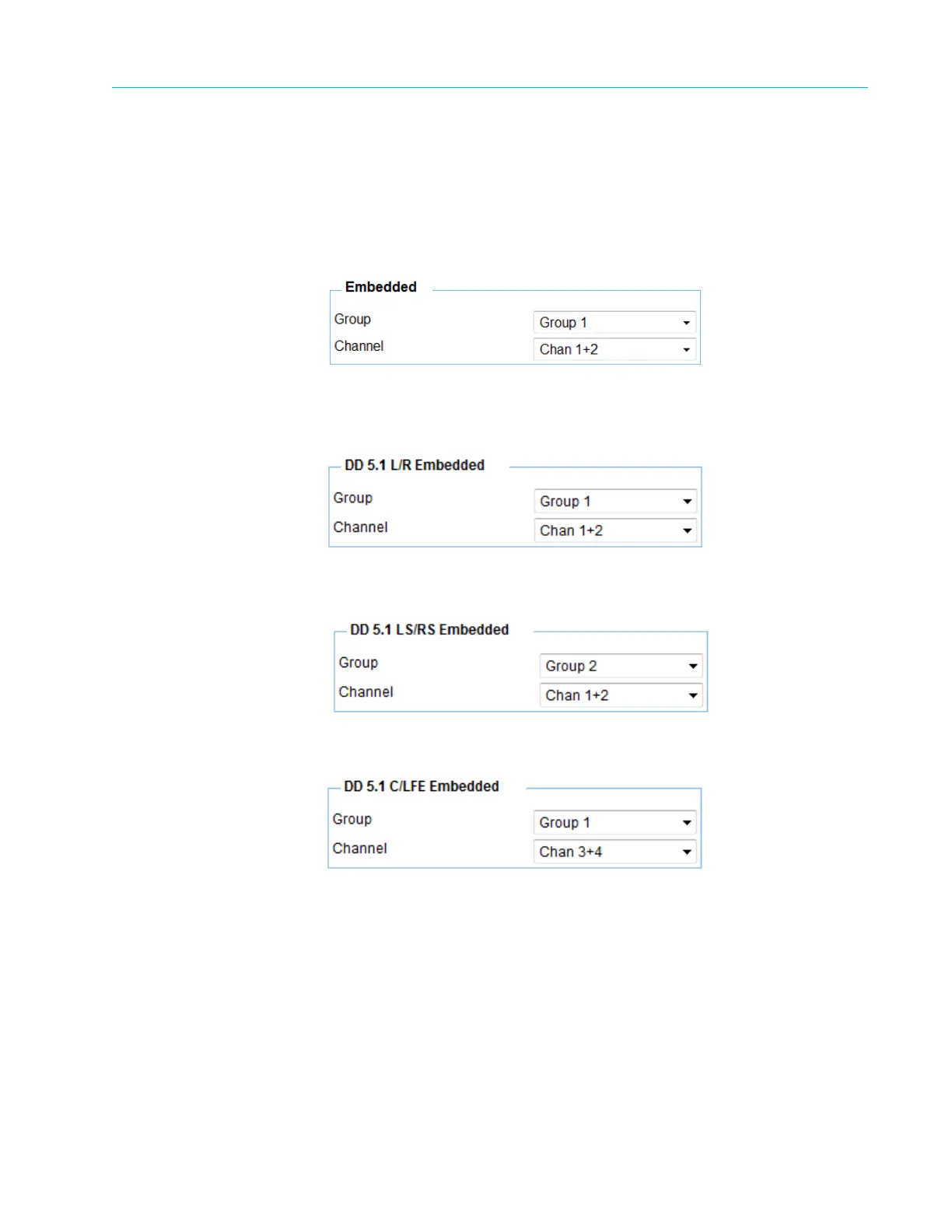

Figure 6–5: Embedded box
The following boxes display when you select DD 5.1.
Figure 6–6: Dolby Digital 5.1 L/R Embedded box
Figure 6–7: Dolby Digital 5.1 LS/RS Embedded box
Figure 6–8: Dolby Digital 5.1 C/LFE Embedded box
