Chapter 4
FR6822+QXFE Configuration, Monitoring, and Control
42
Copyright © 2008-2011, Harris Corporation

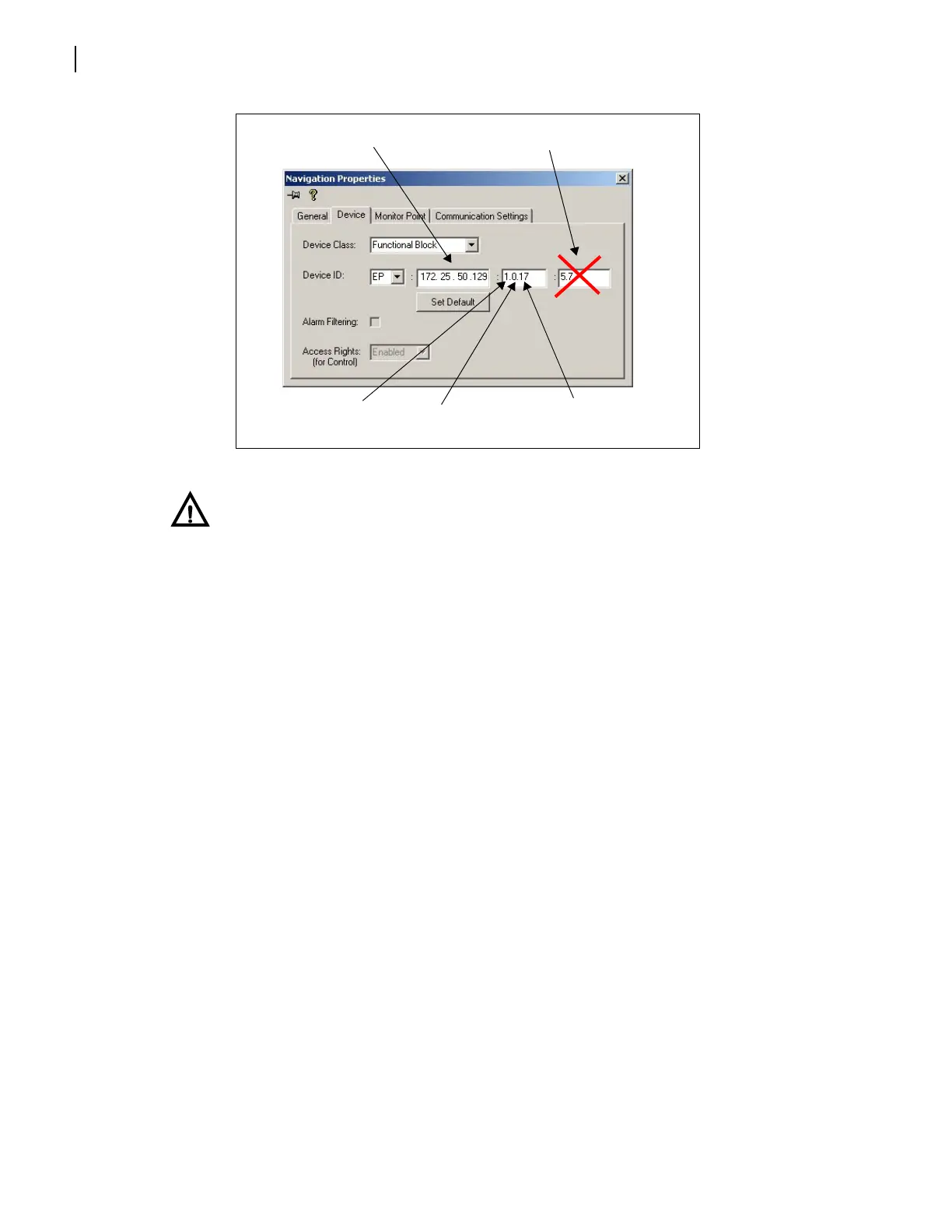

Figure 4-8 Navigation Properties Box
CAUTION
If you make changes in the last field (located above and to the right of the Set
Default button), you may lose your connection to the module. If this happens, you
will need to rediscover the module.
4 In the third field, enter
1.0.[slotnumber]
(where, for example, 1.0.5 would refer to the module in slot 5 of the frame number 0).
5 Close the window.
6 You can now continue your firmware upgrade as described in Upgrading Module
Firmware Using CCS Software beginning with step 3 on page 38.
Correcting a Firmware Upgrade with a 6800+ETH
If the upgrade fails, remove and then reapply power to the FR6822+QXFE host frame. After
a failed upgrade, the 6800+ETH should automatically go into a fail-safe mode where new
software can be loaded but other functions are not enabled. You may now try the upgrade
procedure again.
Forcing the 6800+ETH into Fail-Safe Mode
If, after following the steps above, the fail-safe procedure proves unsuccessful (the Active
indicator does not light up, or if the CCS application cannot communicate with the resource
module), follow these steps:
1 Remove the 6800+ETH module from the frame, following the steps in Removing a
Resource Module on page 15.
2 Locate the DIP switches on the 6800+ETH module.
3 Using a sharp object, set DIP switch 1 to the On (down) position.
4 Reinstall the 6800+ETH module in the frame, following the instructions in Installing a
Resource Module on page 15.
Do not make changes in
Enter frame IP address here
Frame number=0
Slot number=17
Must be set to 1
