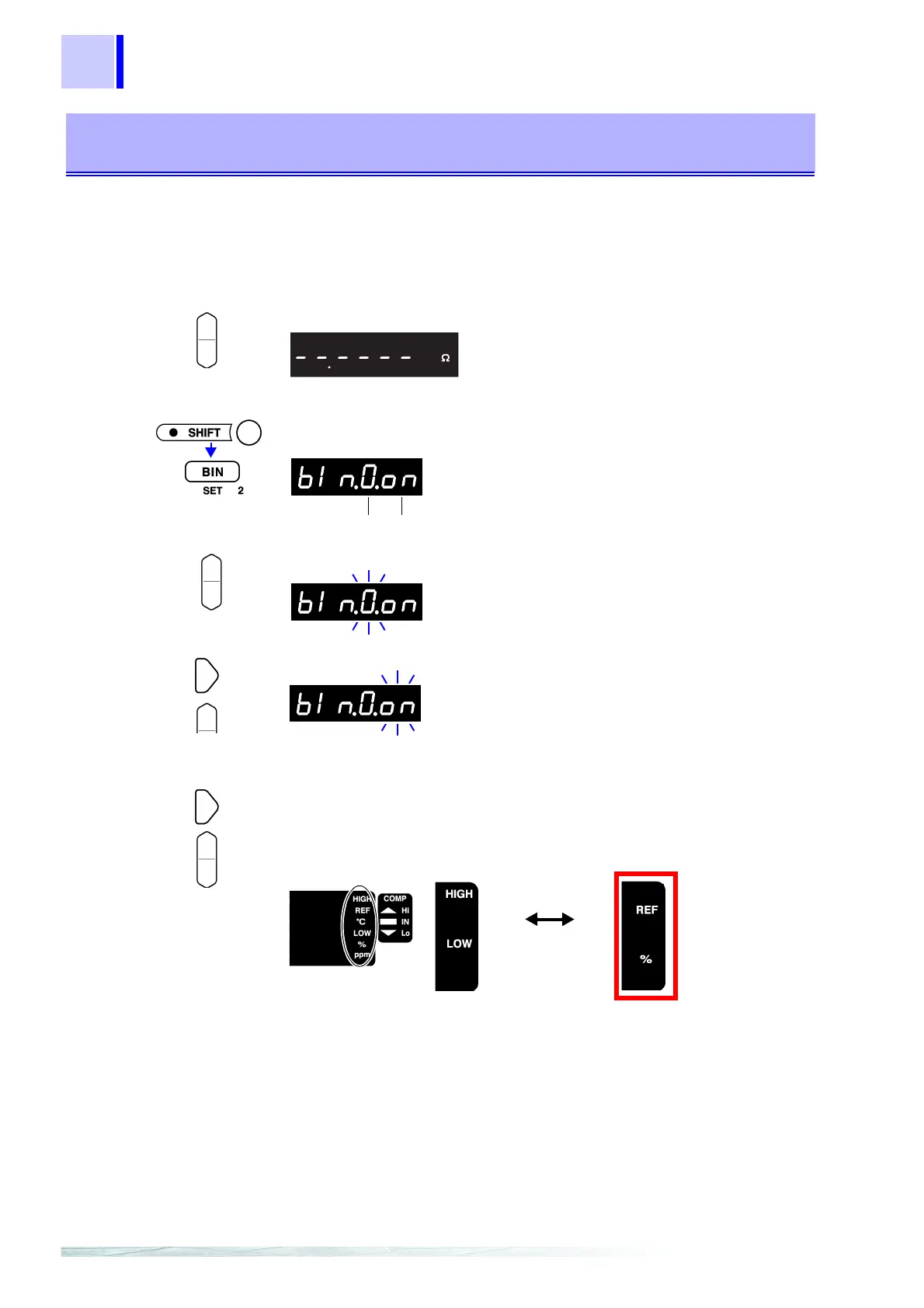

Judging measured values by setting a reference value and tolerance
(BIN Measurement Function)
Example: In the 20Ω range, set up two comparisons using a reference value and
tolerance for each (BIN0:Reference value 15 Ω/tolerance: 5%, BIN2:Reference value
15 Ω/tolerance: 2%).
1
(BIN off)
Confirm that the BIN Measurement function is OFF.
2
Select the appropriate range.
3
(SHIFT Lamp lit)
The Bin No. setting display appears. (BIN lit)
4
Select the BIN No. (BIN No. = 0 to 9)
5
Select whether this BIN No. is to be enabled or disabled.
- -
.......... BIN measurement for this BIN No. is disabled.
on ......... BIN measurement for this BIN No. is enabled.
6
Switches to comparison method selection for measurements.
Select the comparison method. Each key-press changes the displayed
selection.
(Main Display)
In this case, select the 20 Ω range.
(20.0000 Ω)
(Main Display)
BIN No. BIN No. enabled/disabled
(Main Display)
In this case, select 0.
(Main Display)
In this case, select on.
Compare with
reference value/
tolerance
Compare with
upper/low
thresholds
(Sub Display)
In this case, select REF/%.
