55

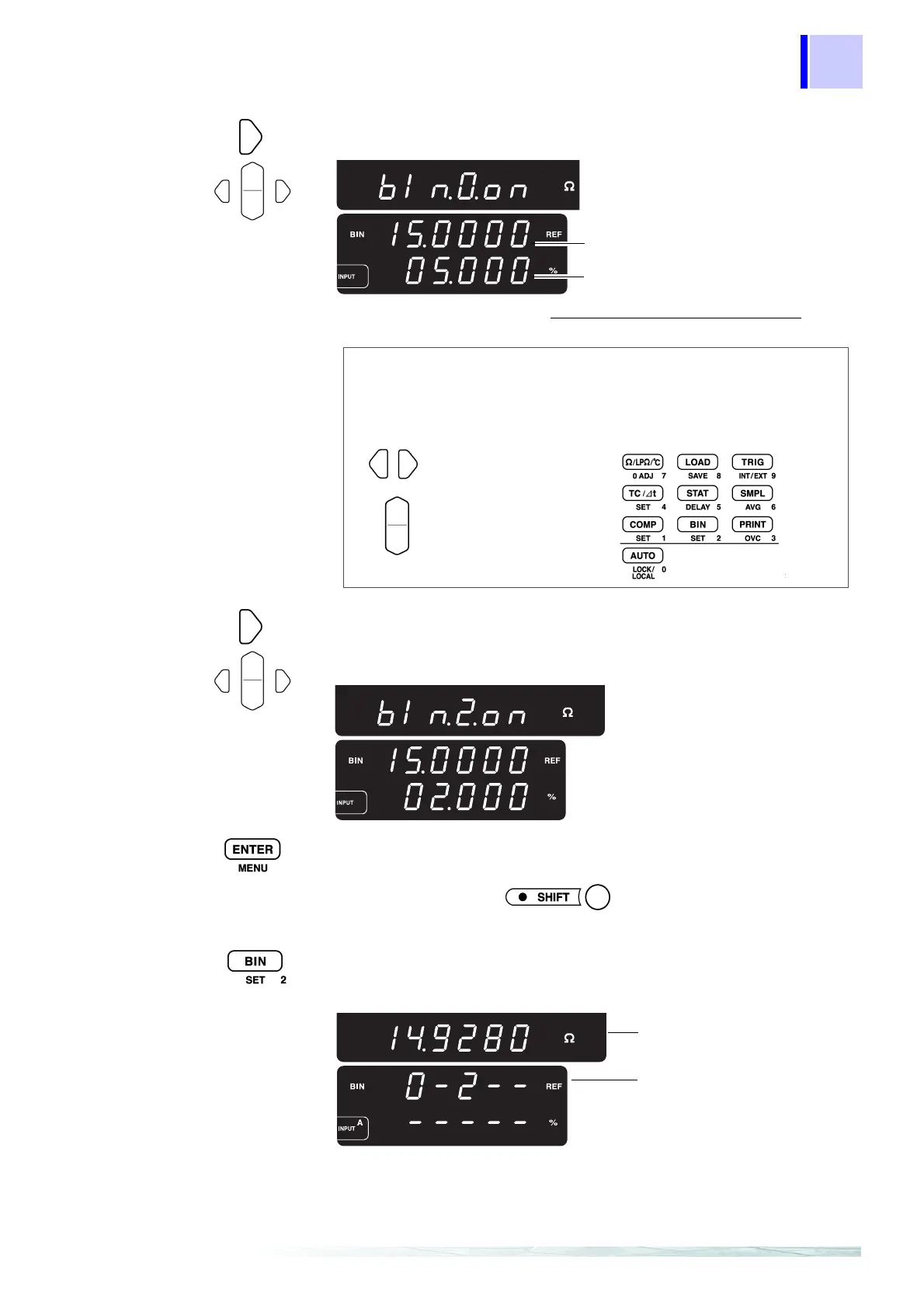

5.2 BIN Measurement Function
7
Switches to reference/tolerance (%) setting display. Set the reference
value and tolerance.
8
Returns to the Main Display of this BIN No.
Repeat Steps 3 to 7 for each BIN No.
In this case, select as follows.
9
Applies setting and returns to the Measurement display.
The BIN function is enabled.
To cancel the settings:
However, when changing the BIN number, the settings are retained.
10
Connect to a test object, and judge the measured value.
The absolute value appears on the Main Display, and the decision
result appears on the Sub Display.
Or ten-keys
(Sub Display)
(Main Display)
Reference value
Tolerance
In this case, set the
reference value to
15 Ω
and the tolerance to
5%.
Measured Resistance - Reference value
Reference value
x 100
Select a digit
Select numerical value
Select a digit to change by moving
the blinking location, then select the
new numerical value.
Using the RANGE keys:
Using the ten-keys:
Press the numeric keys
corresponding to the digits to be
entered.
In this case, select BIN2 as
shown at the left.
BIN2
Reference value: 15
Ω
Tolerance: 2%
Absolute value
Decision result
(BIN0: in range, BIN2: in range)
❖ Interpreting decision
results:(Page 56)
To Next Page
