5.2 BIN Measurement Function
56

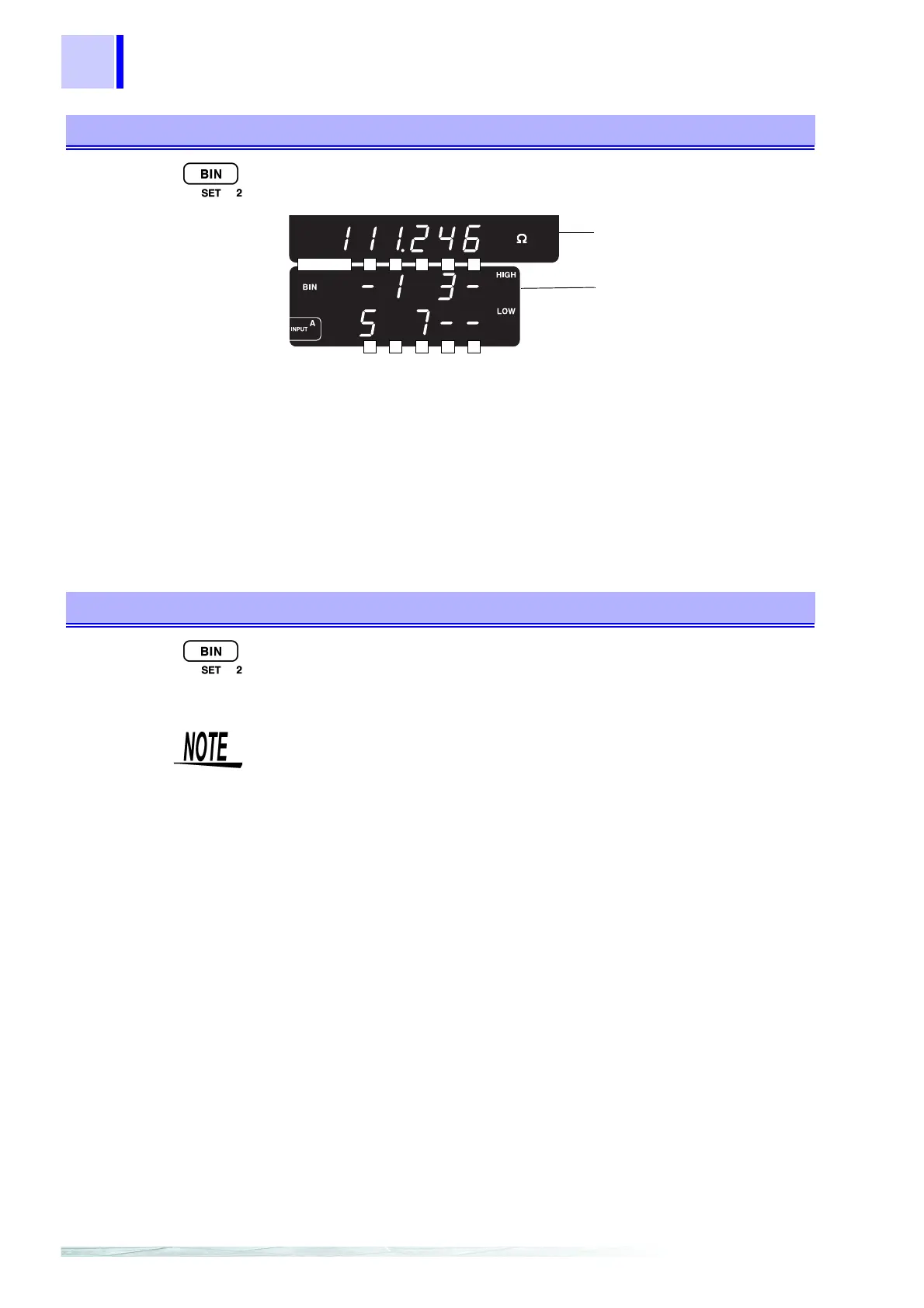

Executing BIN Measurements
(BIN lit)
The BIN measurement function is enabled. Pressing the BIN key
executes decision according to the setting conditions.
Measured value
Decision results of each BIN.
PASS: BIN Nos. 1, 3, 5, 7
FAIL: BIN Nos. 2, 6
Disabled: BIN Nos. 0, 4, 8, 9
• Numerals (0 to 9): Numbers of the BINs that PASS
(Measured value is within the range of the conditions set for the
displayed BIN No.)
• No Display: FAIL
(Measured value is outside of the range of the conditions set for the non-
displayed BIN No.)
•
−: Disabled (no decision)
(Displayed when the BIN No. setting is OFF on the Main Display)
0 1 2 3 4BIN No.
5 6 7 8 9
Disabling the BIN Measurement function
(BIN off)
Disables the BIN Measurement function.
• BIN and Comparator measurements cannot be performed
simultaneously.
• When BCD output is enabled, BIN measurement results cannot be
output as External I/O signals.
❖ BIN No. Output/BCD Signal Selection (Page 82)
• To avoid operating errors, only the following keys are enabled
when the BIN function is in use:
SAVE (SHIFT+LOAD), LOAD, STAT, TRIG (for external trigger),
and PRINT (when a printer is connected)
❖ 5.15 Valid Functions for Each State (Page 75)
• If power is turned off while the setting display is active, settings are
ignored, and revert to their former values. If you want to apply the
displayed settings, press the ENTER key.
• If auto-ranging is on when BIN measurement is enabled, auto-
ranging is disabled.
• No decision occurs in the event of a measurement fault.
