6.5 Settings on the Channel Screen (RMS)
______________________________________________________________
Flashing cursor
REC
Records waveforms in Recorder function.
RMS
Records waveforms in RMS function.
6.5 Settings on the Channel Screen (RMS)
6.5.1 Selecting the Recorder Function or RMS
Function
This setting selects either waveform recording or RMS
recording. From the RMS Recorder Channel Screen,
recording of waveform data for each channel can be set as
standard recording or RMS recording.
This setting is valid only if made before the start of
measurement. Changing the recording type after
measurement has finished results in an invalid waveform.
Procedure

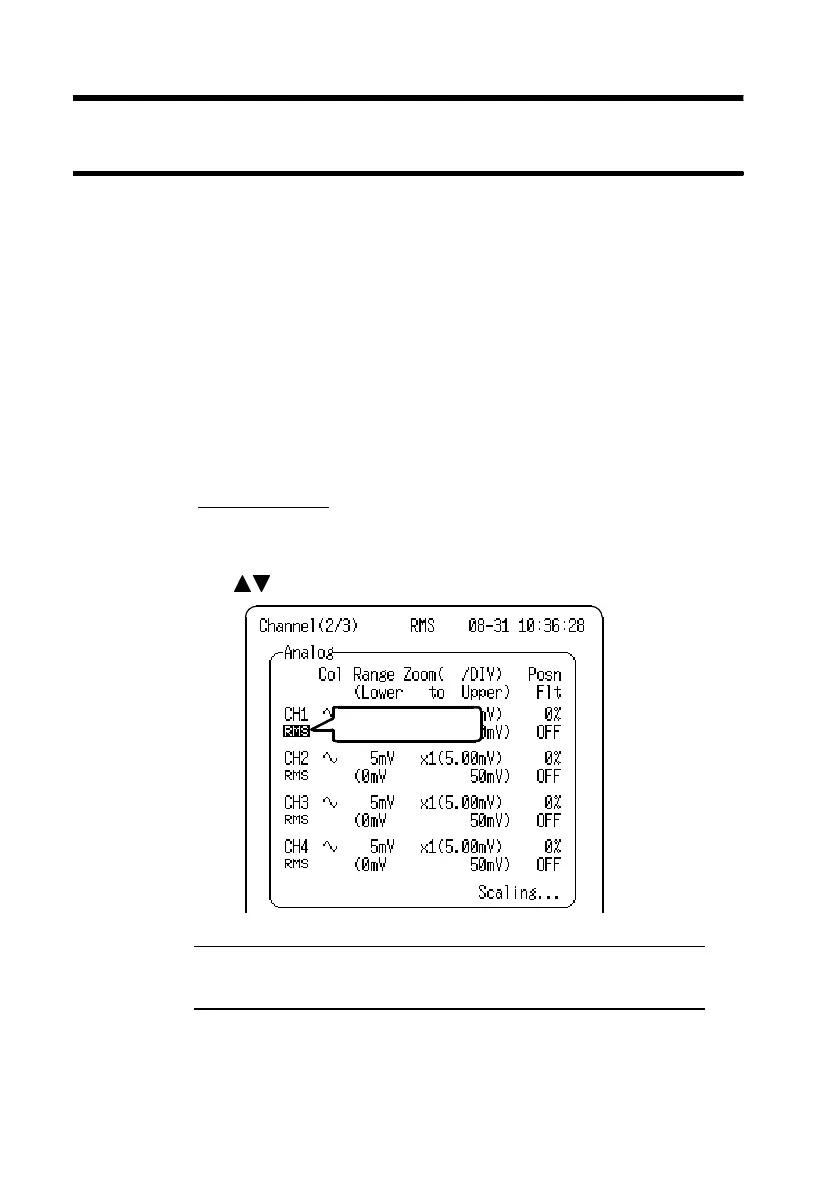

Channel Screen
1. Press the
SET
button to display the Channel Screen.
2. Move the flashing cursor to the channel to be set and use
the
buttons to make a setting.
