177
_____________________________________________________________________
9.1 Using the A/B Cursors
______________________________________________________________
12 34
OFF
Disable A/B cursors
Line cursor (vertical) (t and 1/t are displayed)
Line cursor (horizontal) (v is displayed)
+
Trace cursor (the point where the cursor crosses the
waveform)
A
Use the cursor A only
A-B
Move the cursor A only
A-
B
Move the cursor B only
A-B
Move simultaneously both cursors A and B

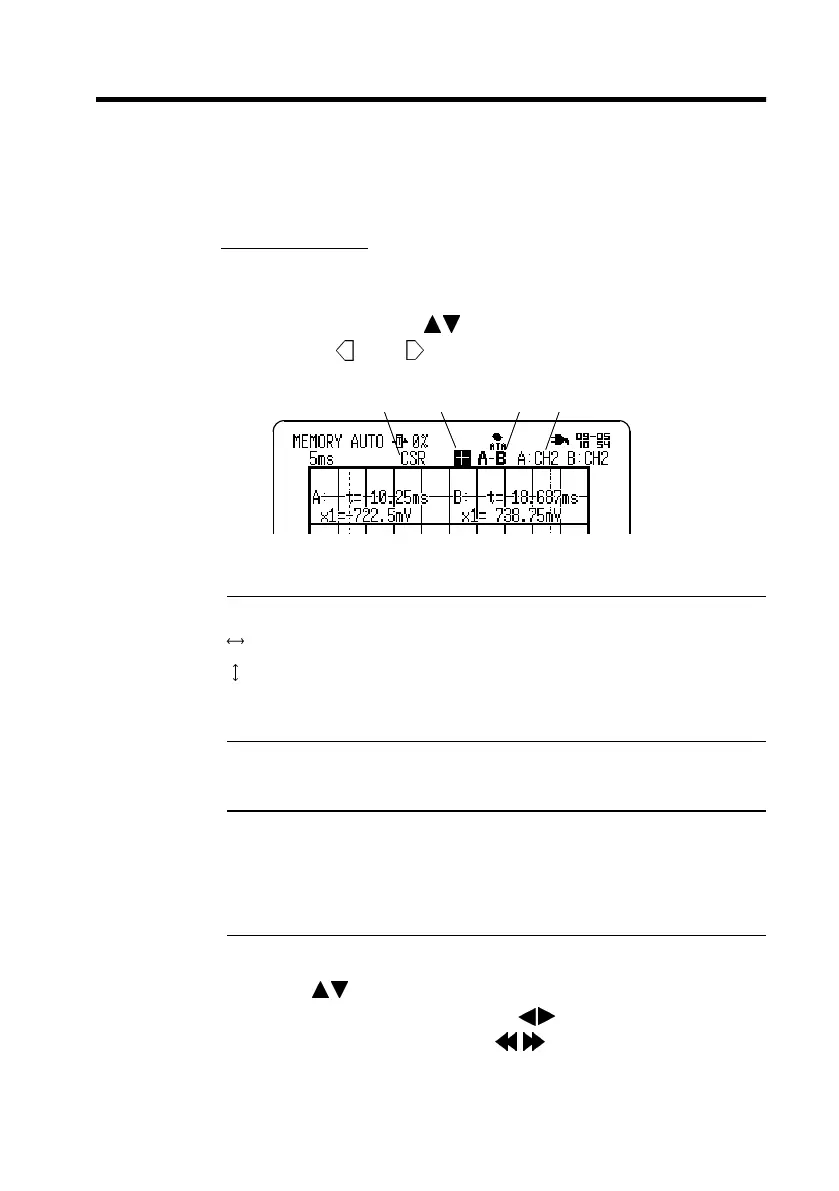

9.1.4 Using the Cursors on the X-Y Screen
The cursor can be used on the X-Y Screen. Partial X-Y
plotting enables operation of the A/B cursors.
Procedure
Waveform Screen(X-Y)
1. Press the
DISP
button to display the Waveform Screen.
2. When position 1 shown in the figure below is selected to
SCRL
(scroll), use the buttons to set to
CSR
(cursor).
Pressing the
and buttons simultaneously also changes
setting.
3. Move the flashing cursor to position 2 and select the type
of cursor.
4. Move the flashing cursor to position 3 and select the cursor
to be moved.
5. Move the flashing cursor to position 4 and select channel
using the buttons.
Move the A/B cursors using the
scrolling buttons to
view the display. Pressing the
buttons moves the
cursors faster.
To Next Page
