4.3 Setting Items
______________________________________________________________

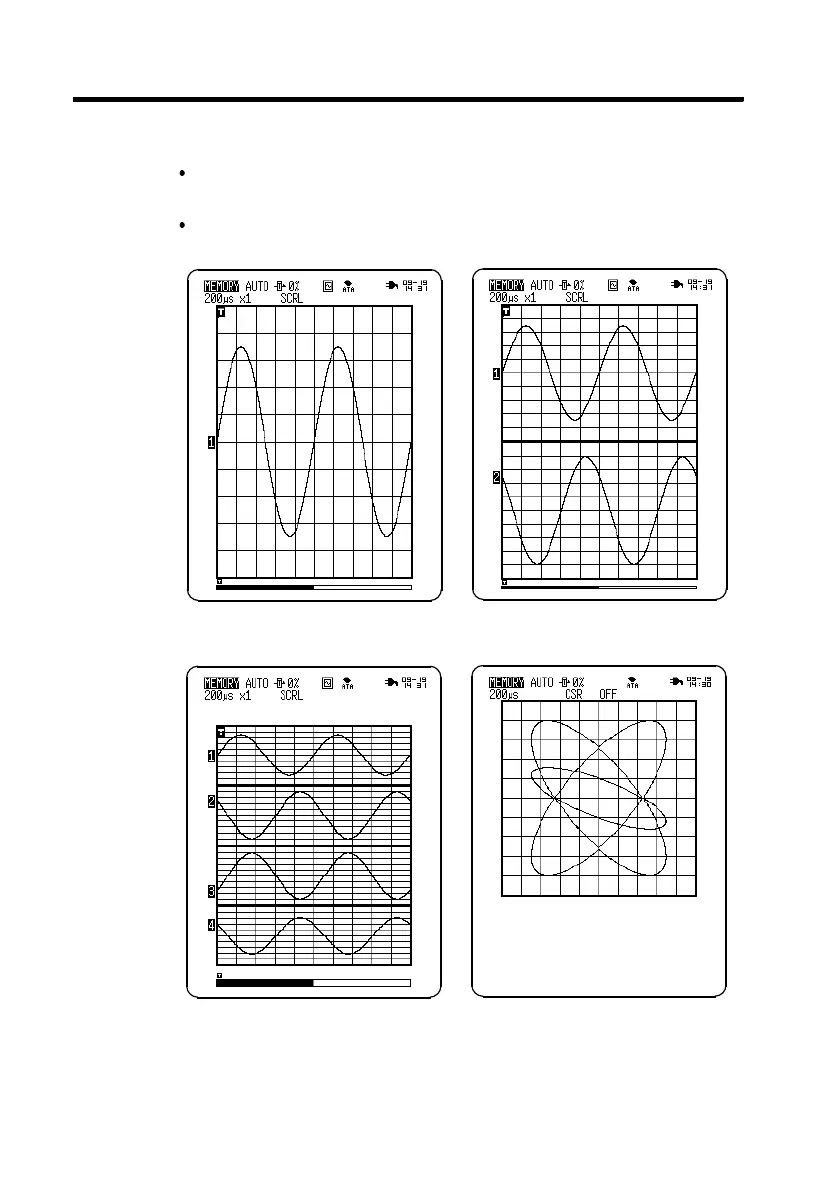

Single Display
Display and record as one graph.
Dual Display
Display and record as two graph
.
Quad Display
Display and record as four graph.
X-Y Display
(Dot) Linear interpolation
(smoothing) is not performed.
(Line) Linear interpolation is
performed.
4.3.4 Setting the Display Layout
The display layout of input waveforms can be set for the
Waveform Screen and for printing.
The layouts Single, Dual, Quad, X-Y (Dot/Line) are
available.
