Hioki 8807-01 - Appendix 3.1 Starting the Waveform Viewer

APPENDIX 11
______________________________________________________________________
Appendix 3 WaveViewer (Wv)
________________________________________________________________
Appendix 3.1 Starting the Waveform Viewer
In the Windows Start menu, select [
Programs
]-[
HIOKI
]-
[
Wv
]. This starts the waveform viewer application.
To close the waveform viewer application, in the [
File
]
menu select [
Exit
]. You can also click the Close button at
the top right corner of the window.

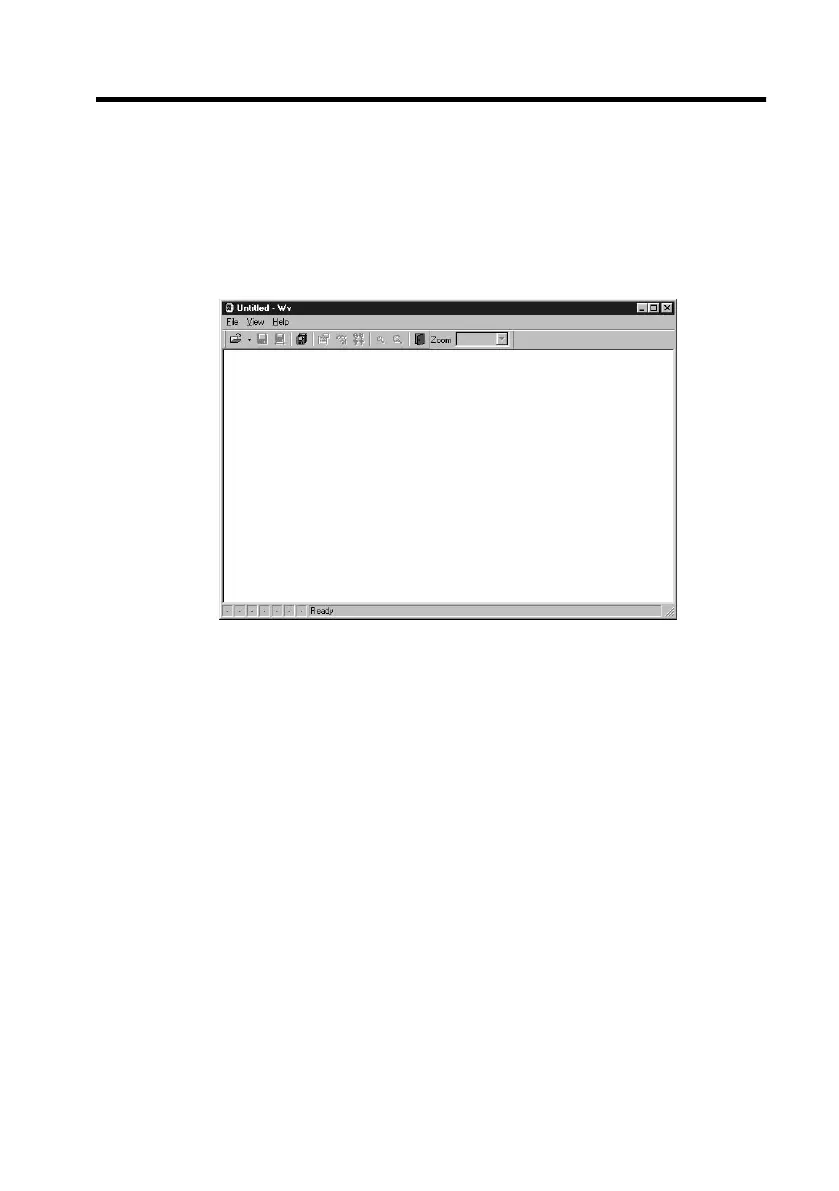

Toolbar
Click the icons in the toolbar for the respective functions.
From the left, these are: [
Open
], [
Save All
], [
Save Between
Cursors
], [
Batch Conversion
], [
Properties
], [
Wave Control
Panel
], [
Trace
], [
Zoom Out
], [
Zoom In
], and [
Exit
].
For details of these operations, see the descriptions of the
corresponding menu items.
You can also select the magnification factor for the time
axis by selecting on the toolbar.
Status bar
The status bar shows, from the left, the model name,
function, recording length, time axis, trigger time, pre-
trigger, and judgement result.
Version information
When making inquiries, the version number will be
required.
To check the software version number, in the [
Help
] menu
select [
About Wv
].
