5.1 Observing Waveforms
139
Chapter 5 Waveform Analysis
5

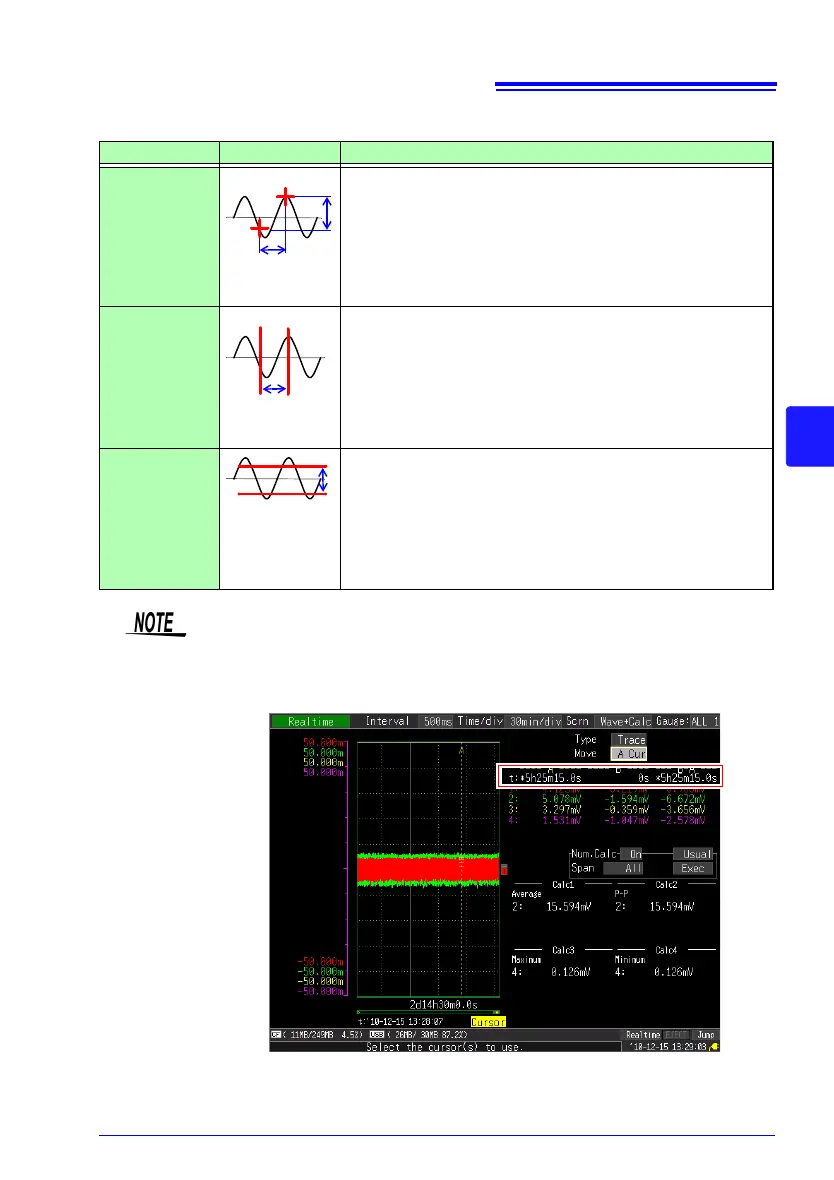

About Cursor Values
Cursor Type Example Cursor Value
Trace
Cursors
Displays the time and measurement values at the A/B cur-
sors, or the time and measurement differences between the
A/B cursors.
Displays the intersections (trace points) of cursors and wave-
forms. (the intersections of waveform traces of all channels)
These cursors are used to specify the range for saving or nu-
merical calculation.
Vertical
Cursors
Displays the time and frequency values at the A/B cursors, or
the time and frequency differences between the A/B cursors.
During X-Y display, the measurement value at cursor A or B
of the vertical axis and the difference of the measurement val-
ues between cursors A and B are displayed.
These cursors are used to specify the range for saving or nu-
merical calculation.
Horizontal
Cursors
Displays the measurement values at the A and B cursors for
the selected channel(s), or the difference between A/B cursor
values.
During X-Y display, the measurement value at cursor A or B
of the vertical axis and the difference of the measurement val-
ues between cursors A and B are displayed.
A/B cursors can be enabled for any channel.
A
B
B-A
B-A
AB
B-A
A
B
B-A
• The cursors can also be moved in the [Wave+Calc] display screen.
• If the number of digits of the time value displayed when using the
cursors in the [Wave+Calc] display screen exceeds 11, the time
value is indicated as "
∗ + 10 digits."
