Hioki MEMORY HiCORDER MR8880 - Installing the Alkaline Battery Box and Replacing the Batteries

2.1 Using the Alkaline Battery Box (Accessory) or Battery Pack (Option)
33
2
Chapter 2 Measurement Preparations
To be required: One Phillips screwdriver (No.2), eight LR6 alkaline batteries
Installing the Alkaline Battery Box and Replacing the Batteries
1 Turn off the instrument.
Disconnect the AC adapter and cables if they
are connected.

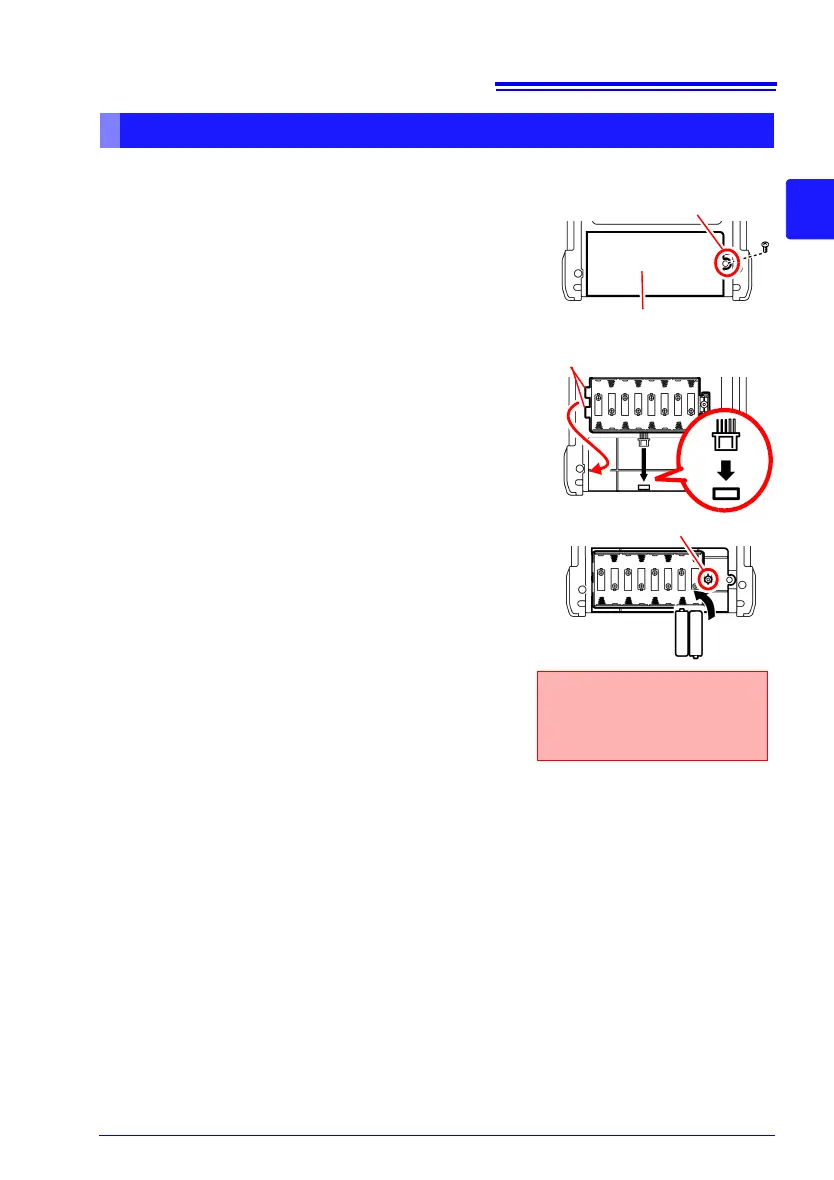

2 Remove the screw from the back of the
instrument, and then remove the battery
compartment cover.
3 Connect the alkaline battery box to the
connector.
Slide it toward the top the instrument until you
hear a clicking sound.
4 Insert the alkaline battery box into the
compartment.
5 Firmly fix the alkaline battery box in
place with the screw.
6 Insert eight new LR6 alkaline batteries
into the alkaline battery box.
7 Attach the battery compartment cover,
and firmly fix it in place with the screw.
Make sure that the cables are not pinched.
3
Do not mix new and old or
different types of dry cell
batteries.
Battery compartment cover
6
2
Screw
Screw
5
4
Insert the tabs in the direction
of the arrow.
