Hioki MEMORY HiCORDER MR8880 User Manual

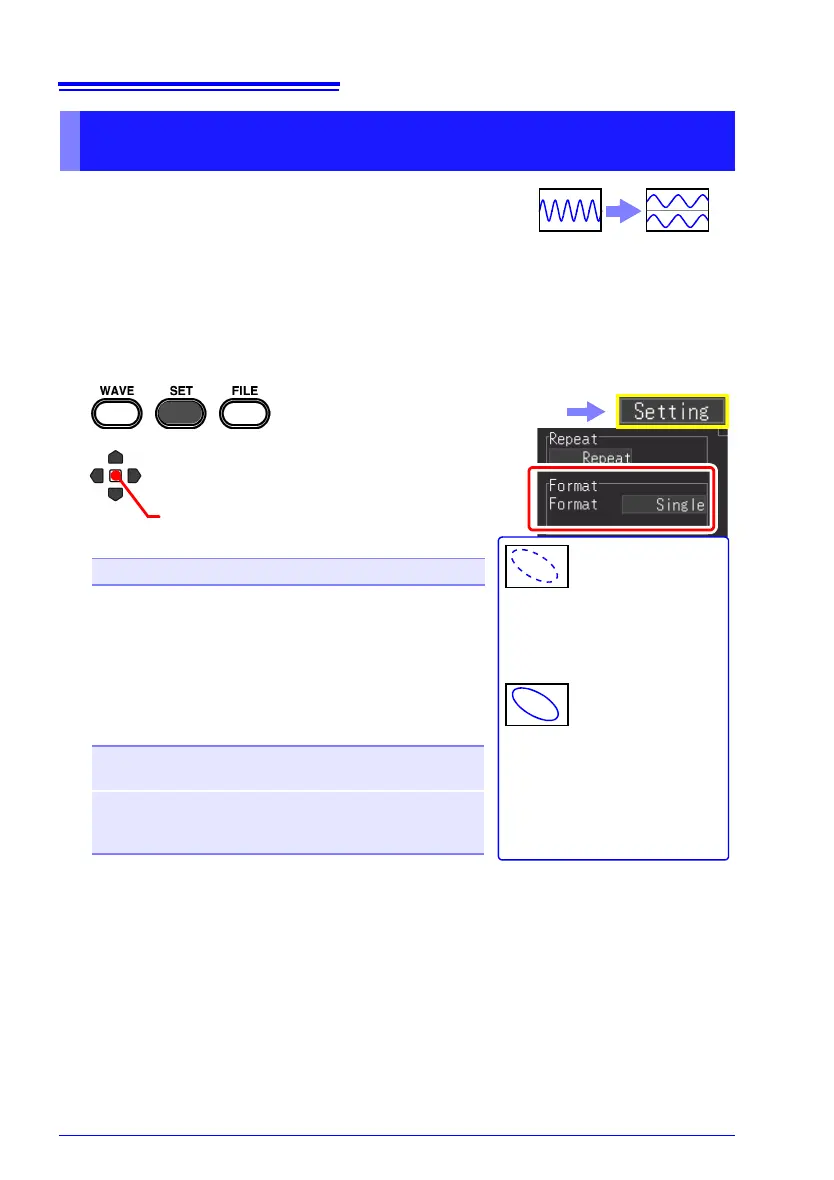

4.6 Setting the Screen Display
94
You can split the screen into multiple graphs, and then
assign the waveform to display in each graph. This set-
ting can also be changed after the waveform has been
acquired. The setting items differ depending on the
function.
When High-speed Function: Screen Splitting and XY Synthesis
You can split the screen, and synthesize waveforms.
Setting the Display Format (Screen Splitting/Synthesis/Graph
Assignment)
Single
Dual
1
2
Select from the setting options of
[Format].
Setting options (∗. default setting)
Set each screen or X-Y assignment in the [CH] or [All
CH ] screen.
(When [X-Y Line] or [X-Y Dots] is selected)
Select from the setting options of [Com-
boArea].
Setting options (∗. default setting)
Single ∗, Dual, Quad, X-Y Line, X-Y Dots
All∗
Use the whole range for the composite
waveform.
A-B Use the range specified by the cursors.
Procedure to specify a range with A/B cur-
sors:(p. 140)
X-Y Line
Linear interpolation is not per-
formed.
The input signal (sampling data)
is displayed and recorded as is.
X-Y Dots
Linear interpolation is per-
formed.
The display is easier to see, but
the display speed is slow com-
pared with dot display.
(Open/confirm the setting information.)
Select the [Setting] screen.
