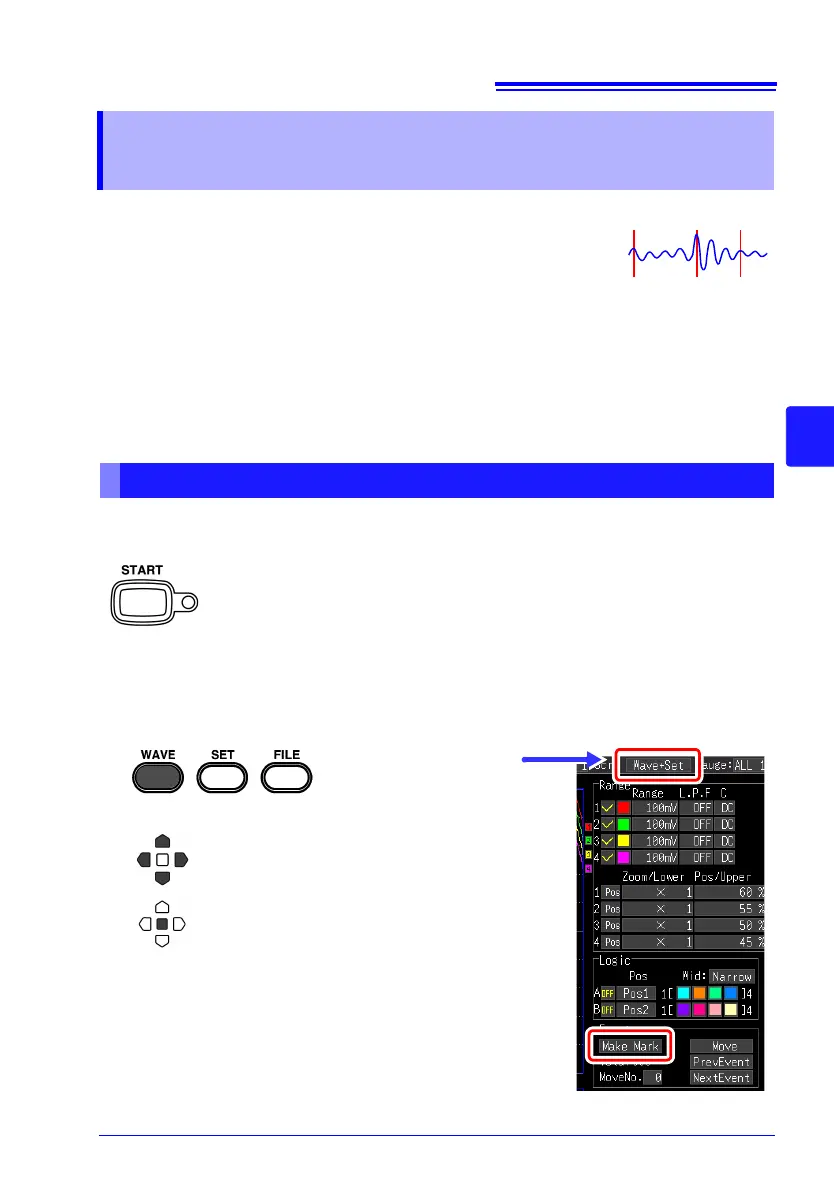

5.2 Marking Waveforms and Searching Marks (Search Function)
141
Chapter 5 Waveform Analysis
5
You can insert up to 100 event marks at any point while measur-
ing, to help find them later.
See: "Searching Event Marks" (p. 143)
Event marks can be applied by the following methods.
• Method 1. Press the START key while measuring (see below).
• Method 2. Select [Make Mark] in the event setting display of the Waveform screen
([Wave+Set] display) (see below).
• Method 3. Input a signal from the EXT.TRIG terminal (external trigger input)
(p. 142).
Insert a mark while viewing the data during measurement in the Waveform screen.
Method 1:
Method 2:
5.2 Marking Waveforms and Searching Marks
(Search Function)
1 23
Inserting Event Marks While Viewing Waveforms
Press the START key when you want to insert a mark.
When the START key is pressed, a mark is inserted in the waveform.
Event marks are numbered in the sequence they are inserted.
1
Select the [Wave+Set]
display.
Move to [Make Mark].
Press to insert an event mark.
Event numbers appear on the waveform
displayed when you select [Make Mark].
2
Select [Make Mark] in the [Wave+Set] display screen of the Waveform
screen.
3
